Steering Wheel Controls System

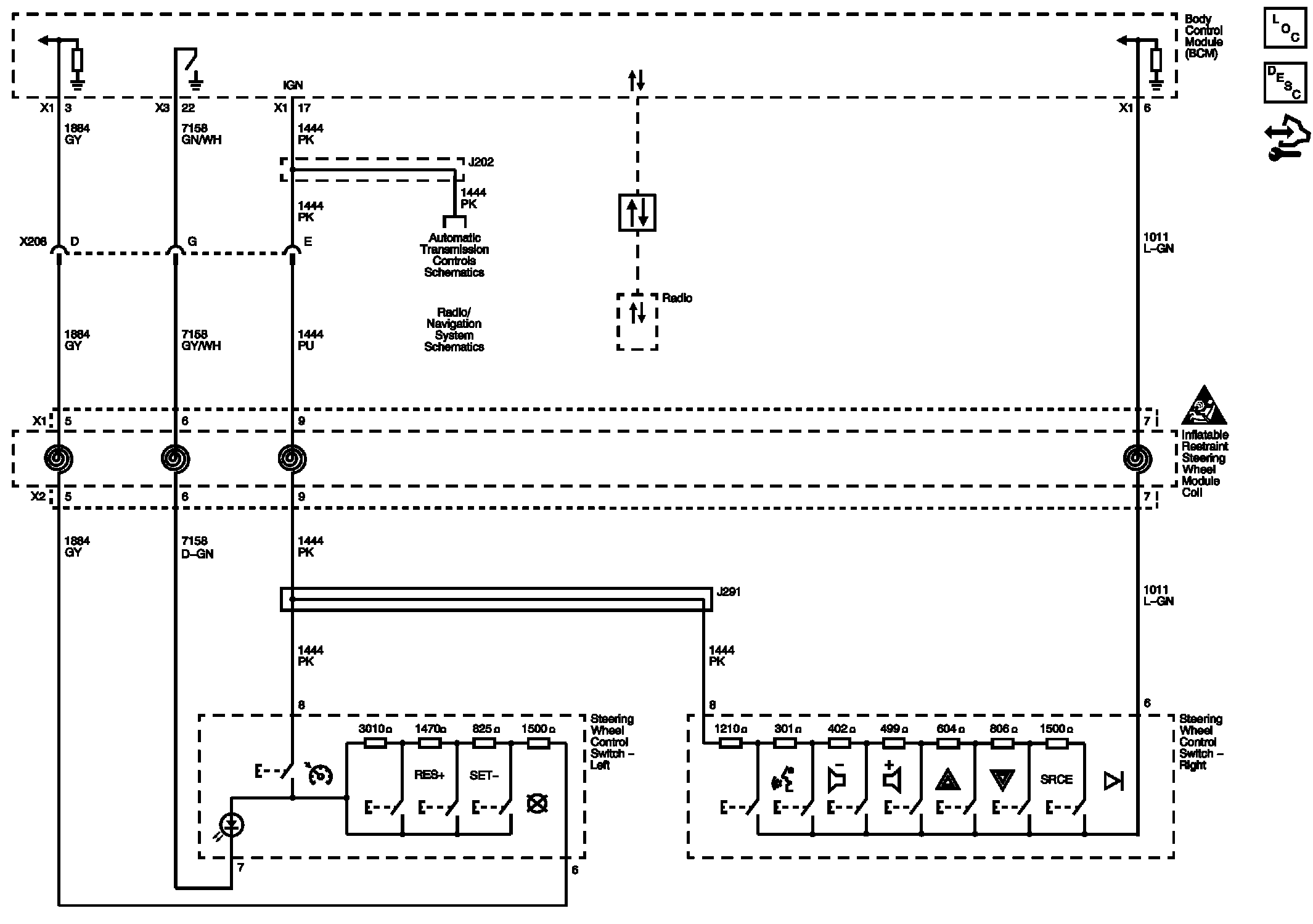

Fig 1: Steering Wheel Controls System Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
