Rear Seat Belt: Components

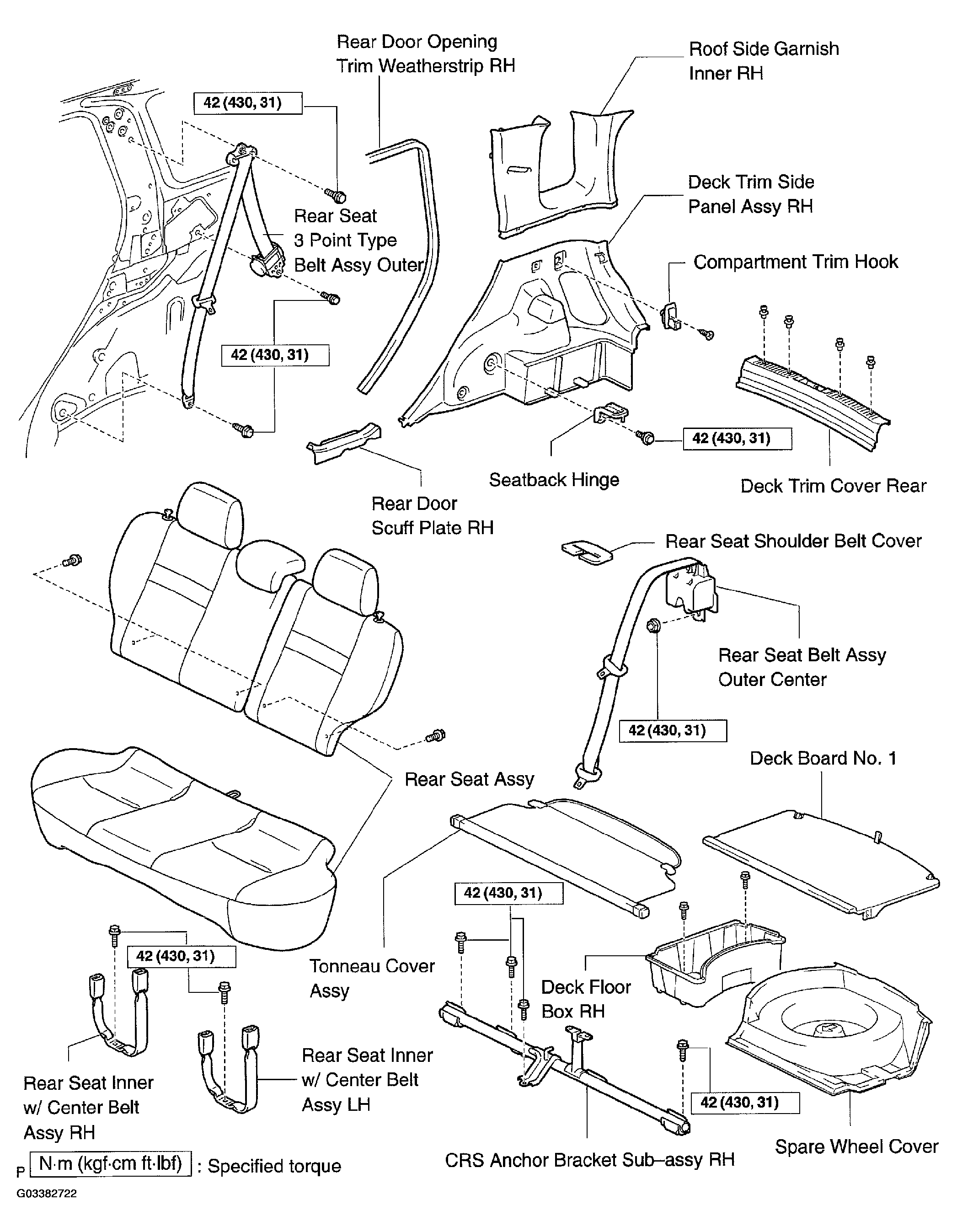

Fig 1: Rear Seat Belt Components
G03382722Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
