System Diagram

Part 1 Of 2:




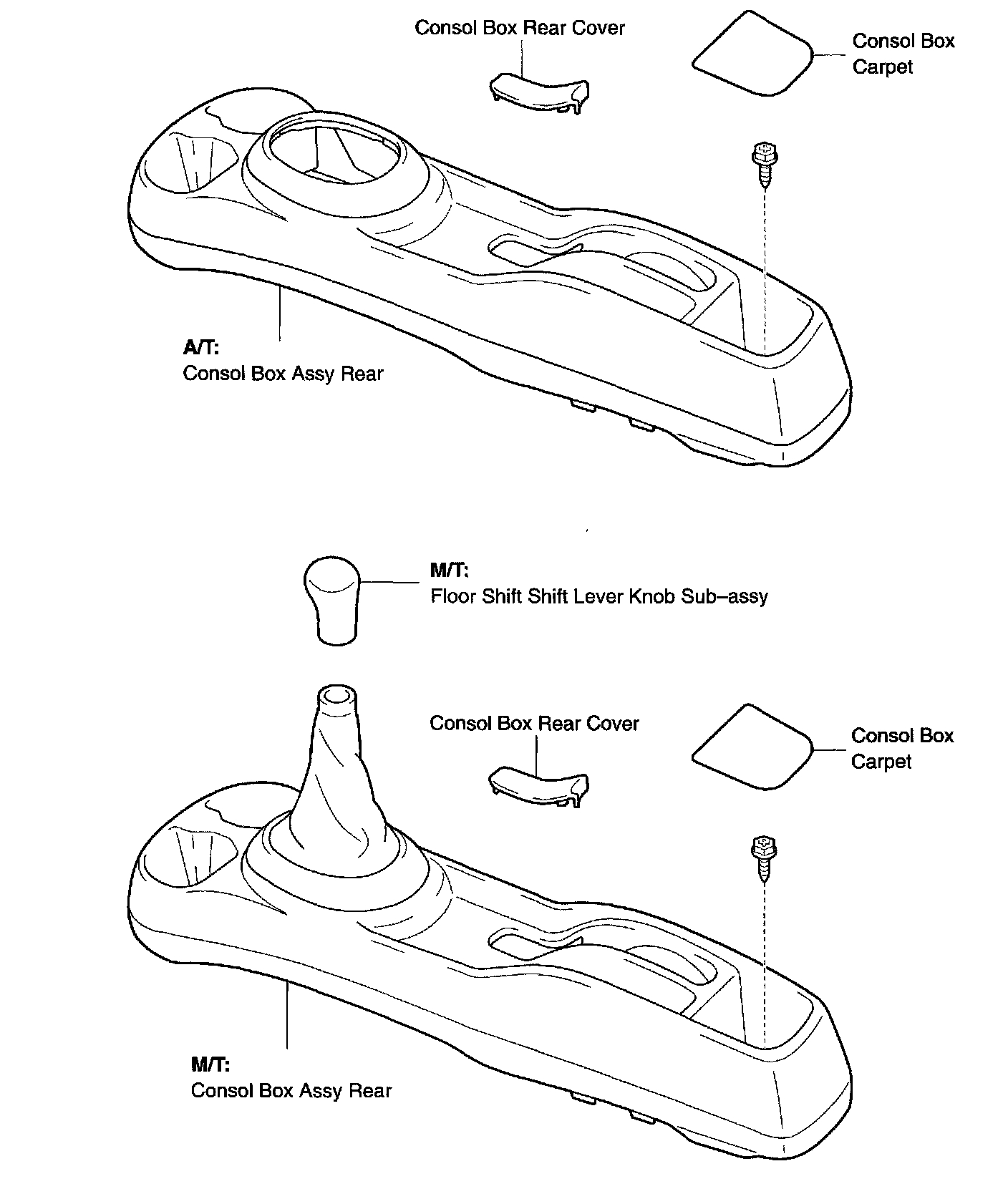

Part 2 Of 2:

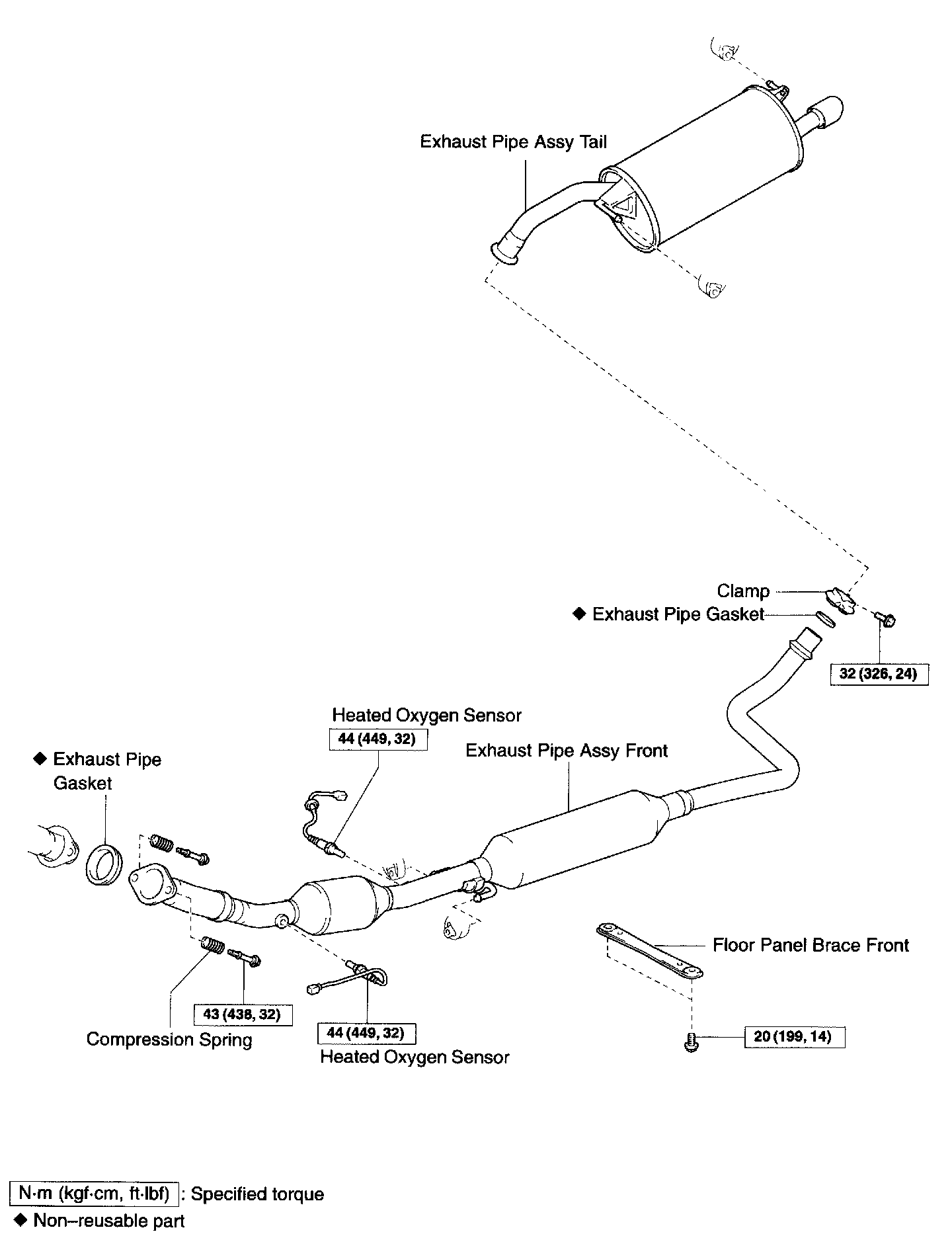

EXHAUST PIPE ASSY REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS
