Control Module HVAC: Service and Repair

AIR CONDITIONING AMPLIFIER ASSY

REPLACEMENT
1. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.2 (W/RADIO)
2. REMOVE INSTRUMENT CLUSTER FINISH PANEL GARNISH NO.1 (W/RADIO)
3. REMOVE HEATER CONTROL KNOB (W/RADIO)
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB ASSY CTR (W/RADIO)
5. REMOVE RADIO RECEIVER ASSY (W/RADIO)

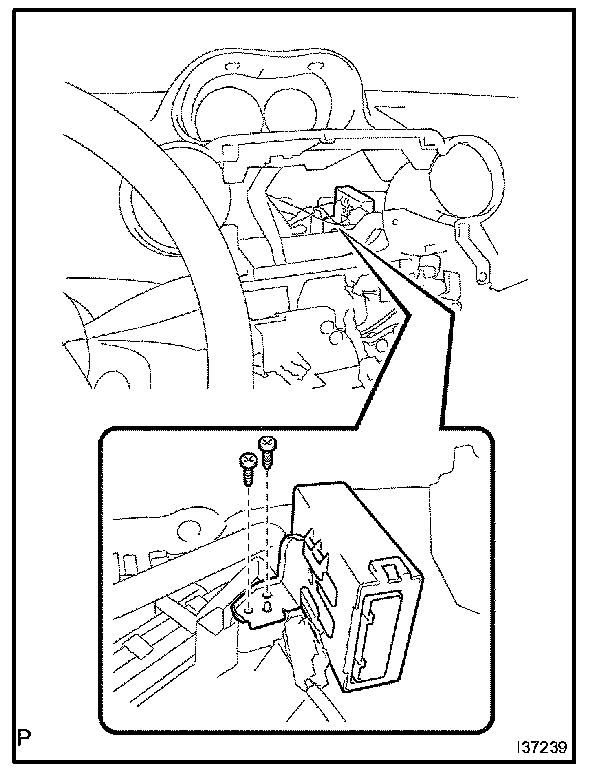

6. REMOVE AIR CONDITIONING AMPLIFIER ASSY
a. Disconnect the connector.
b. Remove the 2 screws and air conditioning amplifier assy.
