Control Module: Testing and Inspection

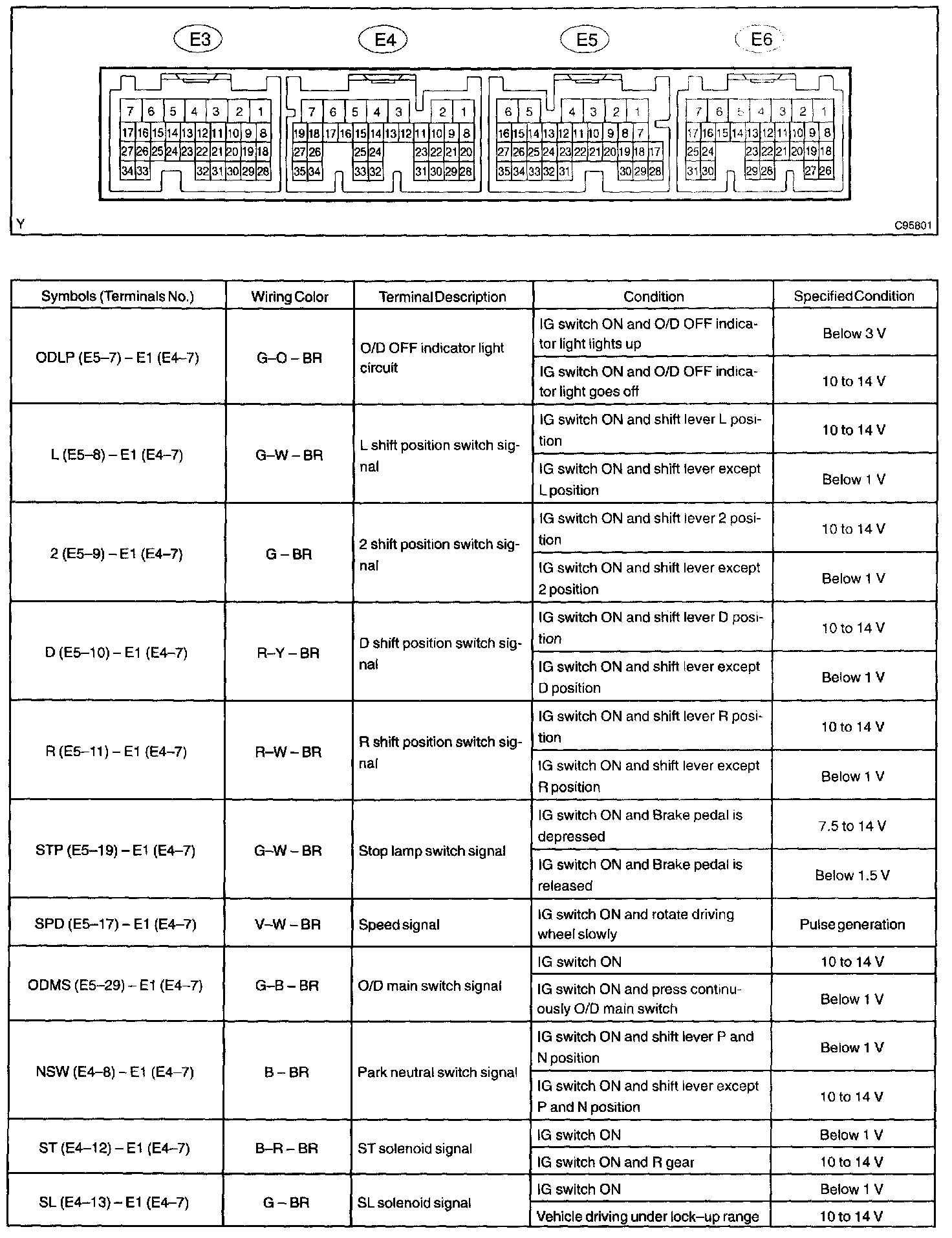

Terminals Of ECM/Pinout Values Part 1:
Terminals Of ECM/Pinout Values Part 2:
