Chain Sub-ASSY: Components

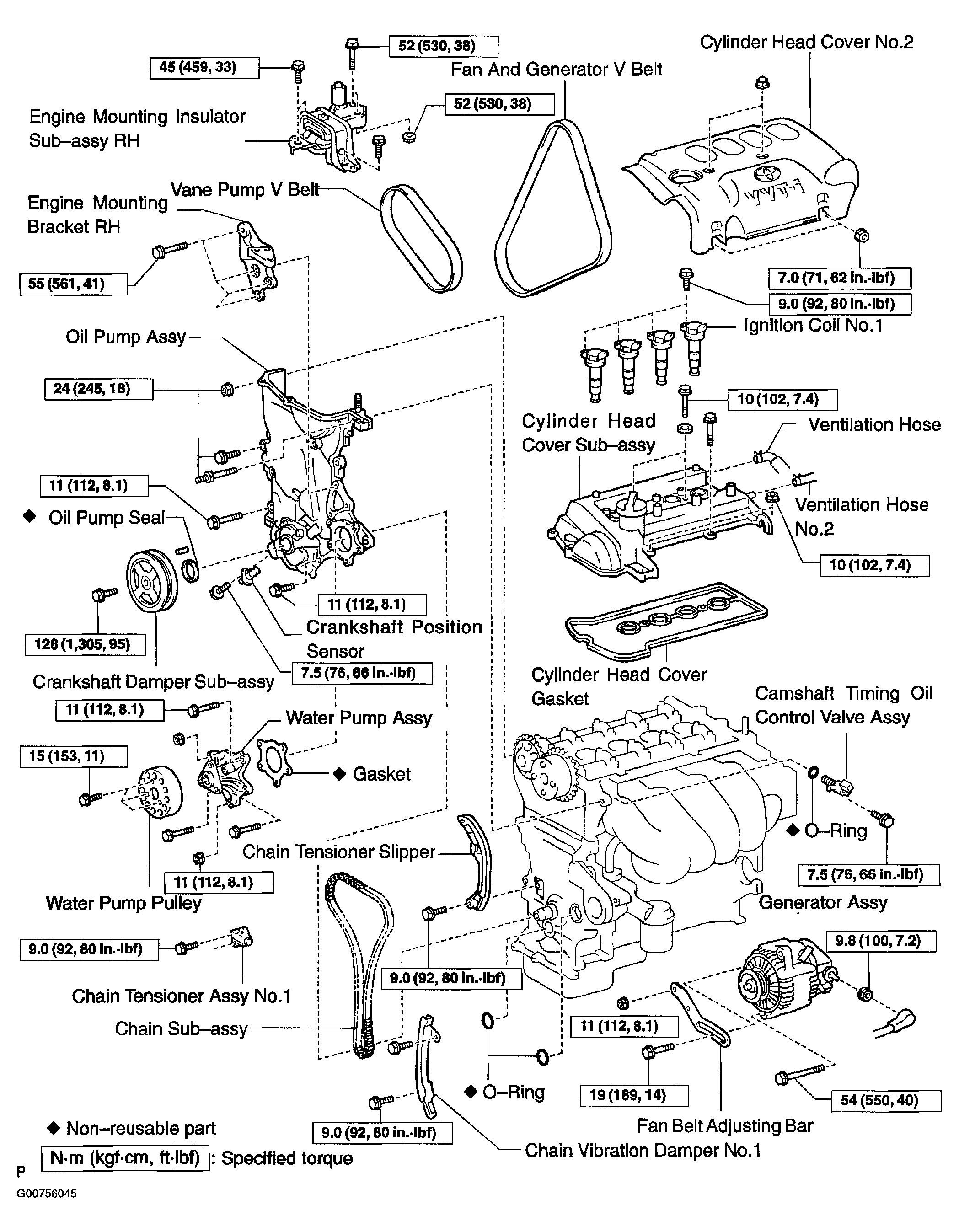

Fig 1: Locating Components Of Chain Sub-Assembly

G00756045

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
