Engine Control System - Diagnosis: Location

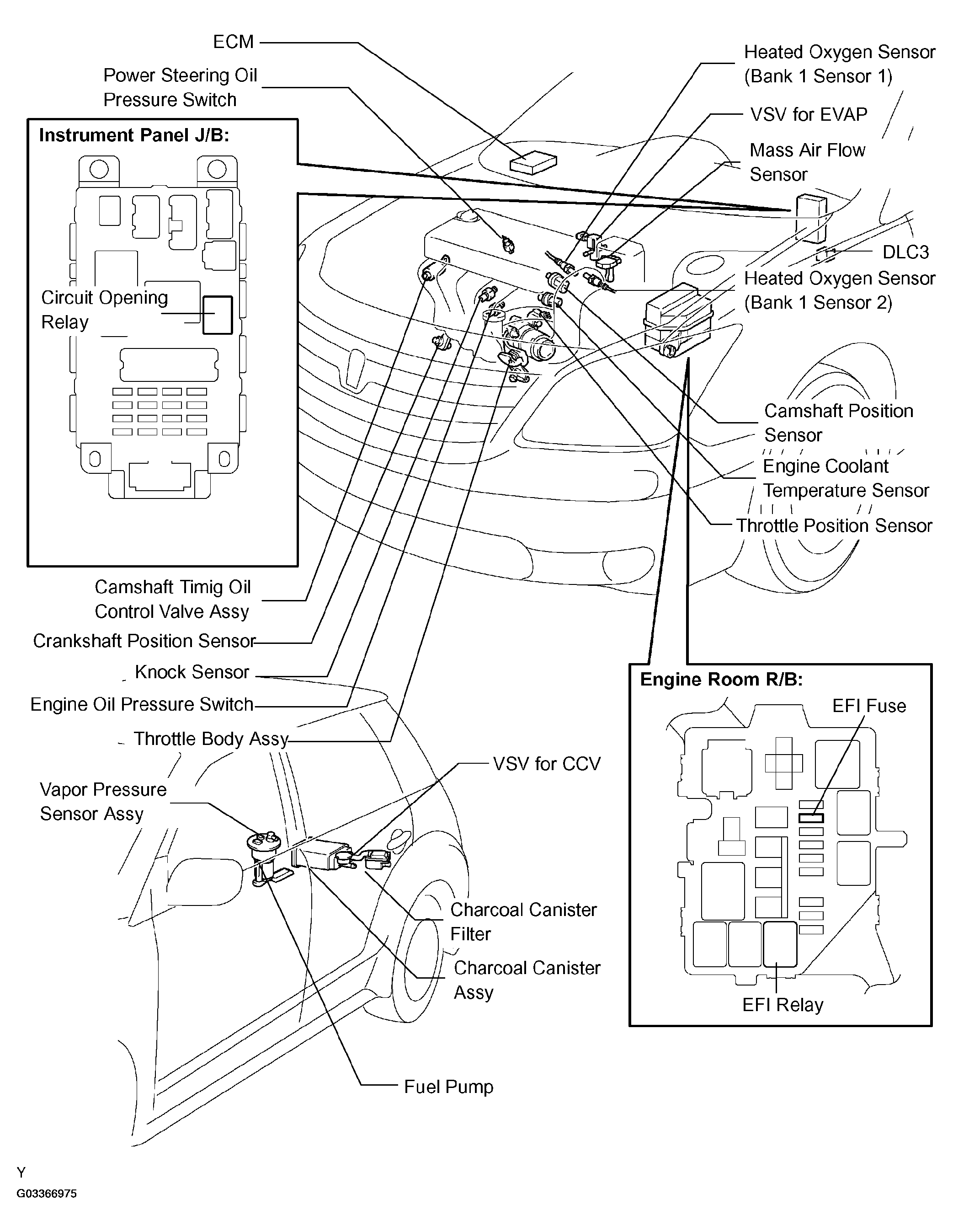

Fig 1: Locating SFI System Components
G03366975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
