Display Diagnosis
WARNING: This page is about a different car, the 2006 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN MOTOR CO., U.S.A.

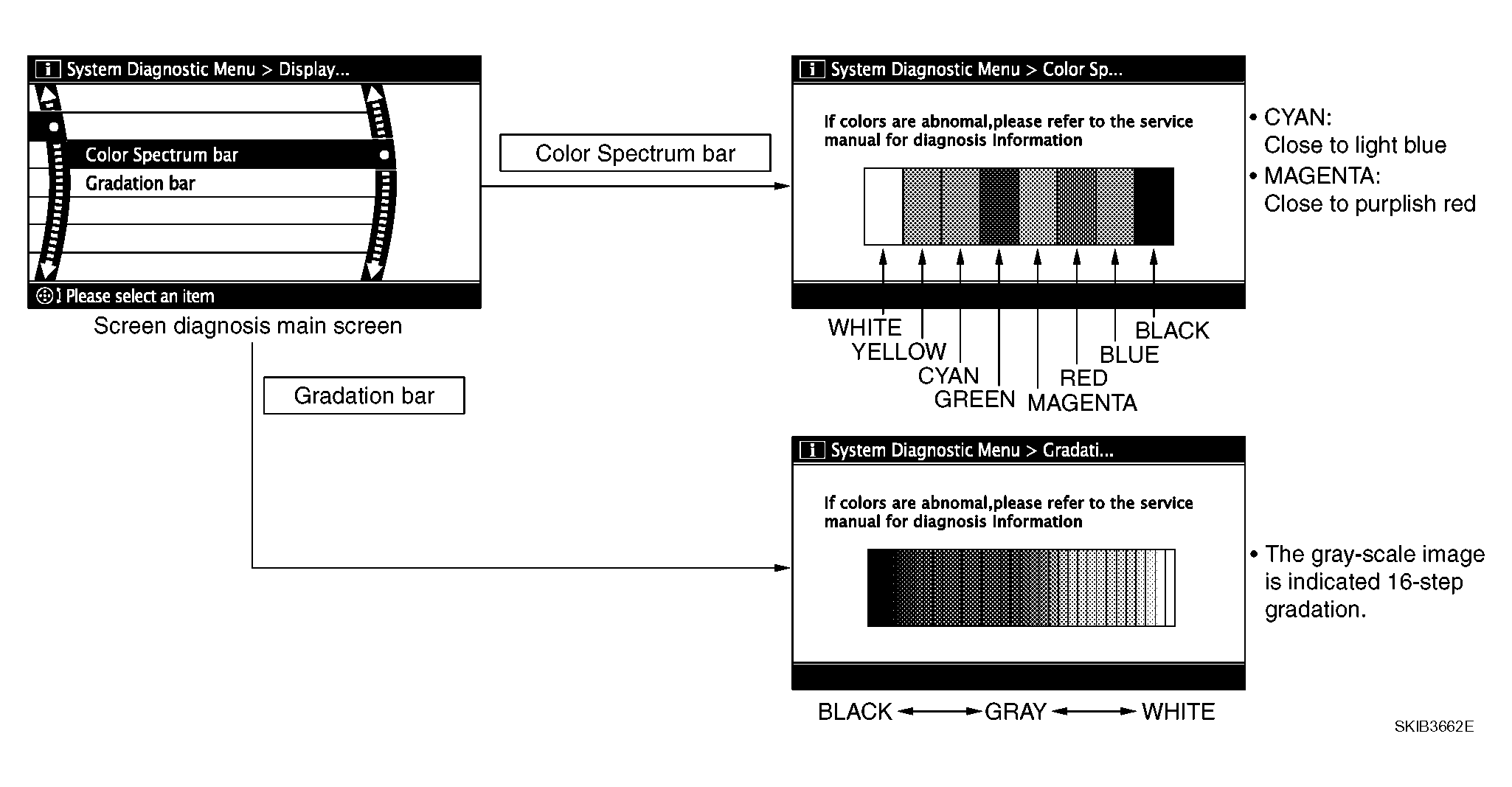

If RGB signal is malfunctioning, the tint of the color bar display is as follows.
R (red) signal error: Light blue (Cyan) tint
G (green) signal error: Purple (Magenta) tint
B (blue) signal error: Yellow tint
