Base Ignition Timing Specifications
>>
Base Ignition Timing Specifications
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

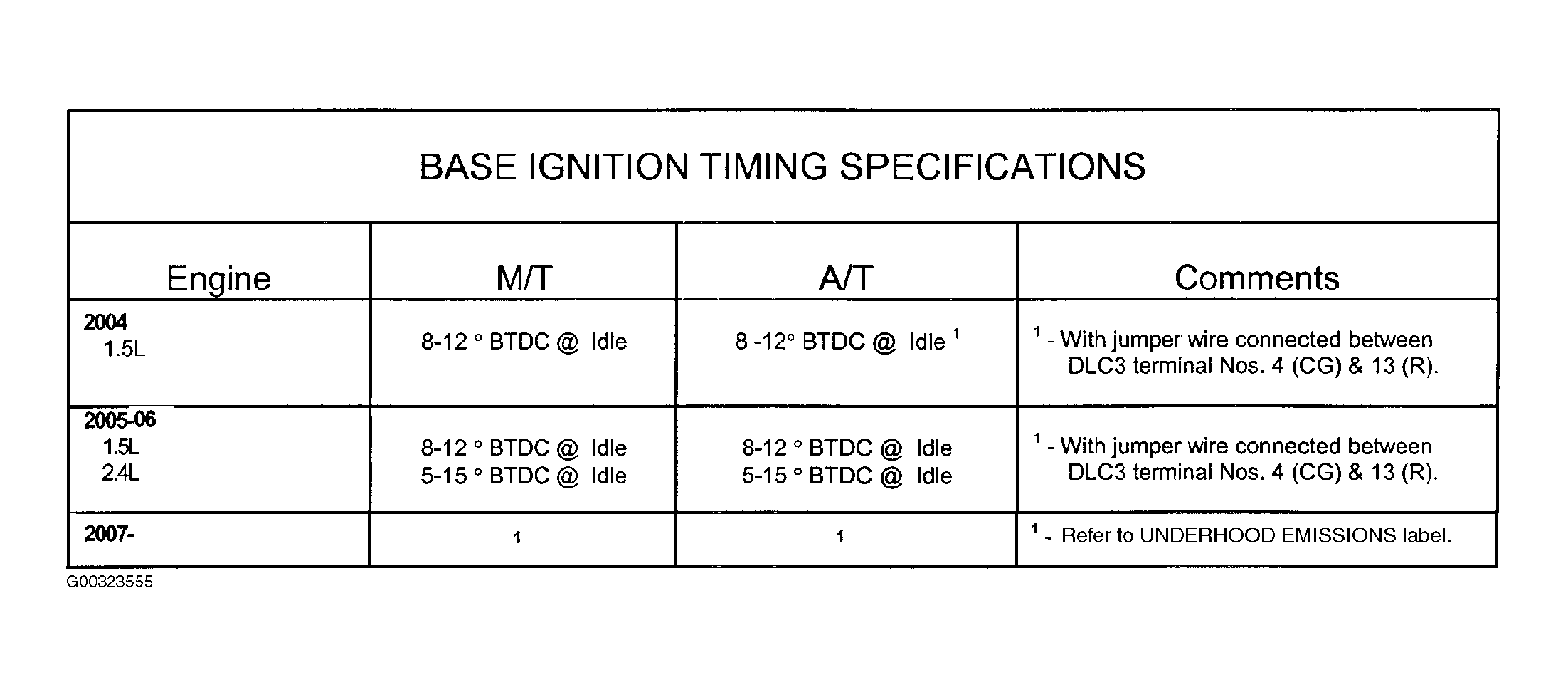

Base Ignition Timing Specifications
Fig 1:
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
