Automatic Transaxle ASSY (ATM): Components

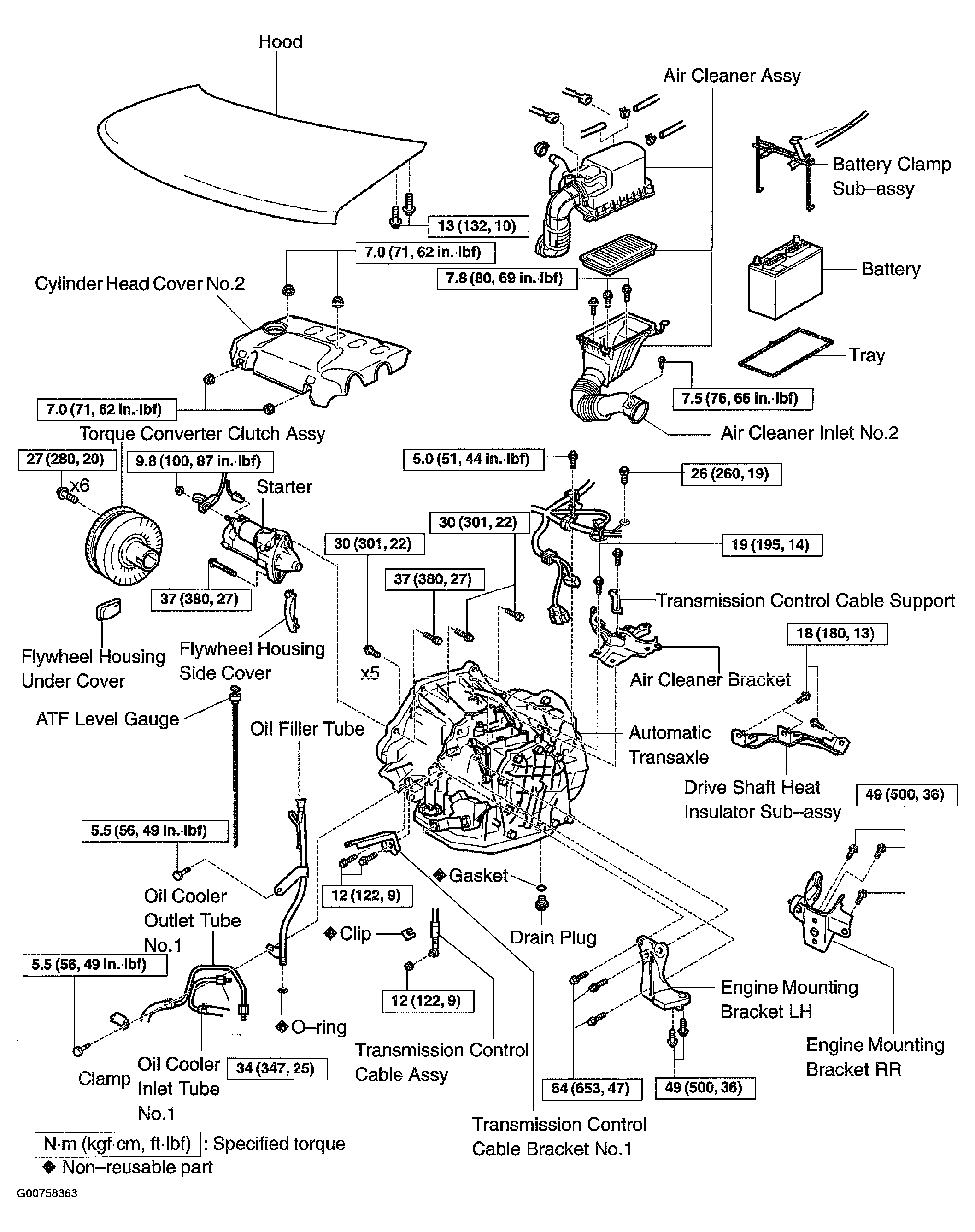

Fig 1: Exploded View And Torque Specifications Of Automatic Transaxle Assy External Components
G00758363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

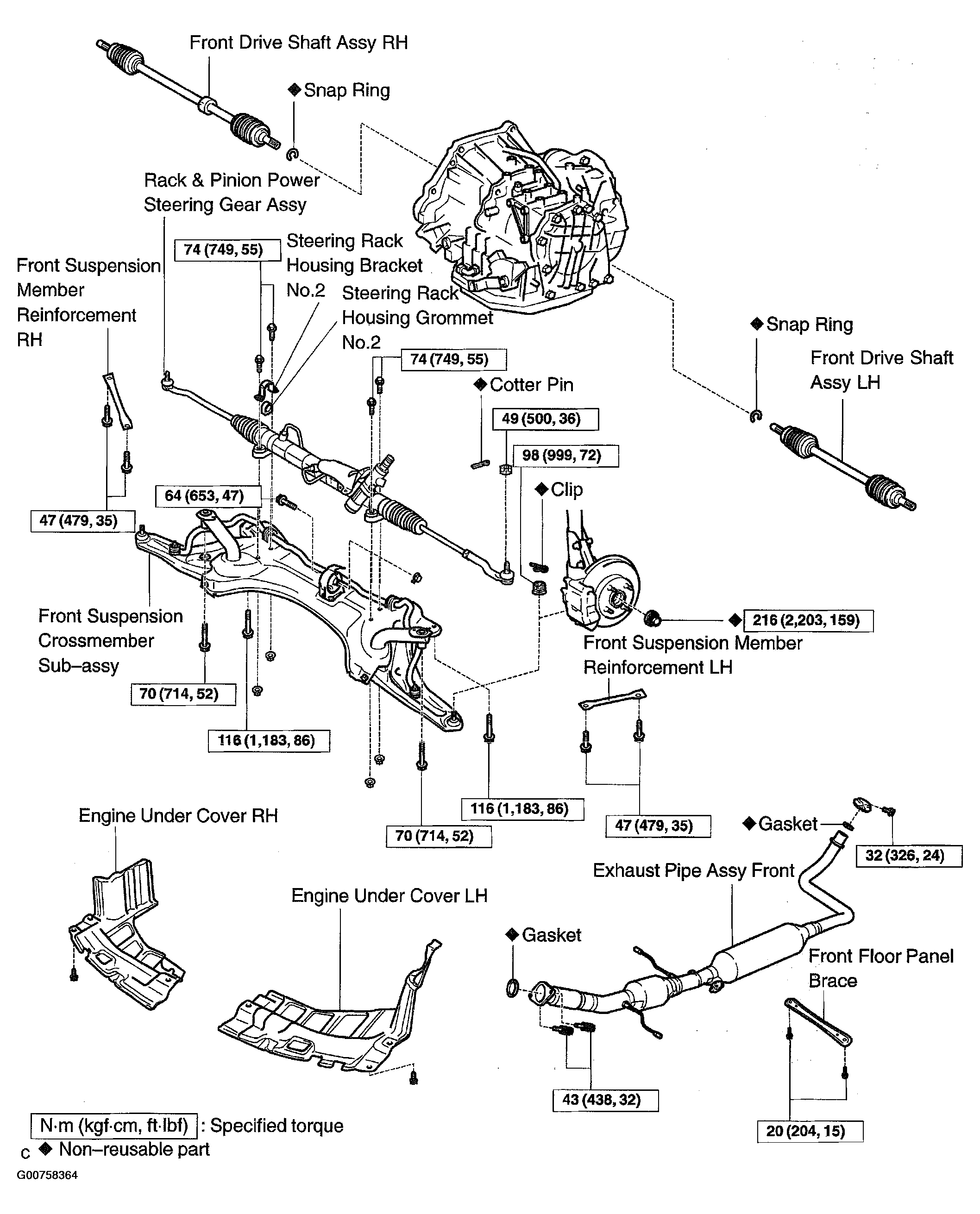

Fig 2: Exploded View And Torque Specifications Of Automatic Transaxle Assy External Components
G00758364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
