DTCS Relating To EVAP System: Notes

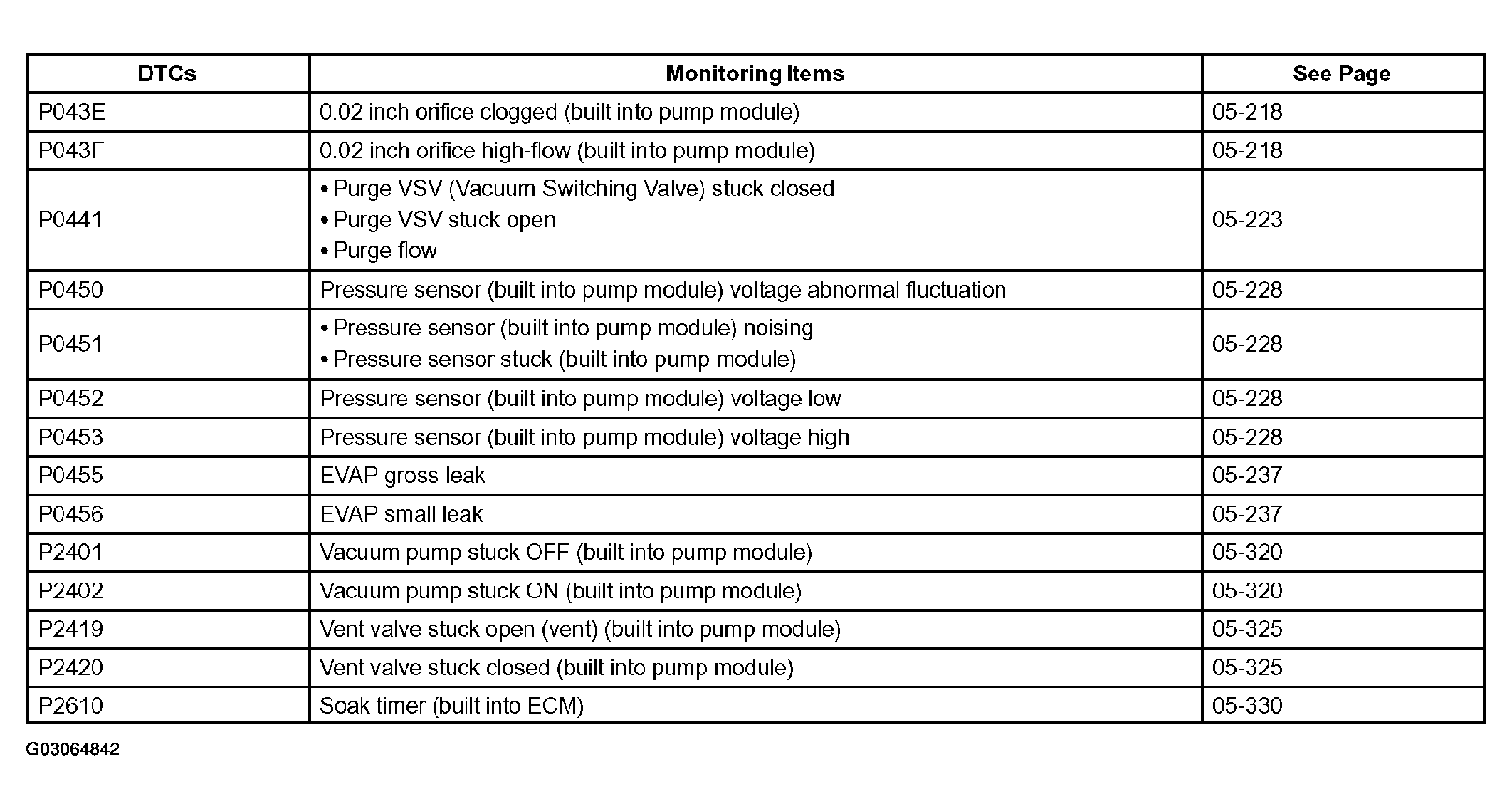

Fig 1: DTC Chart
G03064842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.

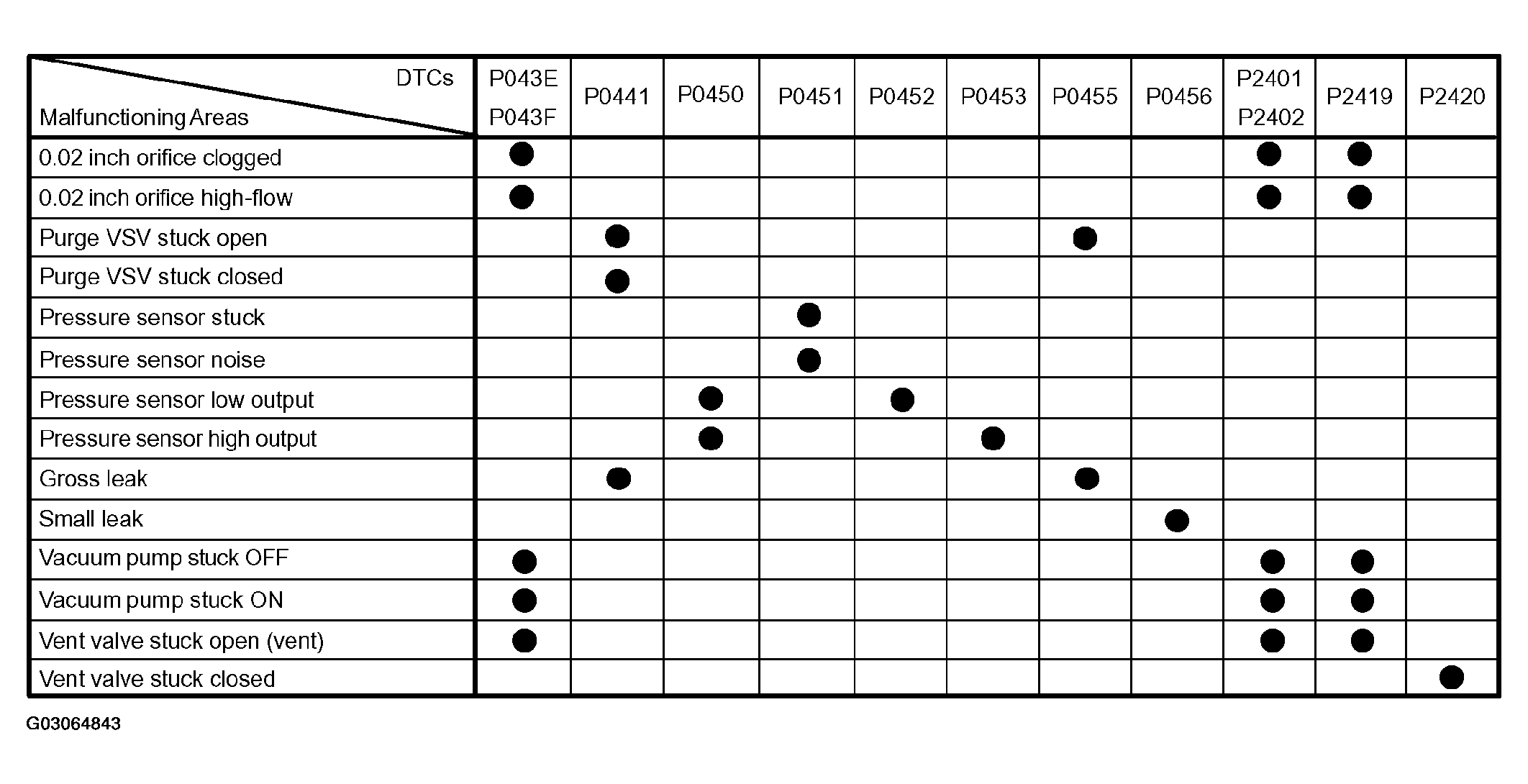

Fig 2: Identifying Malfunctioning Area
G03064843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
