Wireless Door Lock Control System: Location

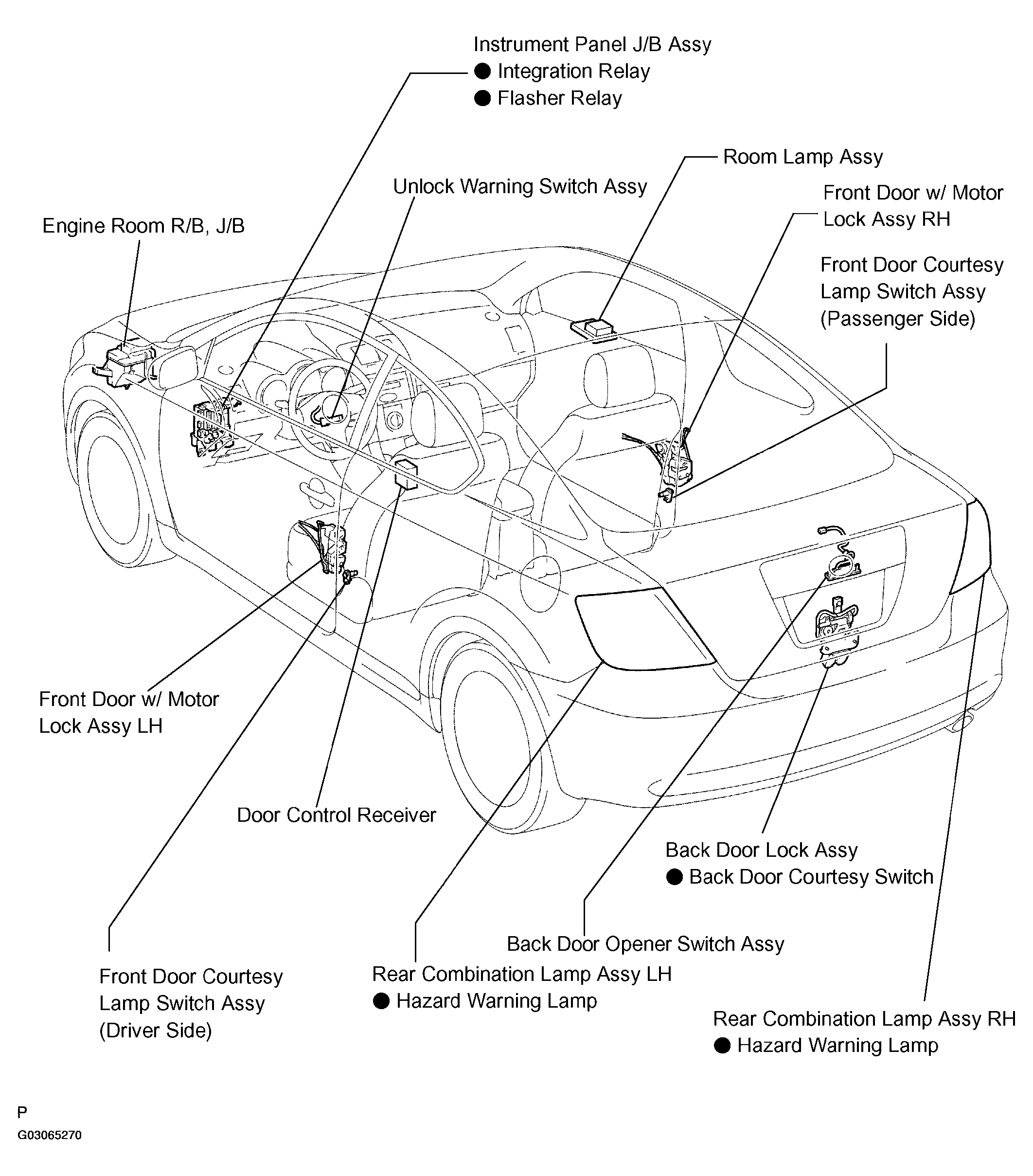

Fig 1: Locating Wireless Door Lock Control System (1 Of 2)
G03065270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

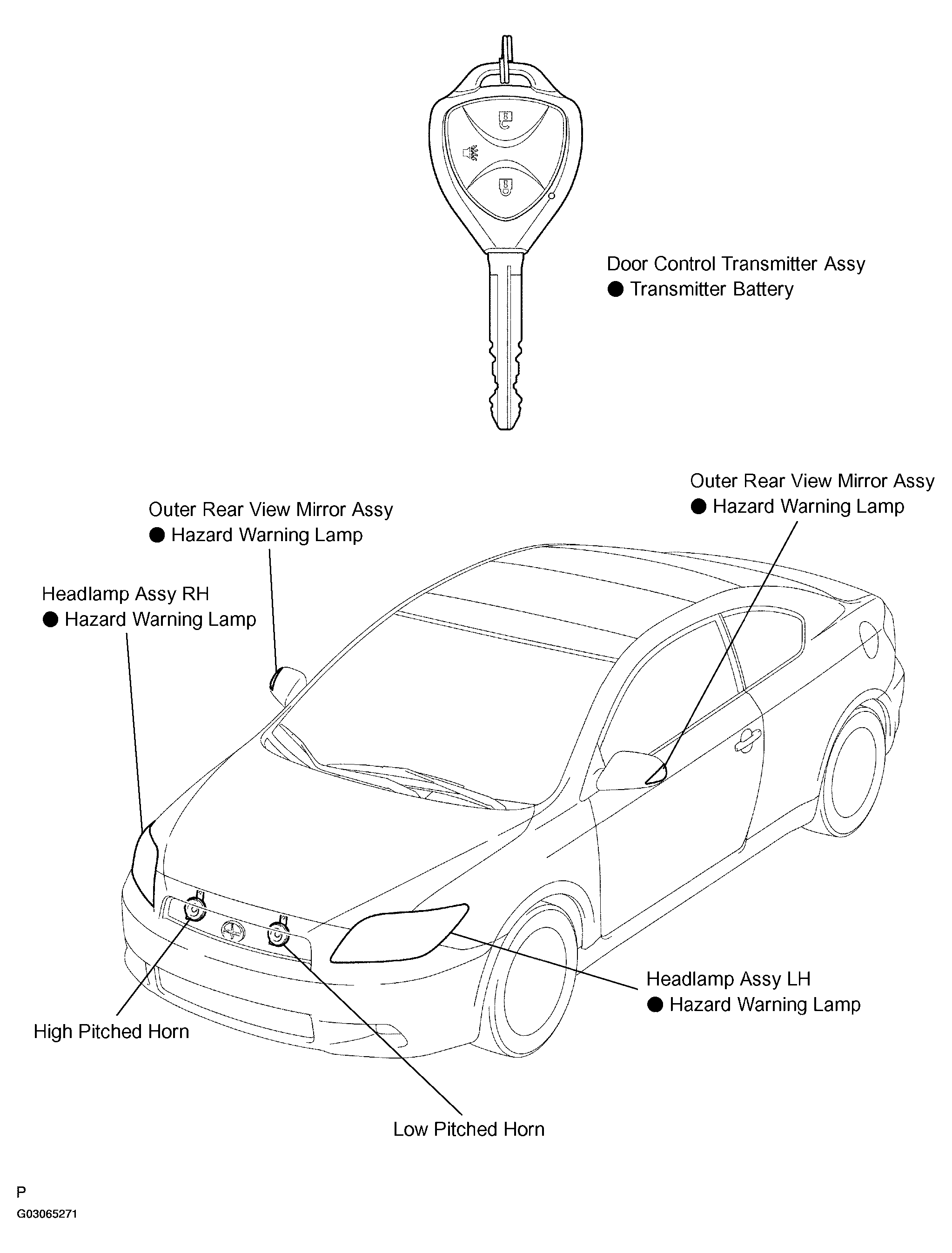

Fig 2: Locating Wireless Door Lock Control System (2 Of 2)
G03065271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
