Initialization Of Power Window (PD008-04)

Publication date: 2004-05-17
Reference number: PD008-04

INITIALIZATION OF POWER WINDOW

TECHNICAL SERVICE BULLETIN

Reference Number(s): PD008-04, Date of Issue: May 17, 2004

SCION:	2005 tC
SECTION:	PRE-DELIVERY SERVICE
COPYRIGHT:	© 2018 Toyota, USA License Agreement TMS1002

Introduction

As a result of the removal of the DCC fuse or battery disconnection, the "one-touch open and close" and "jam protection" functions of the power windows will be inoperative due to loss of the door window position memory stored in the Body ECU.

Therefore, it is necessary to initialize each door's power window during Pre-Delivery Service (PDS) at the dealership.

Applicable Vehicles

2005 model year Scion tC vehicles.

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OFP	T1	T2
N/A	Not Applicable to Warranty	--	--	--	--

Initialization Procedure

With ignition switch in the "ON" position, do the following:

NOTE: When the battery terminal has been disconnected, each door's power window switch blinks.

Push the driver's door power window switch to open the window.

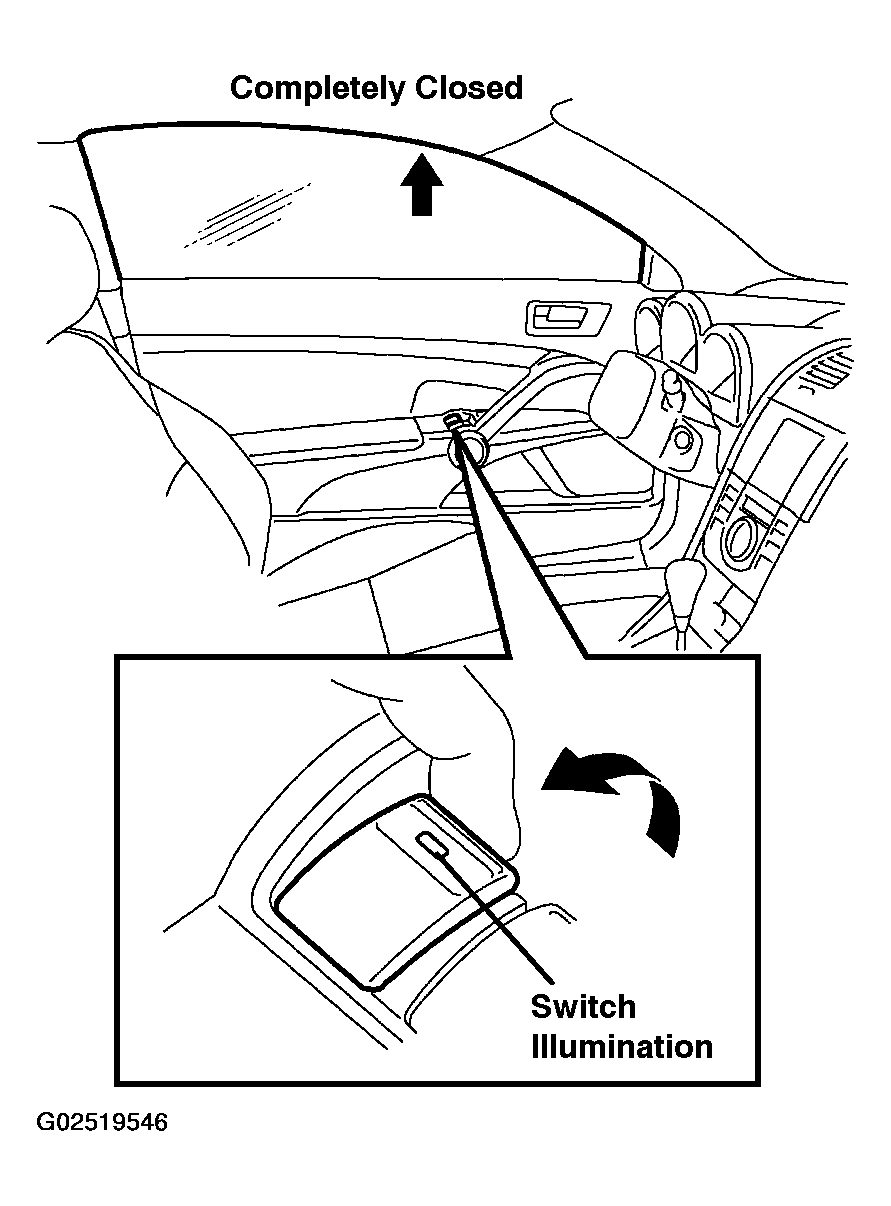

Fig 1: Switch Illumination
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Pull up the driver's door power window switch until the window closes, and hold it for approximately one second.
NOTE: At this time, the driver's door power window switch illumination changes from blinking to constant illumination.
Check for proper operation of the "one-touch open and close" function by fully pushing the switch "DOWN" once and fully pulling the switch "UP" once.
NOTE: Jam protection function is enabled through the above initialization procedure.

Fig 2: Checking Power Window Switch Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Repeat the above procedure on the passenger door window switch.
