On-Vehicle Inspection

  1. CHECK SHIFT LOCK OPERATION
    1. Move the shift lever to the P position.
    2. Turn the ignition switch to the LOCK position.
    3. Check that the shift lever cannot be moved to any position other than P.
    4. Turn the ignition switch to the ON position, depress the brake pedal and check that the shift lever can be moved to another position.

    If operation cannot be done as specified, inspect the shift lock control unit.

  2. CHECK SHIFT LOCK RELEASE BUTTON OPERATION
    1. Using a screwdriver, remove the shift lock release cover.
    2. When operating the shift lever with the shift lock release button pressed, check that the lever can be moved to any position other than P.

    If operation cannot be done as specified, check the shift lever assy installation condition.

  3. CHECK KEY INTERLOCK OPERATION
    1. Turn the ignition switch to the ON position.
    2. Depress the brake pedal and move the shift lever to any position other than P.
    3. Check that the ignition key cannot be turned to the LOCK position.
    4. Move the shift lever to the P position, turn the ignition key to the LOCK position and check that the ignition key can be removed.

    If operation cannot be done as specified, inspect the shift lock control unit.

  4. INSPECT SHIFT LOCK CONTROL ECU ASSEMBLY
    1. Disconnect the connector from the shift lock control ECU.
    2. Using a voltmeter, measure the voltage at each terminal.
      Fig 1: Identifying Shift Lock Control ECU Connector Terminal
      G03063877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      SHIFT LOCK CONTROL ECU TERMINAL VOLTAGE SPECIFICATION

      Terminal Measuring Condition Voltage (V)
      6 (ACC) - 8 (E) Ignition switch ACC 10 to 14
      6 (ACC) - 8 (E) Ignition switch OFF Below 1
      7 (STP) - 8 (E) Depress brake pedal 10 to 14
      7 (STP) - 8 (E) Release brake pedal Below 1
      1 (IG) - 8 (E) Ignition switch ON 10 to 14
      1 (IG) - 8 (E) Ignition switch OFF Below 1
    3. Connect the connector to the shift lock control ECU.
    4. Using a voltmeter, measure the voltage between terminals KLS+ and E.
    Fig 2: Identifying shift lock control ECU Connector Terminal
    G03063878Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

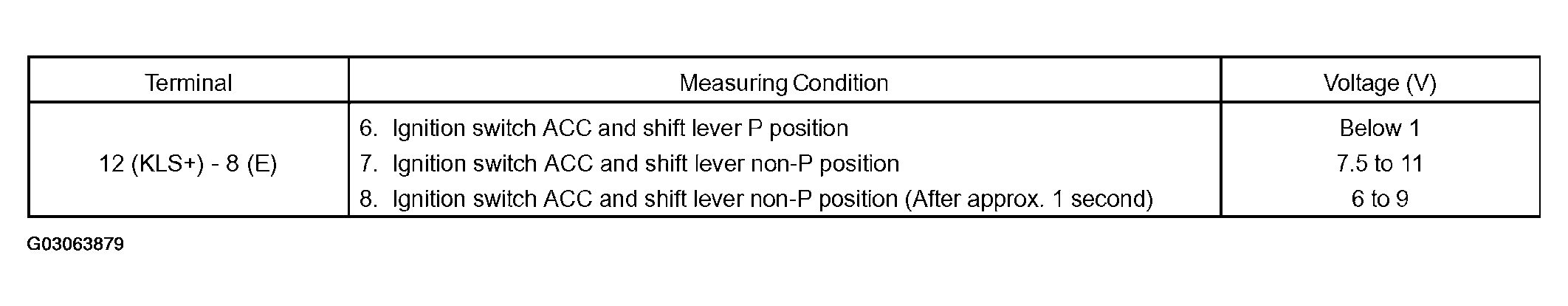

    Fig 3: Terminal Voltage Specification
    G03063879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    If the result is not as specified, replace the shift lock control ECU.
