System Diagram

The configuration of the electronic control system in the U241E automatic transaxles is as shown in Fig 1 .

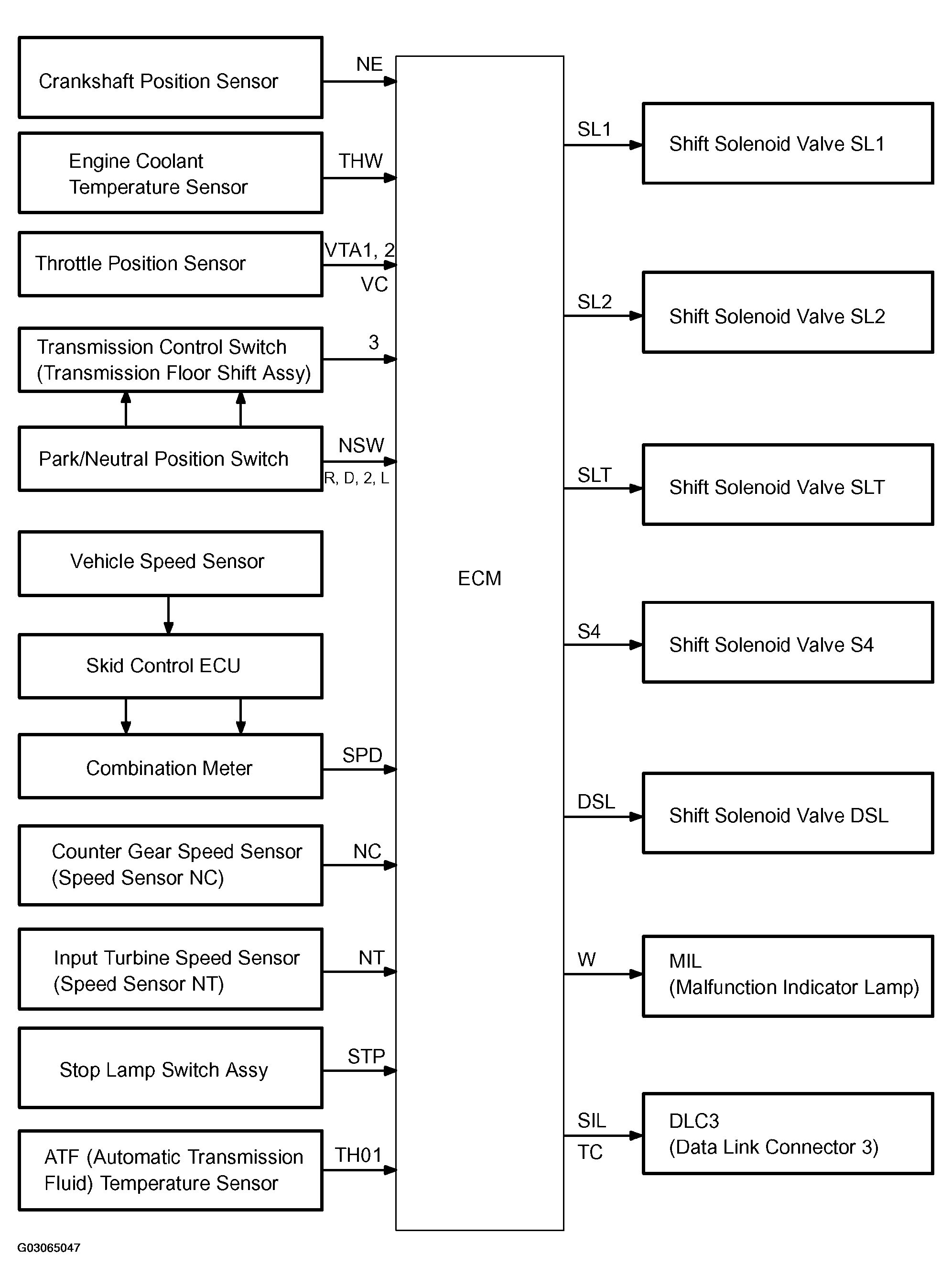

Fig 1: Electronic Controlled Automatic Transaxle (ECT) System Diagram
G03065047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
