Home >> Scion >> 2005 >> tC Standard >> Repair and Diagnosis >> Engine Performance >> SFI System (2AZ-FE) >> Location
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

SFI System (2AZ-FE): Location

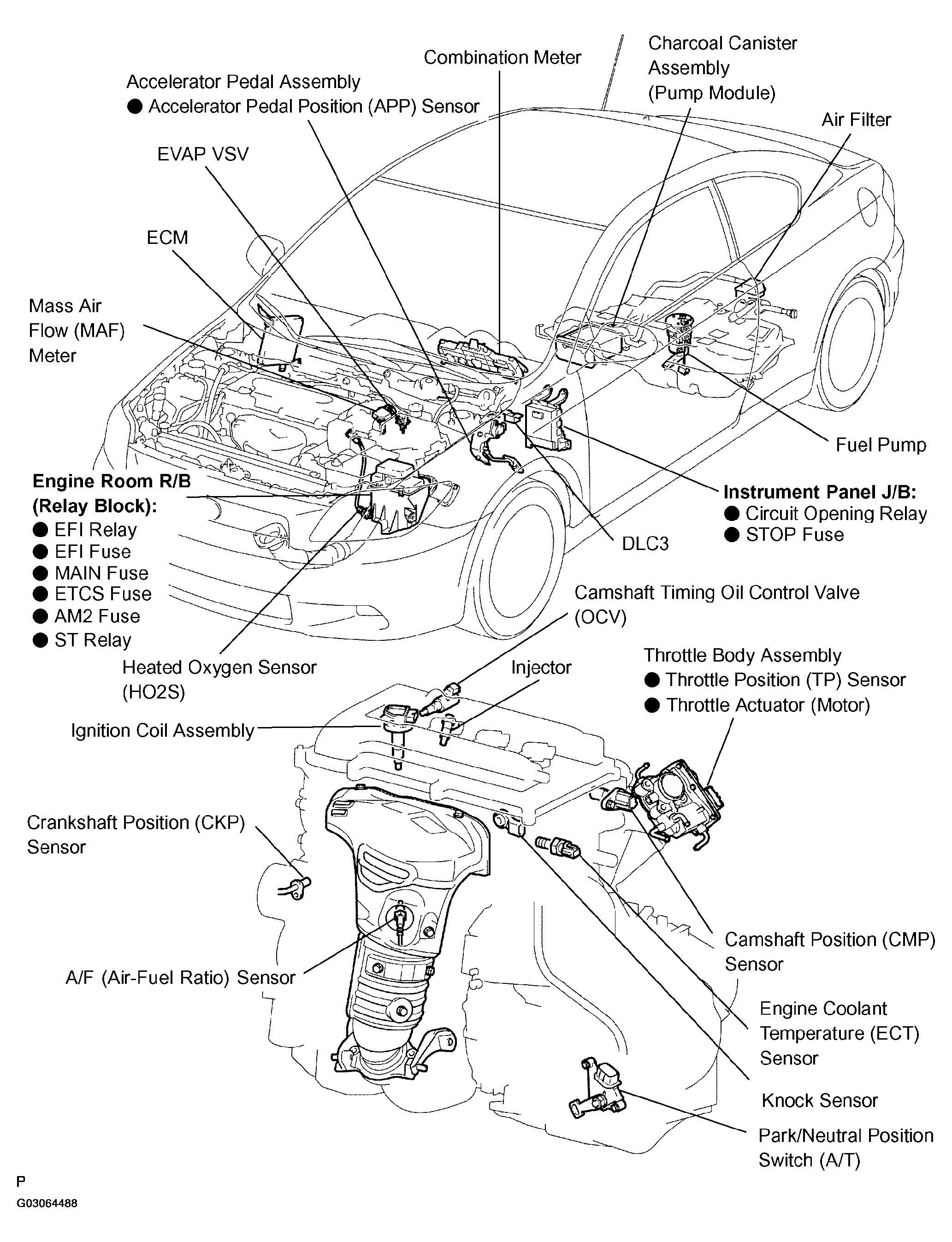

Fig 1: Identifying SFI System Location
G03064488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
