Torque Specifications

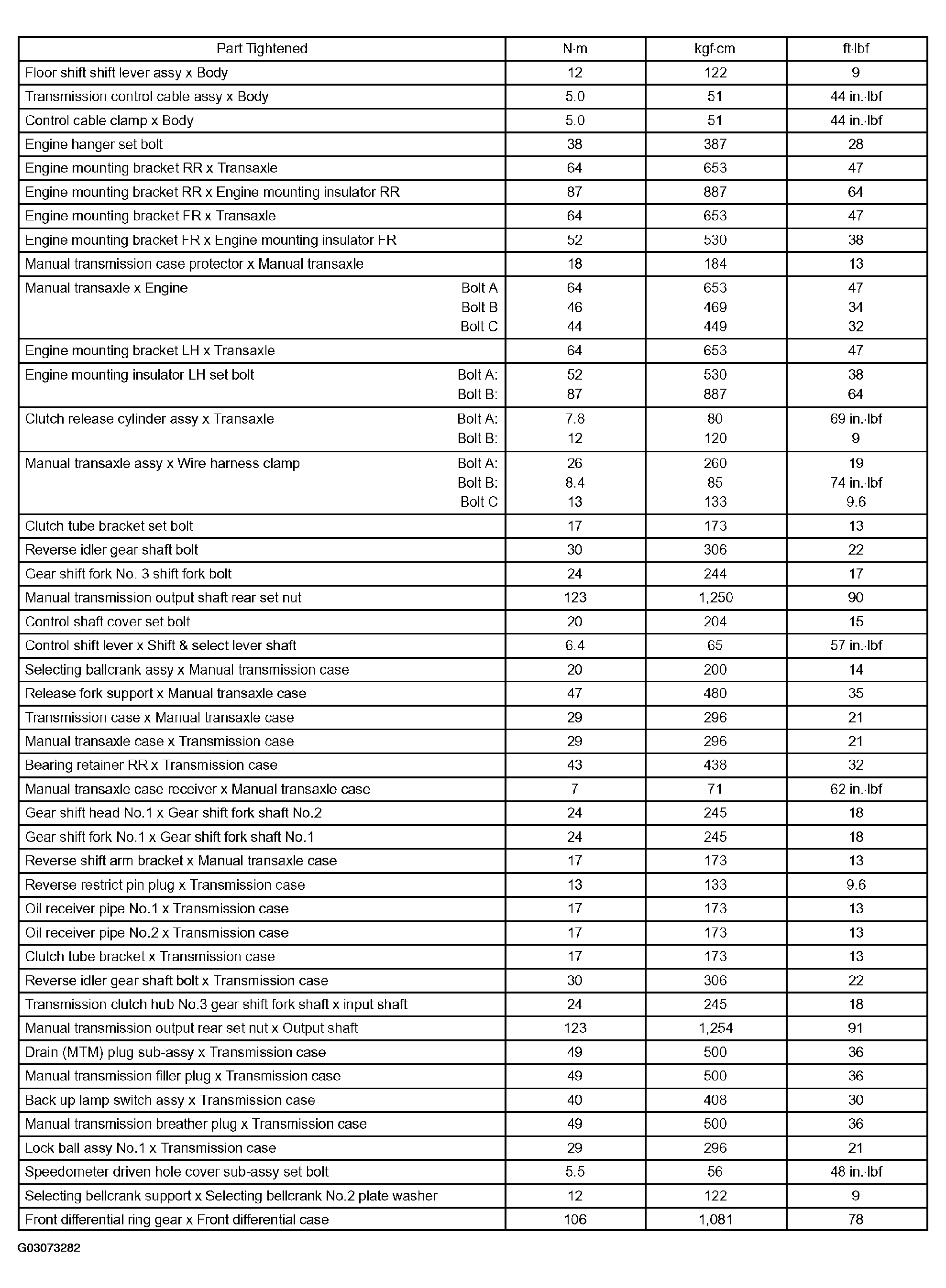

Fig 1: Manual Transmission / Transaxle Torque Specification Chart
G03073282Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
