Oil Pump ASSY: Components

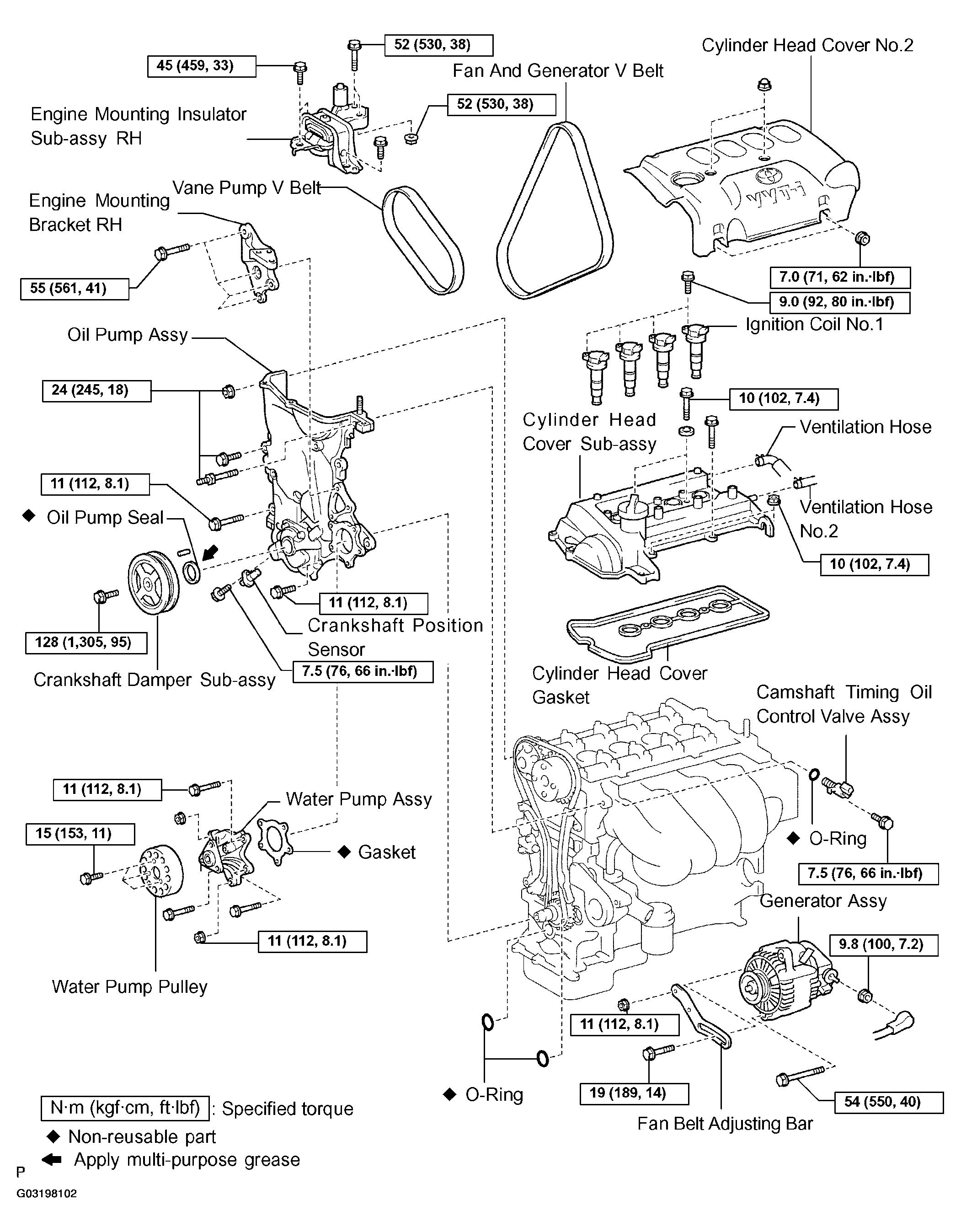

Fig 1: Identifying Oil Pump Assy Components (1 Of 2)
G03198102Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

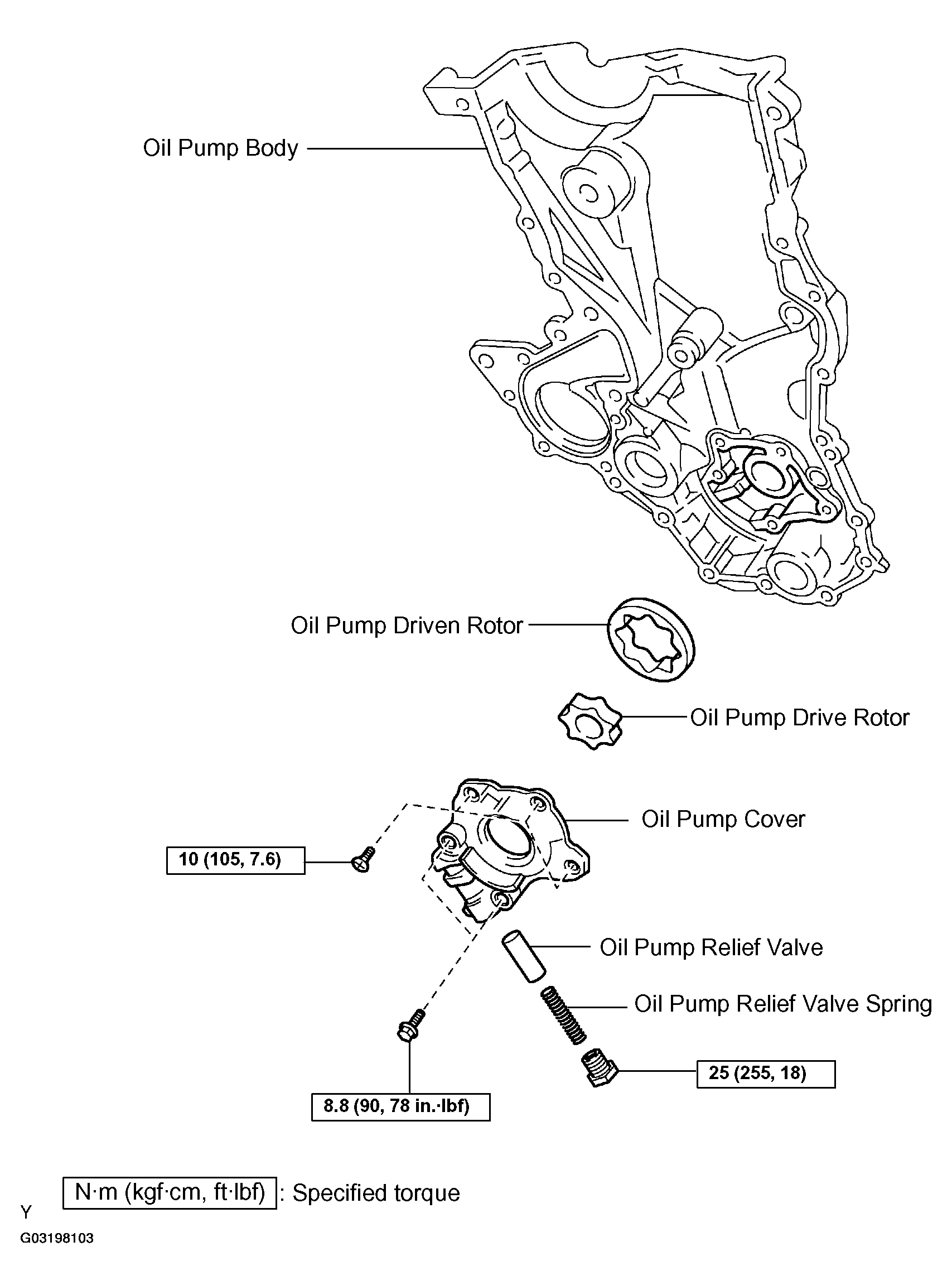

Fig 2: Identifying Oil Pump Assy Components (2 Of 2)
G03198103Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
