Transmission Control Cable ASSY (ATM): Replacement

HINT:

COMPONENTS:

• See INSTRUMENT PANEL/METER
• See FLOOR SHIFT ASSY (ATM)

1. REMOVE CONSOLE BOX REAR COVER
2. REMOVE CONSOLE BOX CARPET
3. REMOVE CONSOLE BOX ASSY REAR (SEE  INSTRUMENT PANEL ASSY LOWER  )
4. REMOVE EXHAUST PIPE ASSY FRONT (SEE  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
5. REMOVE FRONT FLOOR HEAT INSULATOR NO.1
6. REMOVE AIR CLEANER ASSY
7. DISCONNECT TRANSMISSION CONTROL CABLE ASSY
   1. Remove the nut, disconnect the transmission control cable assy from the floor shift assy.
   2. Using a screwdriver, disconnect the transmission control cable assy from the shift lever plate.

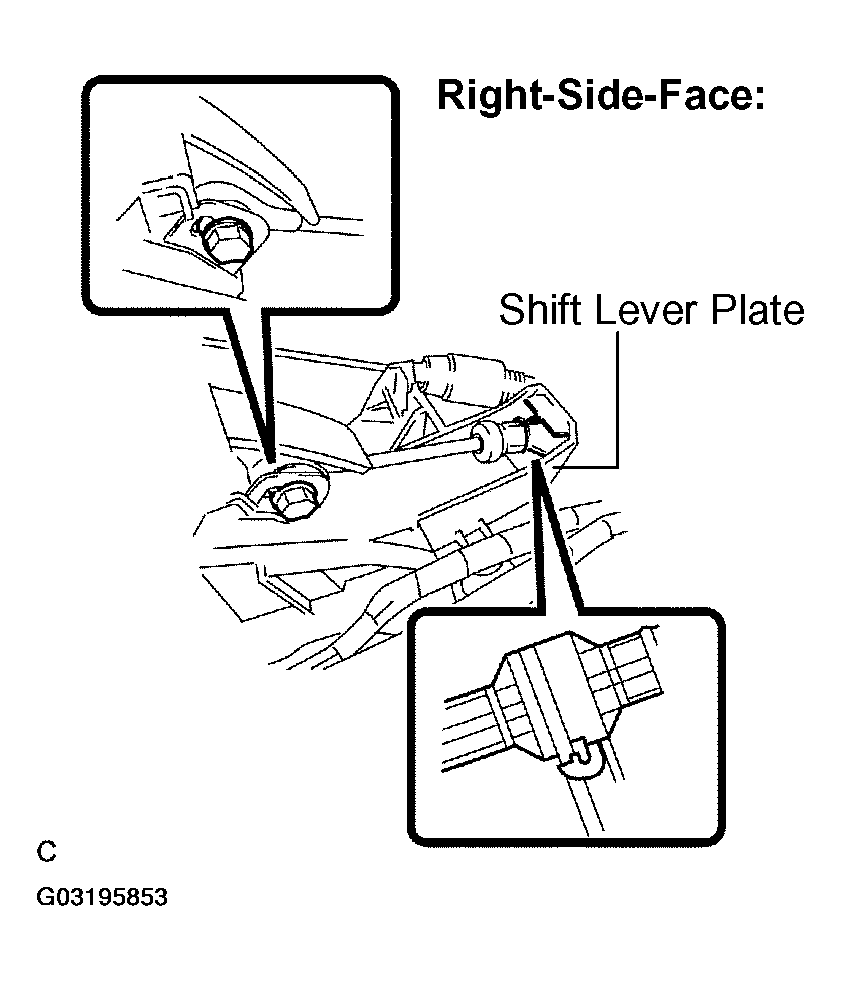

      Fig 1: Identifying Transmission Control Cable Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the 3 bolts.
   4. Pull out the transmission control cable assy from the body.
      Fig 2: Removing Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Remove the nut and disconnect the transmission control cable assy from the control shaft lever.
   6. Remove the clip and disconnect the transmission control cable assy from the control cable bracket.

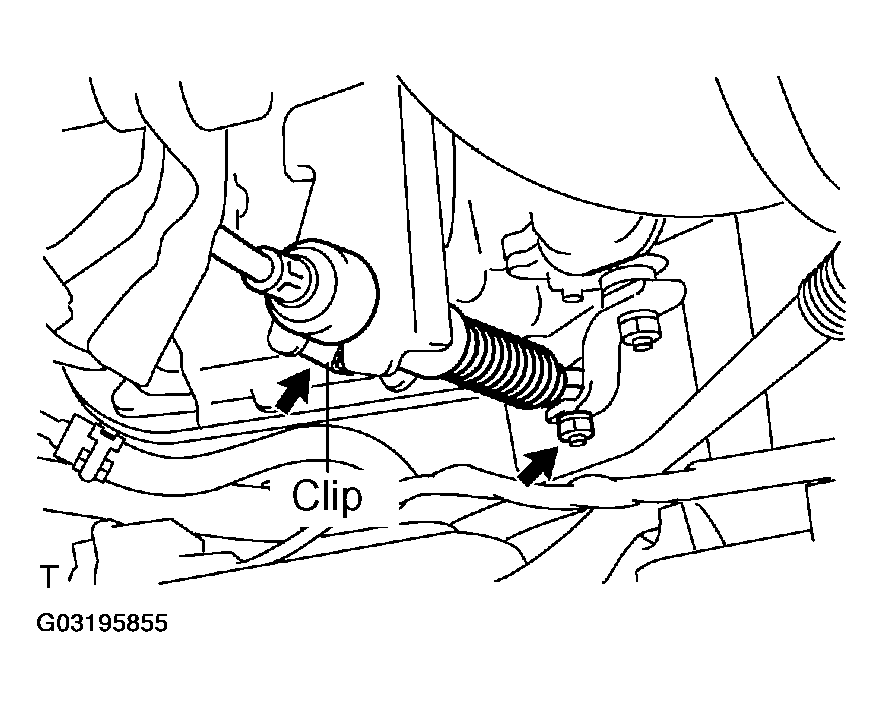

      Fig 3: Removing Clip

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   7. Disconnect the transmission control cable assy from the transmission control cable support.

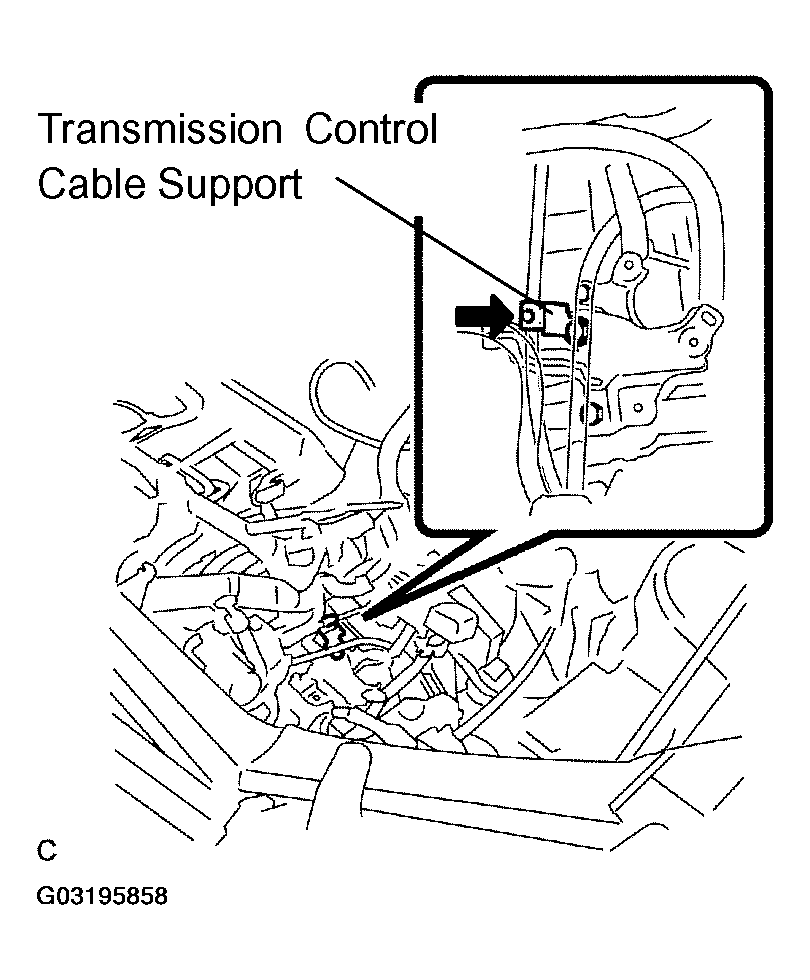

      Fig 4: Disconnecting Transmission Control Cable Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. CONNECT TRANSMISSION CONTROL CABLE ASSY
   1. Temporarily install the transmission control cable assy on the control shaft lever with the nut.
   2. Connect the transmission control cable assy with a new clip on the bracket.
      Fig 5: Connecting Transmission Control Cable Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Connect the transmission control cable assy to the transmission control cable support.
      Fig 6: Connecting Transmission Control Cable Assy To Transmission Control Cable Support

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   4. Install the transmission control cable assy on the body with the 3 bolts.

      Torque: 5.0 N.m (51 kgf.cm, 44 in.lbf)

      Fig 7: Installing Transmission Control Cable Assy On Body With Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   5. Connect the transmission control cable assy on the shift lever plate.
   6. Temporarily install the transmission control cable assy on the floor shift assy.

      Torque: 12 N.m (122 kgf.cm, 9 ft.lbf)

      Fig 8: Connecting Transmission Control Cable Assy On Shift Lever Plate

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
9. INSTALL AIR CLEANER ASSY
10. INSTALL FRONT FLOOR HEAT INSULATOR NO.1

    Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

11. INSTALL EXHAUST PIPE ASSY FRONT (SEE  REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY  )
12. ADJUST SHIFT LEVER POSITION (SEE  ADJUSTMENT   )
13. INSPECT SHIFT LEVER POSITION (SEE  ADJUSTMENT   )
14. INSTALL CONSOLE BOX ASSY REAR
15. INSTALL CONSOLE BOX CARPET
16. INSTALL CONSOLE BOX REAR COVER
