Inner Rear View Mirror ASSY: Replacement

HINT: The installation procedures are the removal procedure in reverse order.

REMOVE INNER REAR VIEW MIRROR ASSY
1. Push the cover in the direction indicated by the arrows and remove it.
2. While holding down the claw in the direction of the black arrow, slide the inner rear view mirror assy in the direction of the arrow and remove it.

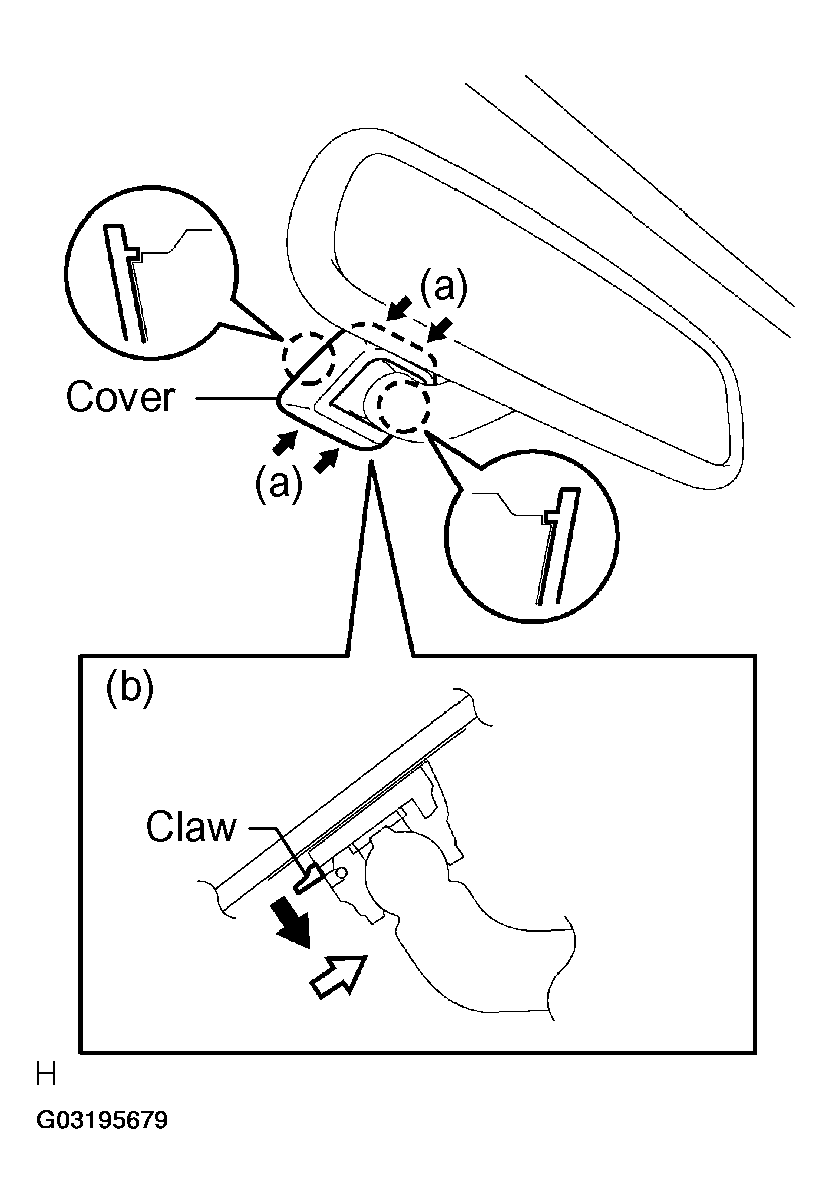

  Fig 1: Sliding Inner Rear View Mirror Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
