Back Door Stay: Disposal

HINT:

Use the same procedures for the RH side and LH side.

1. DISPOSE OF BACK DOOR STAY SUB-ASSY LH
   1. Horizontally fix the stay in a vise with the piston-rod pulled out.
   2. Using a metal saw, gradually cut any area between A and B to release the gas.

      Specification:

      AREA SPECIFICATIONS



      Area	Measurement
      a	80 mm (3.15 in.)
      b	20 mm (0.80 in.)

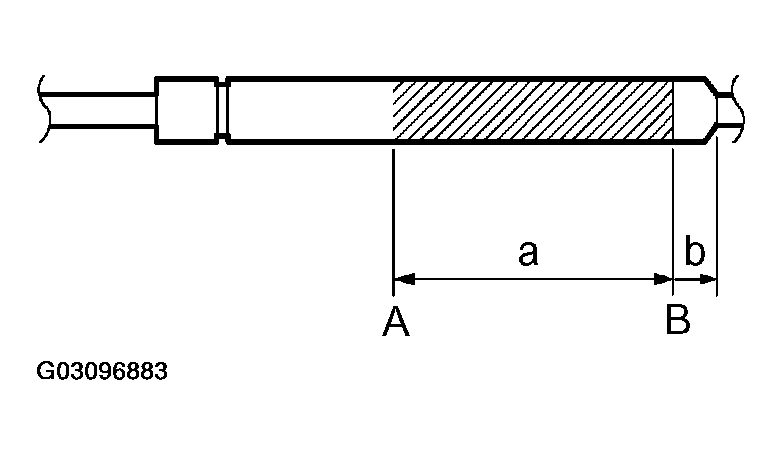

      Fig 1: Identifying Area To Cut Between A And B

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      CAUTION: As metal debris may be blown outward by the gas, you must:

      • Wear protective glasses.
      • Cover the area being cut.
      NOTE: The gas is colorless, odorless and harmless.
