Terminals Of ECM

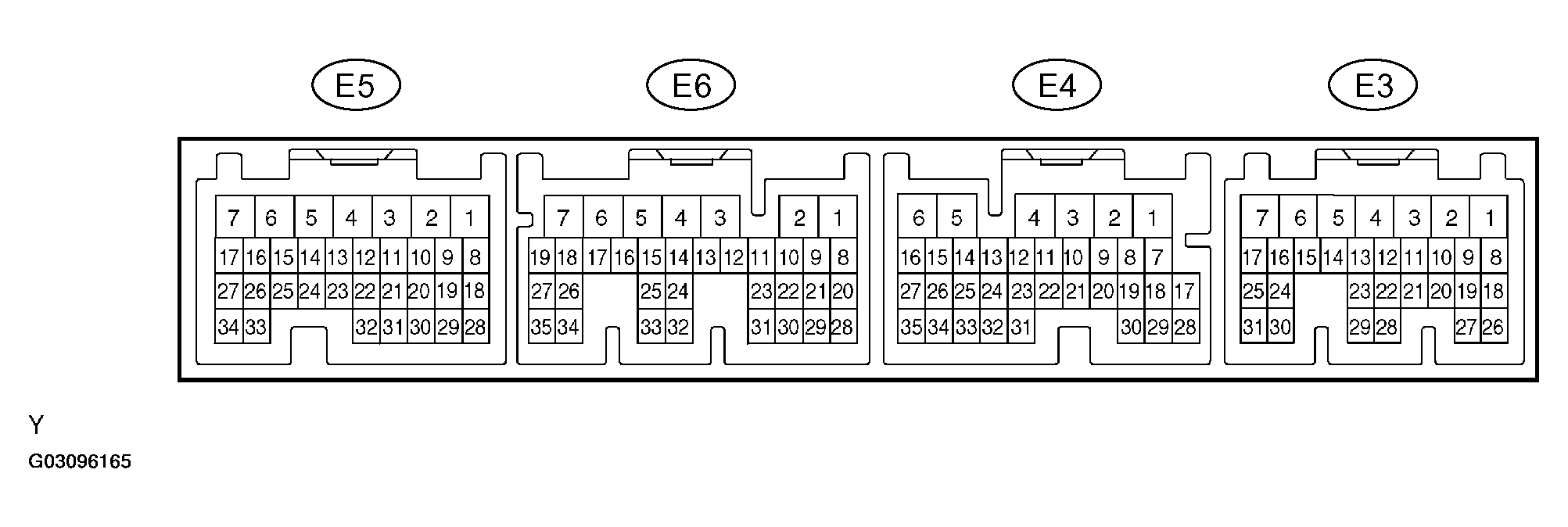

Fig 1: Identifying ECM Connectors Terminals
G03096165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

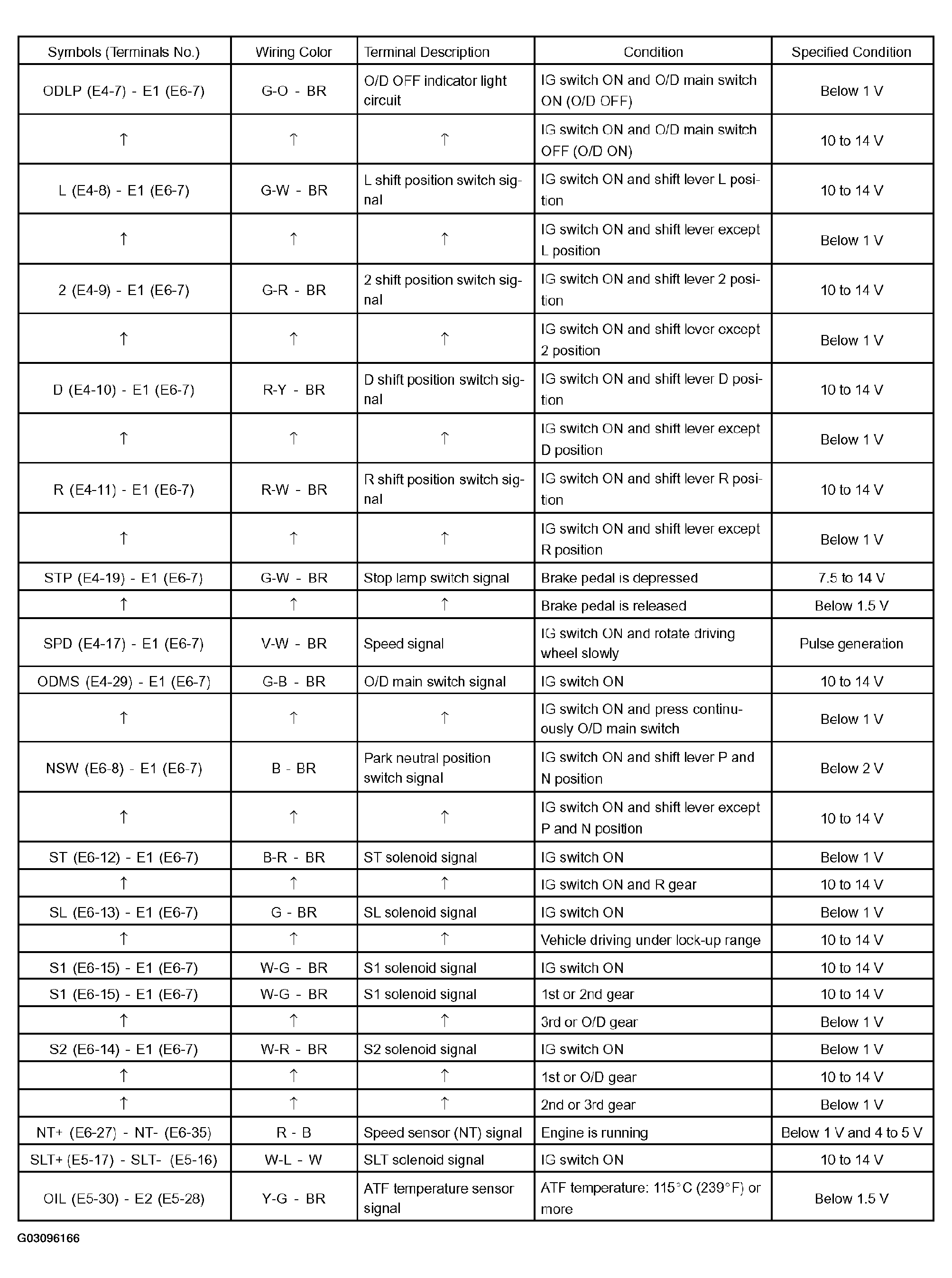

Fig 2: ECM Terminal Specification Chart
G03096166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
