Initialization

INITIALIZATION

RESET MEMORY

CAUTION: Perform the RESET MEMORY (AT initialization) when replacing the automatic transaxle assembly, engine assembly or ECM.

NOTE: Hand held tester only




a. Turn the ignition switch off.
b. Connect the hand held tester to the DLC3.
c. Turn the ignition switch to the ON position.

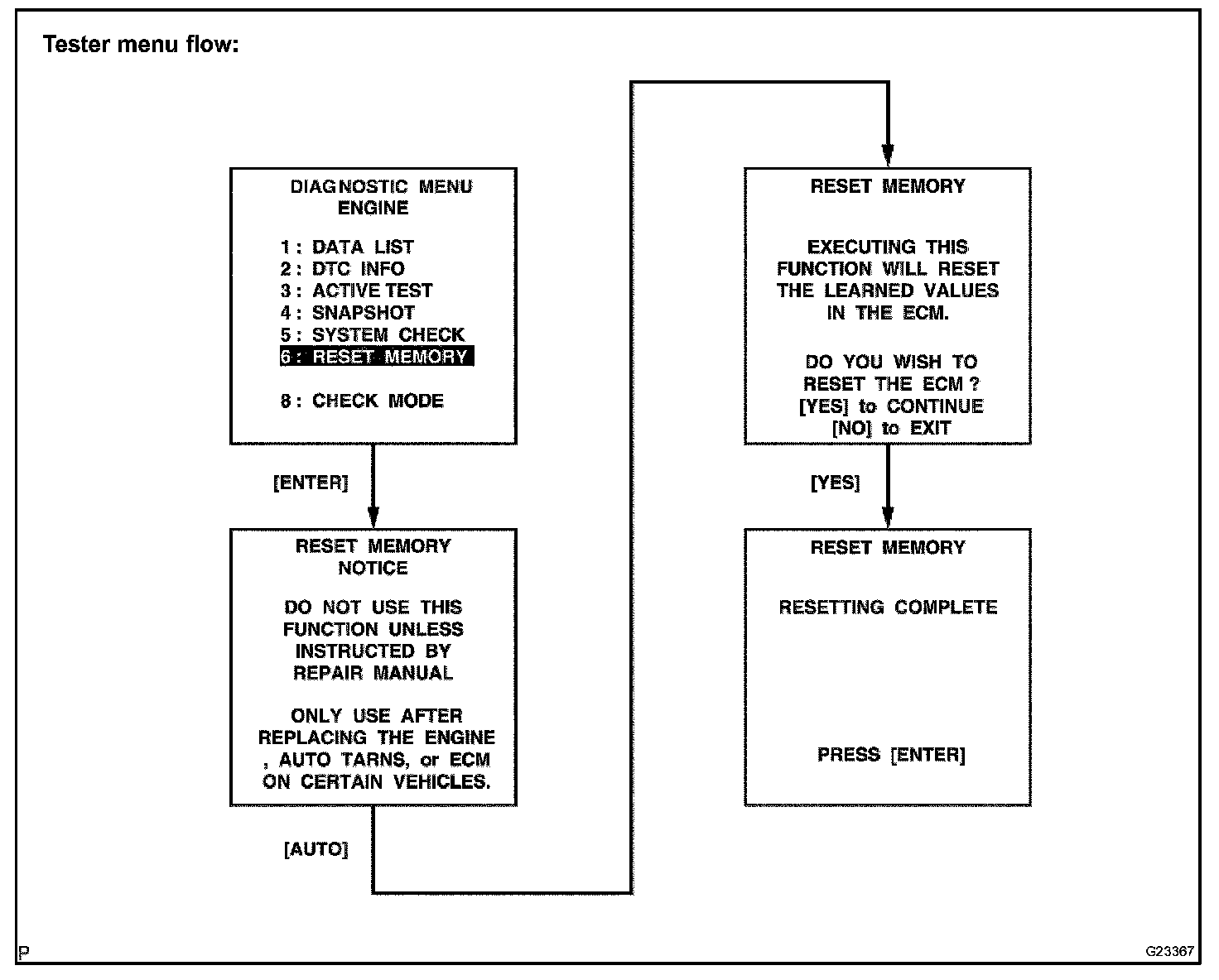

d. Perform the reset memory procedure from the ENGINE menu.

CAUTION: After performing the RESET MEMORY, be sure to perform the ROAD TEST described earlier.
