Emission Control System: Location

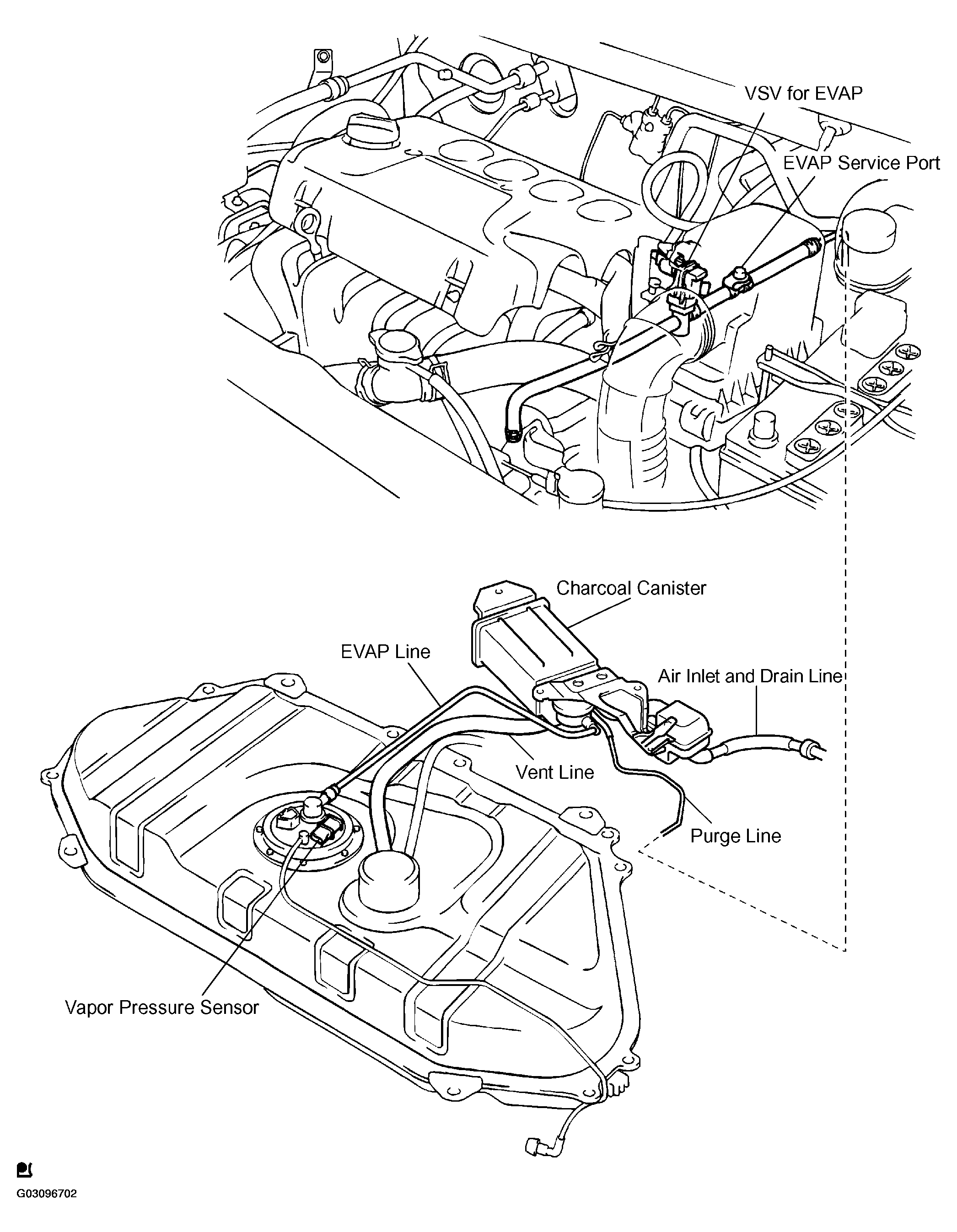

Fig 1: Identifying Emission Control System Component Locations
G03096702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

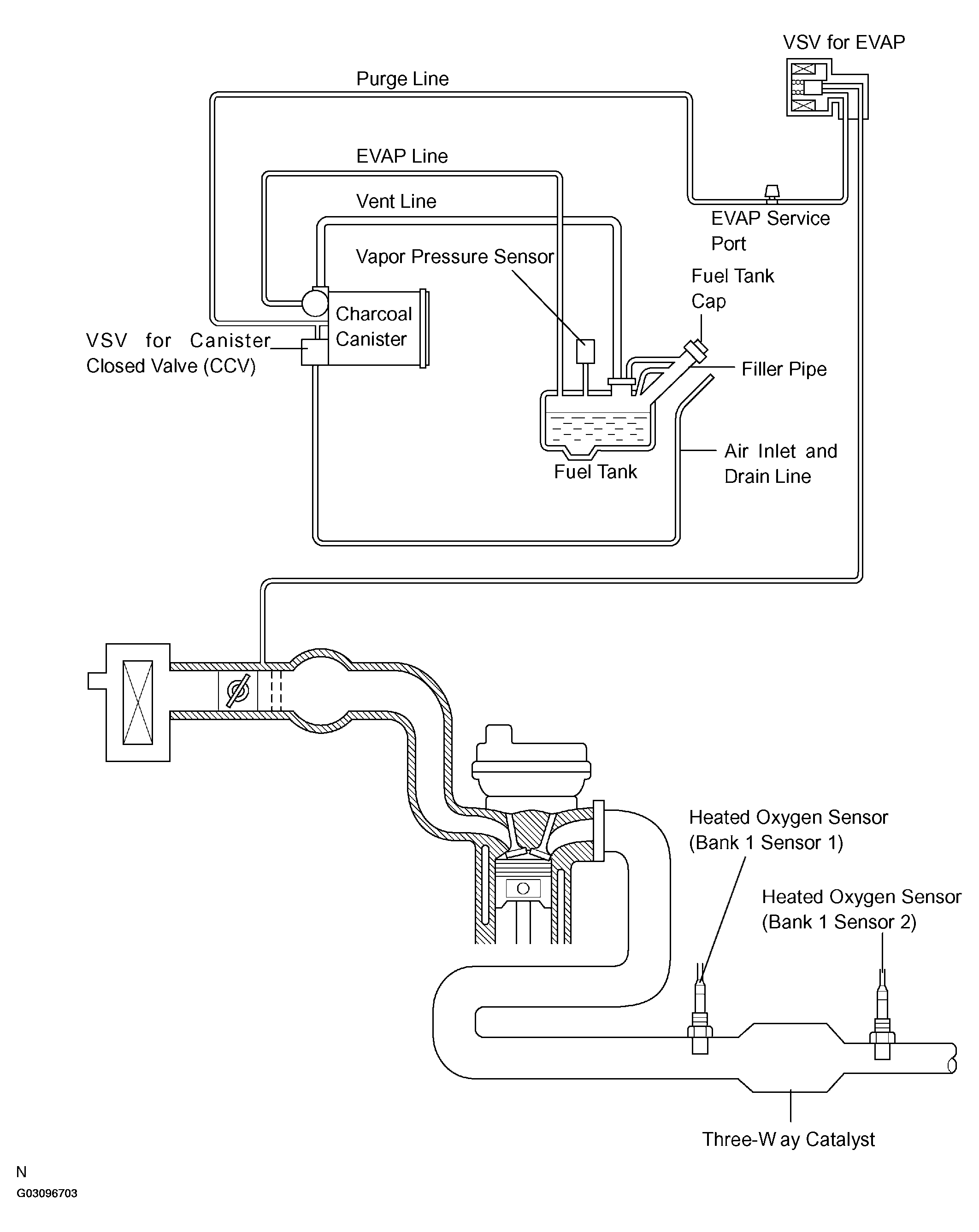

Fig 2: Emission Control System Piping Diagram
G03096703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
