Fuel Injector ASSY: Components

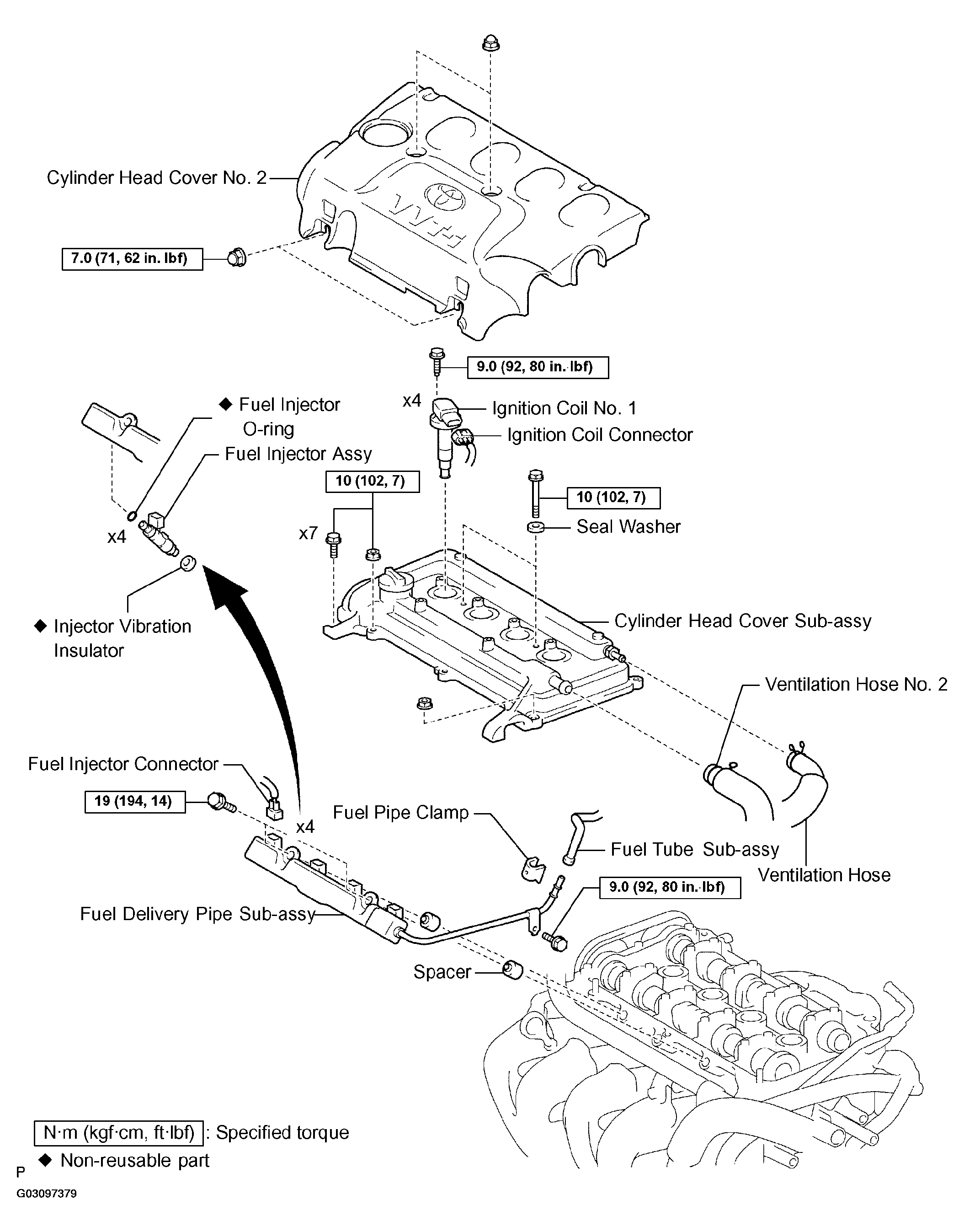

Fig 1: Identifying Fuel Injector Assy Components
G03097379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
