SFI System: Location

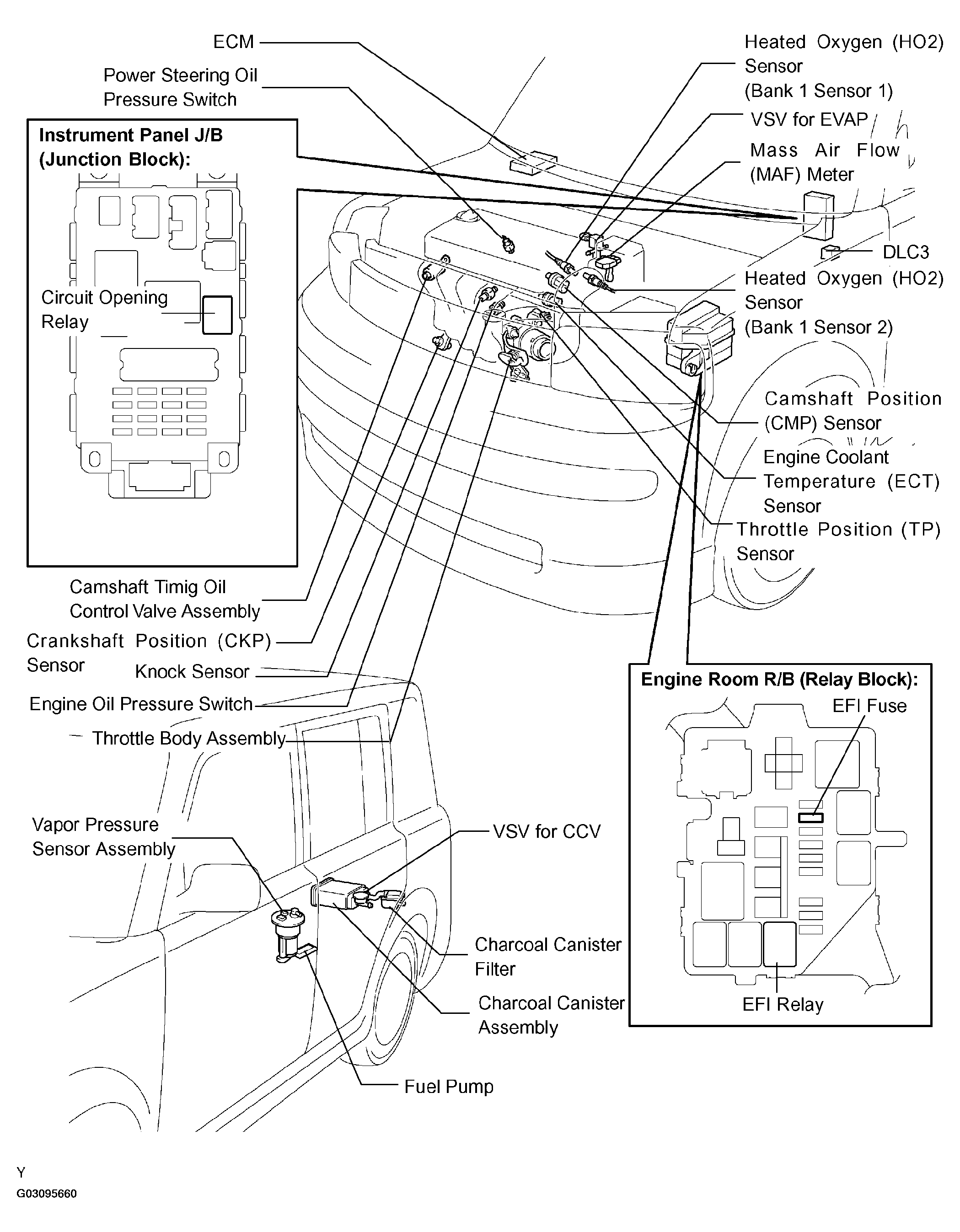

Fig 1: Locating SFI System

G03095660

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
