Knock Sensor: Components

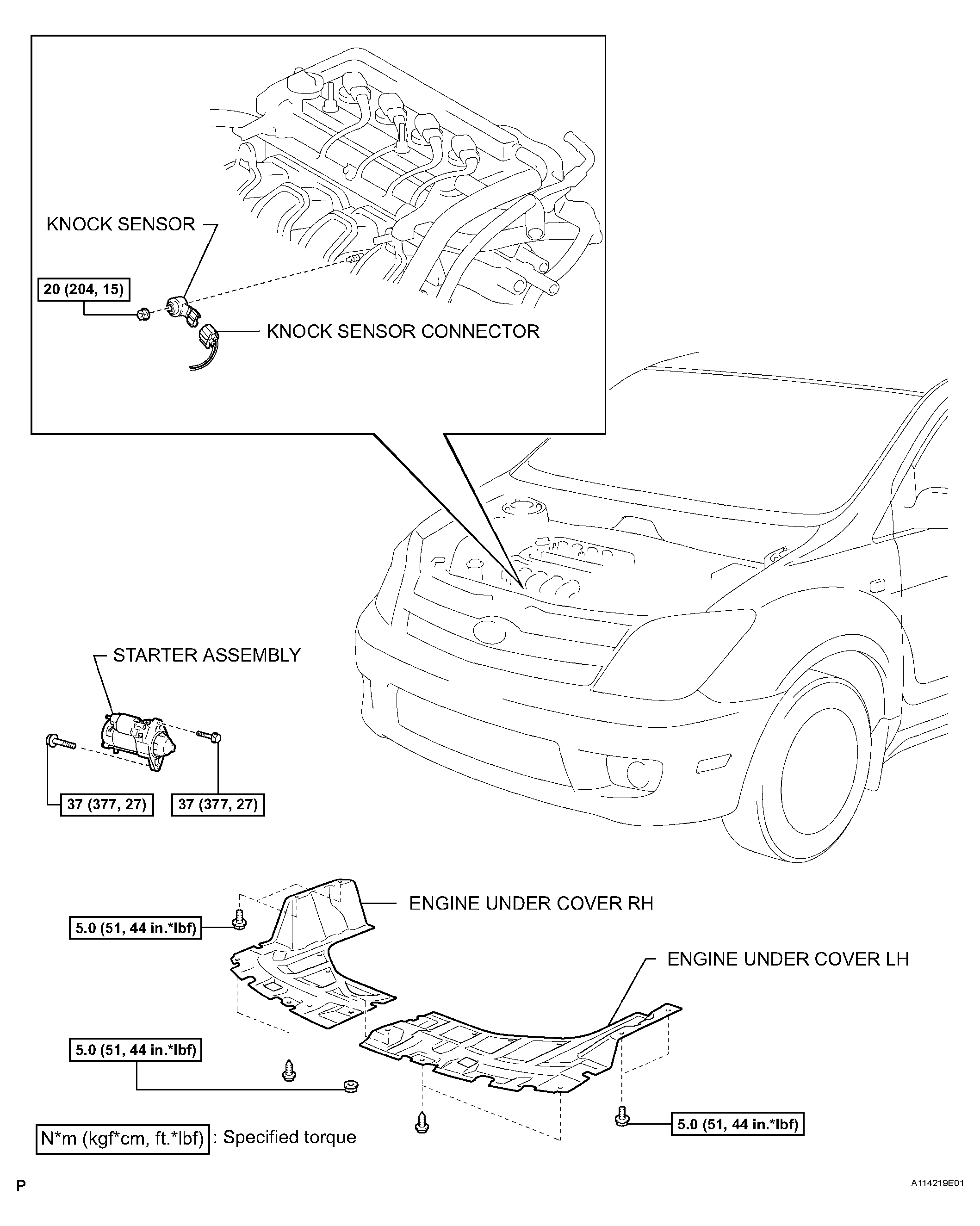

Fig 1: Identifying Knock Sensor Components

G04153227

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
