Floor Shift Assembly: Installation

  1. INSTALL FLOOR SHIFT ASSEMBLY
    1. Install the floor shift with the 4 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      HINT:

      Tighten them in the order A, B, C and D.

    2. Install the 2 wire harness clamps on the shift lever plate.

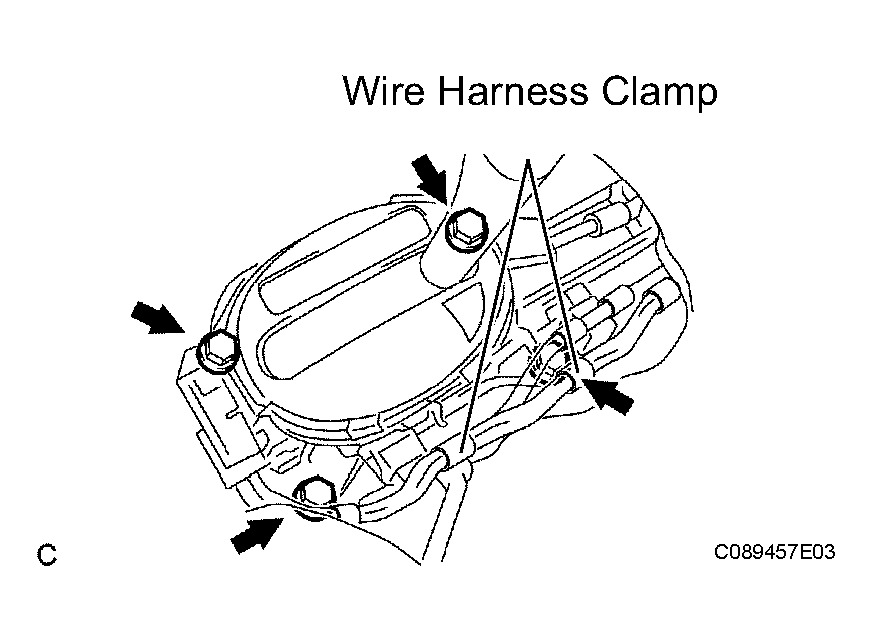

      Fig 1: Installing Floor Shift Assembly
      G04154075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Adjust the shift lever to the N position, push the lever to the R position side and hold it in place.
    2. While pulling the cable, connect the transmission control cable with the nut.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

    3. Connect the 2 connectors.

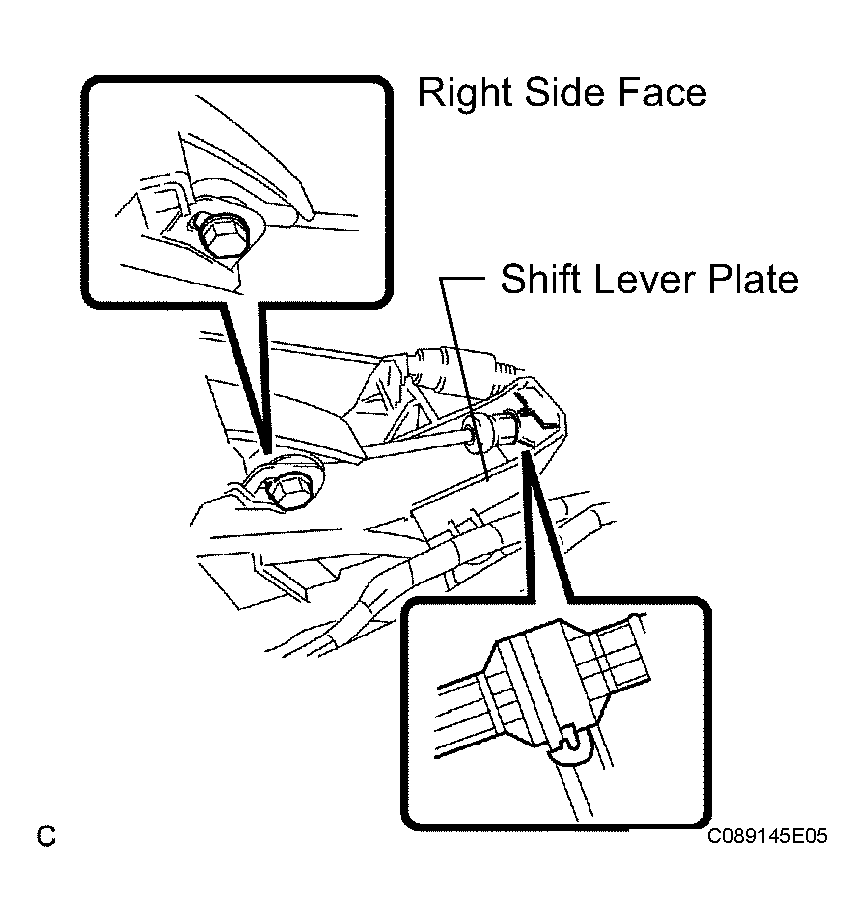

      Fig 2: Connecting Transmission Control Cable Assembly
      G04154076Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY
    1. Insert the floor shift parking lock cable end rod in the slit of the shift lever plate.
    2. Insert the casing cap of the cable into the shift lever plate through-hole.

      HINT:

      Check that it is inserted securely.

      Fig 3: Inserting Casing Cap Of Cable Into Shift Lever Plate
      G04154077Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Insert the lever pin into the hole in the floor shift parking lock cable end.

      HINT:

      • At this time, ensure that the shift lever is in the N position.
      • After installation, make sure that the lever pin is pulled by the floor shift parking lock cable and is stopped with the stopper.

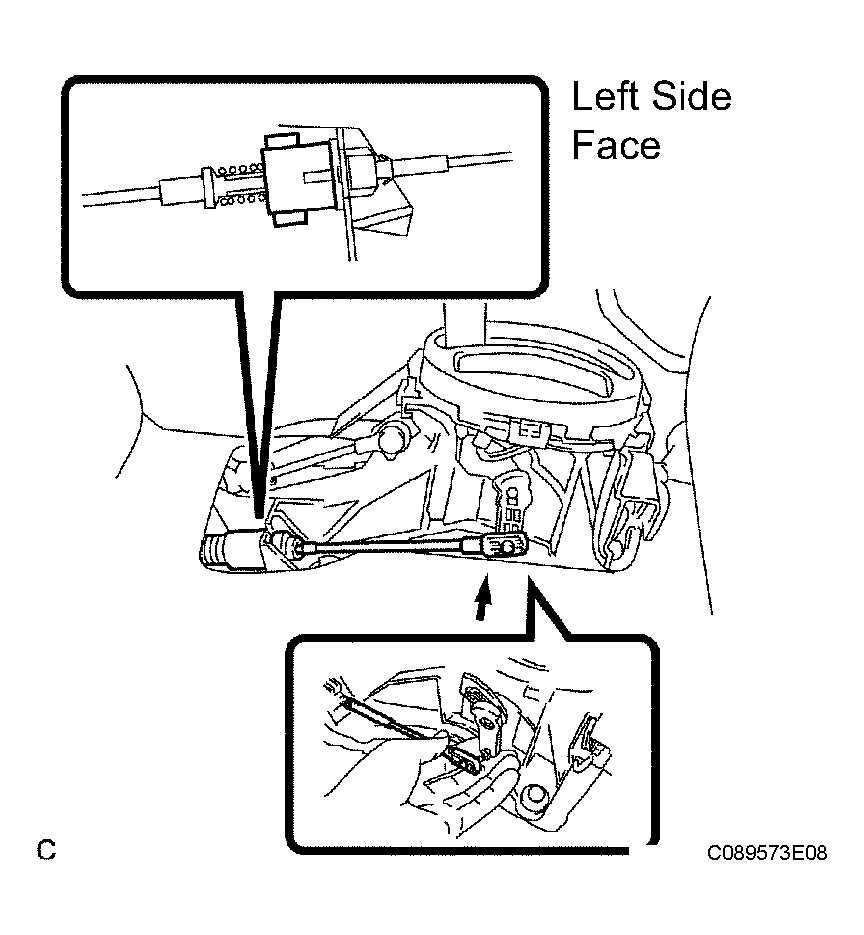

        Fig 4: Inserting Lever Pin Into Hole In Floor Shift Parking Lock Cable End
        G04154078Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Hold the slide cap and move it back and forth. Check that the spring for automatic adjustment works properly.
      Fig 5: Checking Spring Automatic Adjustment
      G04154079Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Rotate the adjust lock cap counterclockwise by 90°so that it faces the front of the vehicle, and attach it.

      HINT:

      • Install the floor shift parking lock cable on the shift lever side with the ignition switch in the ACC position.
      • Make sure the slide amount of the spring for automatic adjustment is 8 mm (0.31 in.).
        Fig 6: Adjusting Lock Cap
        G04154080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT AND ADJUST SHIFT LEVER POSITION
    1. Check that the starter operates when the shift lever is in the P or N position and does not operate in other position.
    2. Operate the shift lever and check that the reading on the indicator matches the actual position.
    3. Check that the ignition key can be pulled out with the shift lever in the P position.
    4. Check that the ignition switch cannot be turned to the LOCK position with the shift lever in any position other than P.
    5. Check that the shift lever can be shifted from the P position to other positions when the shift lock release button is pressed.
  5. INSPECT SHIFT LEVER POSITION
    1. Inspect the shift lever position (see ADJUSTMENT  ).
  6. ADJUST SHIFT LEVER POSITION
    1. Adjust the shift lever position (see ADJUSTMENT  ).
  7. INSTALL REAR CONSOLE BOX ASSEMBLY
    1. Install the console box to the vehicle with the screw.
      NOTE: While installing the console box sub-assembly, pay attention not to damage the shift lever knob and the indicator housing.
  8. INSTALL CONSOLE BOX CARPET
  9. INSTALL CONSOLE BOX REAR COVER
    Fig 7: Installing Rear Console Box Assembly
    G04154081Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
