Intermediate Shaft: Reassembly

  1. INSTALL DIRECT CLUTCH DRUM O-RING
    1. Coat the 2 O-rings with ATF, and install it to the direct clutch drum.
      NOTE: Be careful not to damage the O-rings.

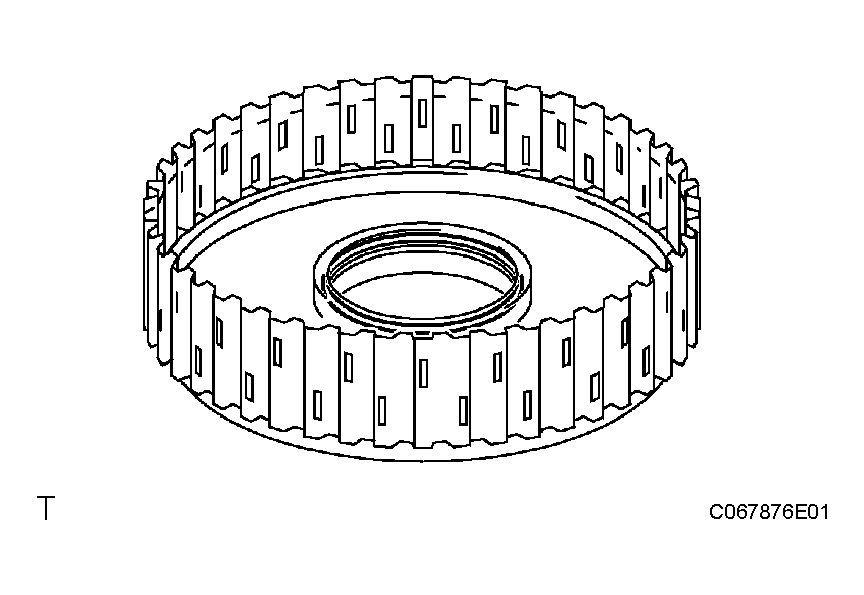

      Fig 1: Installing Direct Clutch Drum O-Ring
      G04154403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL DIRECT CLUTCH PISTON O-RING
    1. Coat the 2 O-rings with ATF, and install it to the direct clutch piston.
      NOTE: Be careful not to damage the O-rings.
  3. INSTALL DIRECT CLUTCH DRUM SUB-ASSEMBLY
    1. Coat the direct clutch drum with ATF.
      Fig 2: Installing Direct Clutch Piston O-Ring
      G04154404Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Aligning the cutout in the intermediate shaft with the matchmark on the direct clutch drum, install the direct clutch drum to the intermediate shaft.
      NOTE: Be careful not to damage the O-ring and the lip of the clutch drum.

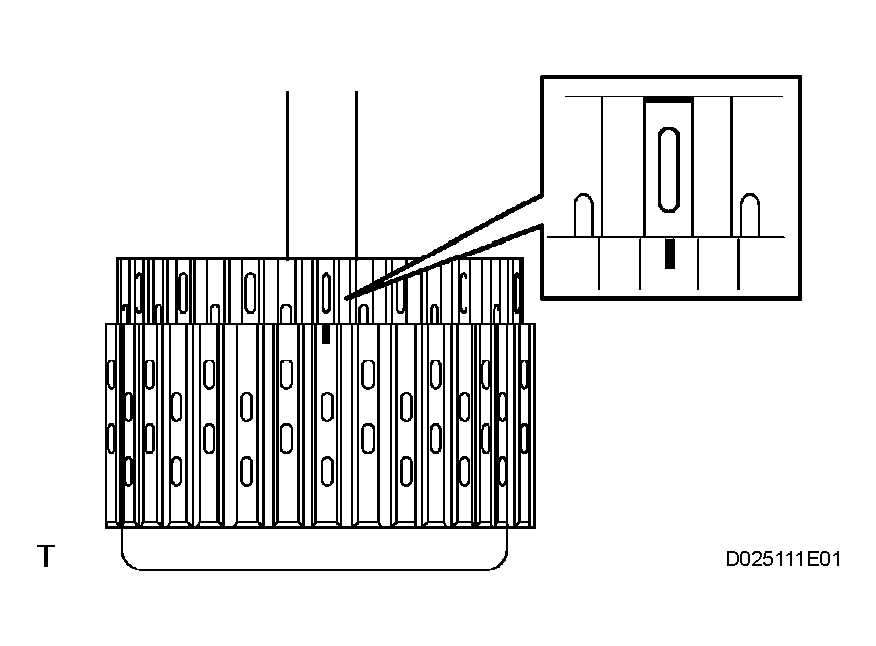

      Fig 3: Aligning Cutout In Intermediate Shaft With Matchmark On Direct Clutch Drum
      G04154405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL DIRECT CLUTCH PISTON SUB-ASSEMBLY
    1. Coat the direct clutch piston with ATF, and install it to the intermediate shaft.
      NOTE: Do not damage the O-ring of the direct clutch piston.

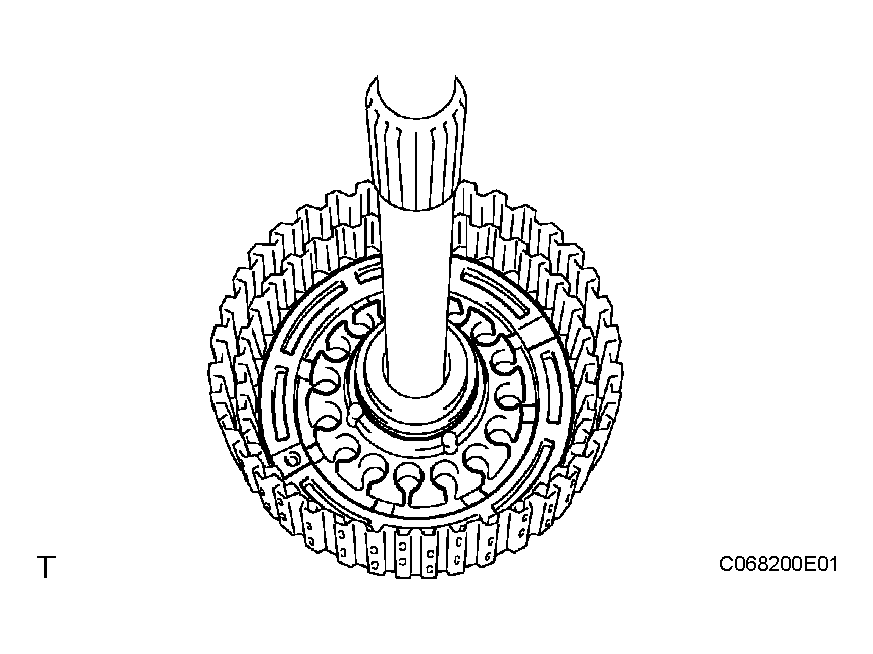

      Fig 4: Installing Direct Clutch Piston Sub-Assembly
      G04154406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL DIRECT CLUTCH RETURN SPRING SUBASSEMBLY
    1. Install the direct clutch return spring on the direct clutch piston.
    2. Place SST on the piston return spring and compress the springs with a press.

      SST 09387-00020

    3. Using a snap ring expander, install the snap ring from the direct clutch drum.
      NOTE:
      • Stop the press when the spring sheet is lowered to 1 to 2 mm (0.039 to 0.078 in.) from the snap ring groove, preventing the spring sheet from being deformed.
      • Do not expand the snap ring excessively.

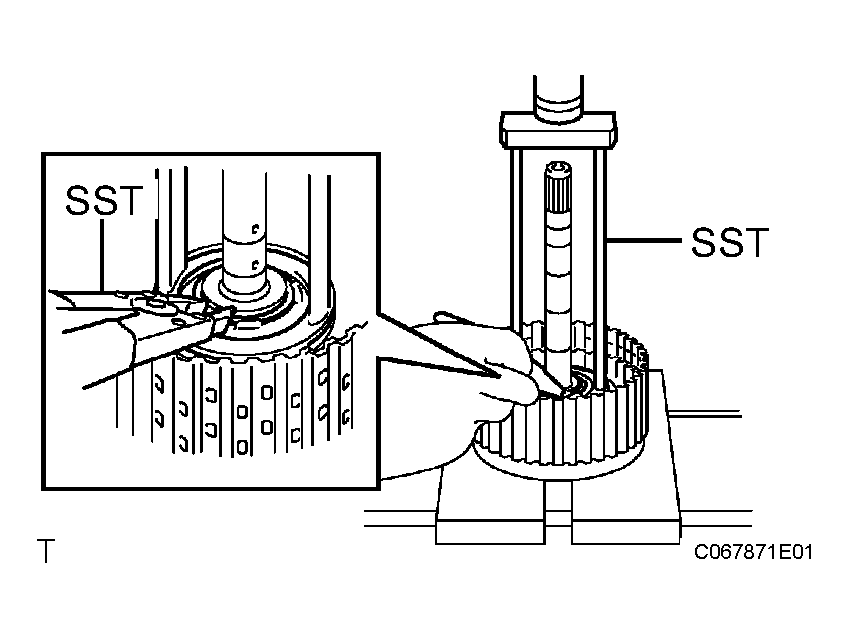

      Fig 5: Installing Direct Clutch Return Spring Subassembly
      G04154407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL DIRECT CLUTCH DISK
    1. Coat the 3 plates, 3 discs and flange with ATF, and install them to the intermediate shaft.
    2. Install the snap ring.
      Fig 6: Installing Direct Clutch Disk
      G04154408Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL REVERSE CLUTCH DISC
    1. Install the 2 plates, 2 discs and flange.
    2. Install the snap ring.
      Fig 7: Installing Reverse Clutch Disc
      G04154409Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSPECT PACK CLEARANCE OF REVERSE CLUTCH
    1. Install the forward reverse clutch and thrust needle roller bearing on the transaxle rear cover.
    2. Using a dial indicator, measure the reverse clutch pack clearance while applying and releasing compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi).

      Standard pack clearance: 0.86 to 1.26 mm (0.0339 to 0.0496 in.)

      If the pack clearance is less than the limit of pack clearance, parts may have been assembled incorrectly. Check and reassemble.

      If the pack clearance is non-standard, select another flange.

      HINT:

      There are 4 flanges with different thickness.

      Fig 8: Inspecting Pack Clearance Of Reverse Clutch
      G04154410Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard flange thickness

      STANDARD FLANGE THICKNESS

      No. Thickness No. Thickness
      - 3.0 mm (0.118 in.) 2 3.4 mm (0.134 in.)
      1 3.2 mm (0.126 in.) 3 3.6 mm (0.142 in.)
  9. INSPECT PACK CLEARANCE OF DIRECT CLUTCH
    1. Install the direct and reverse clutch and thrust needle roller bearing on the transaxle rear cover.
    2. Using a dial indicator and measuring terminal (SST), measure the forward clutch pack clearance while applying and releasing compressed air (392 kPa, 4.0 kgf/cm2 , 57 psi).

      SST 09350-36010

      HINT:

      The direct and reverse clutch will come out as you apply the compressed air. Therefore, while the checking is being done, press on the input shaft of the direct and reverse clutch using a stamping machine or equivalent so that the pressure is not applied on the direct and reverse clutch.

      Standard pack clearance: 0.62 to 1.02 mm (0.0244 to 0.0402 in.)

      If the pack clearance is less than the limit of pack clearance, parts may have been assembled incorrectly. Check and reassemble.

      If the pack clearance is non-standard, select another flange.

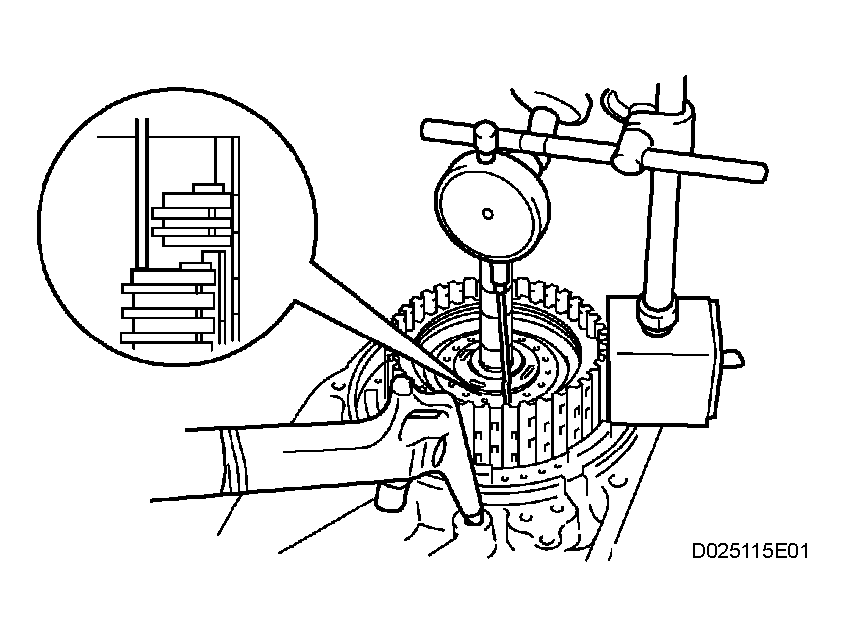

      Fig 9: Inspecting Pack Clearance Of Direct Clutch
      G04154411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      There are 4 flanges with different thickness.

      Standard flange thickness

      STANDARD FLANGE THICKNESS

      No. Thickness No. Thickness
      - 3.0 mm (0.118 in.) 2 3.4 mm (0.134 in.)
      1 3.2 mm (0.126 in.) 3 3.6 mm (0.142 in.)
