System Diagram

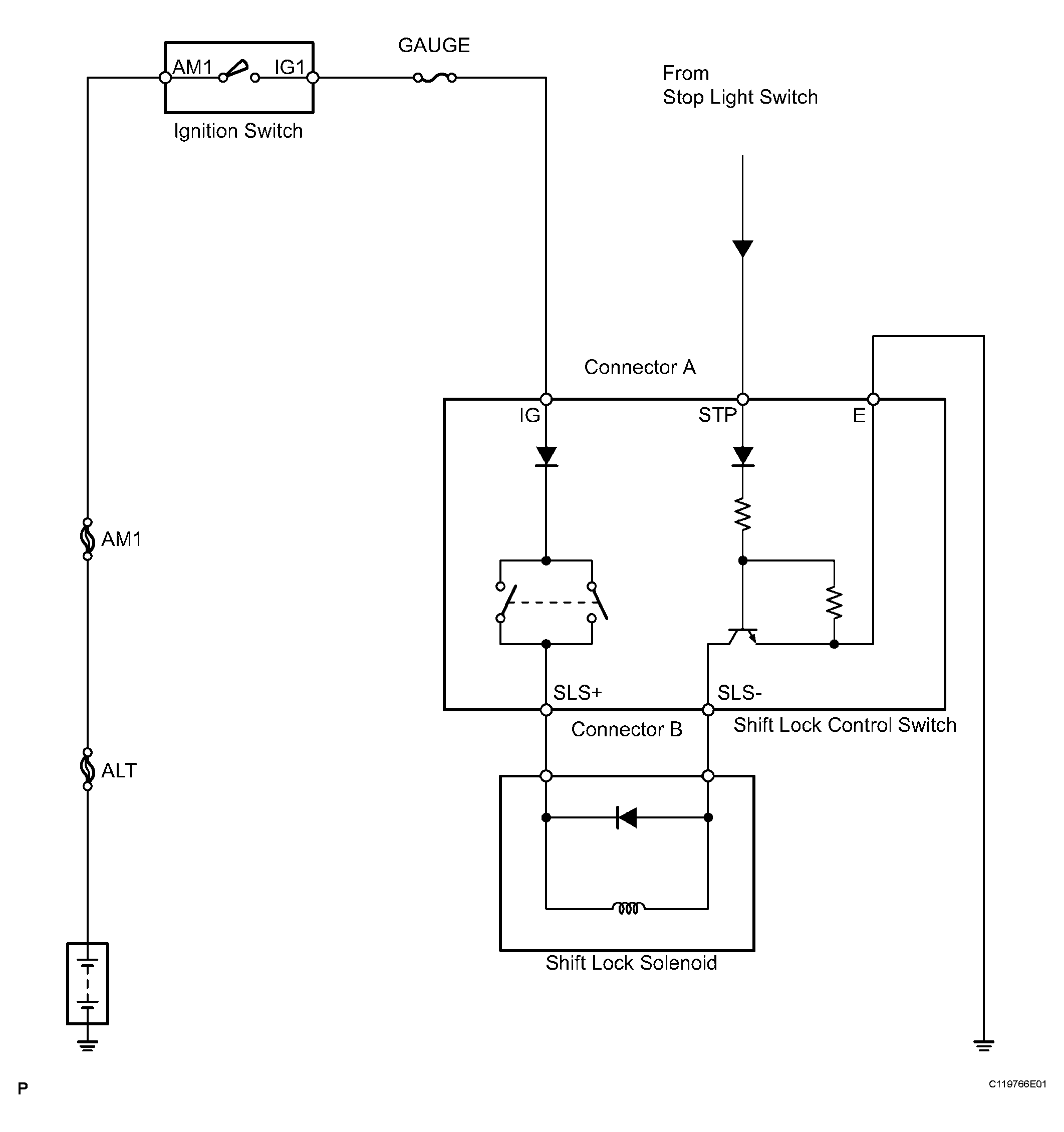

Fig 1: Identifying Shift Lock System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The shift lock control switch turns ON when the shift lever is in the P position, and turns OFF when the shift lever is not in the P position.
