Transaxle Rear Cover: Components

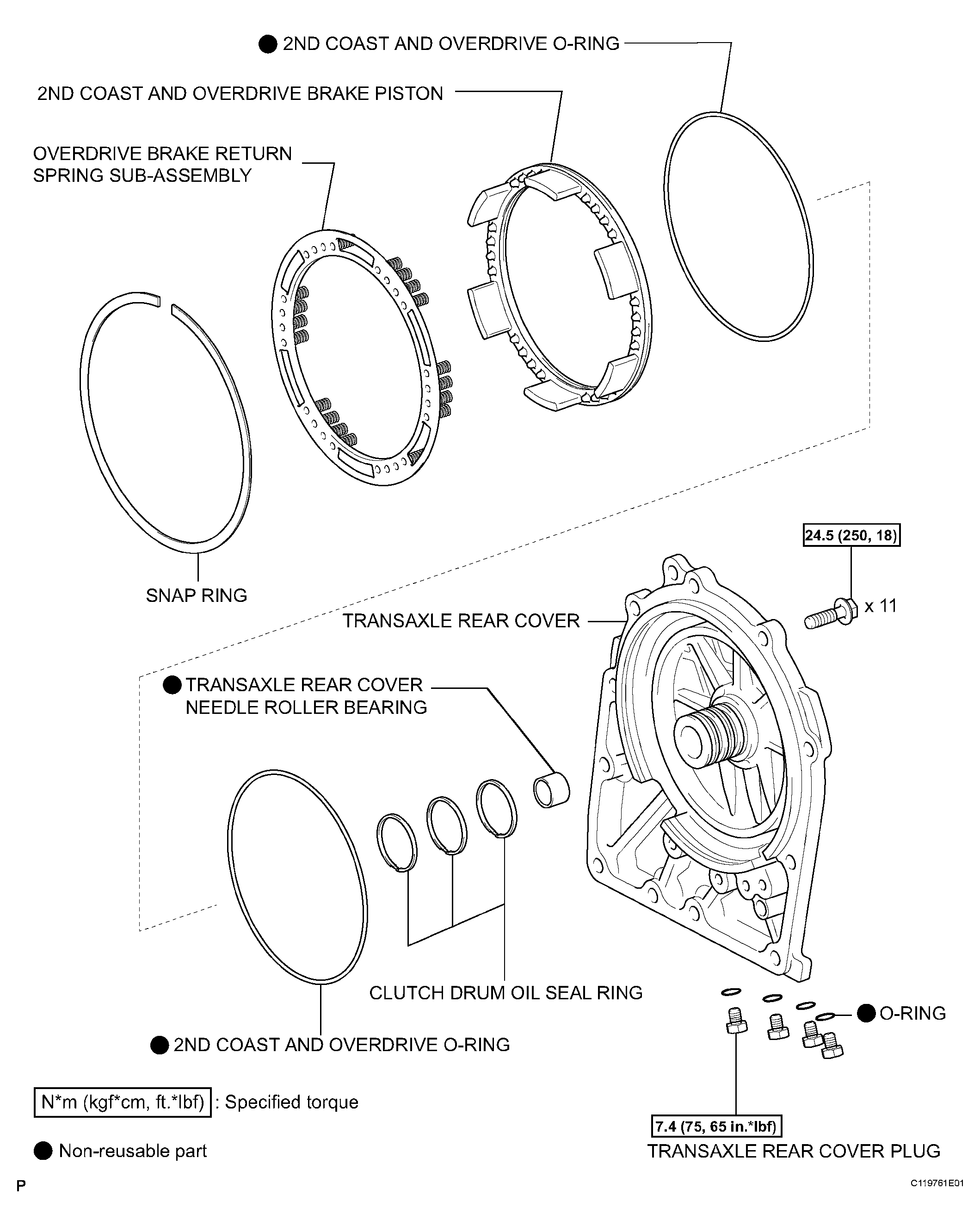

Fig 1: Identifying Transaxle Rear Cover Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
