Transmission Revolution Sensor: Components

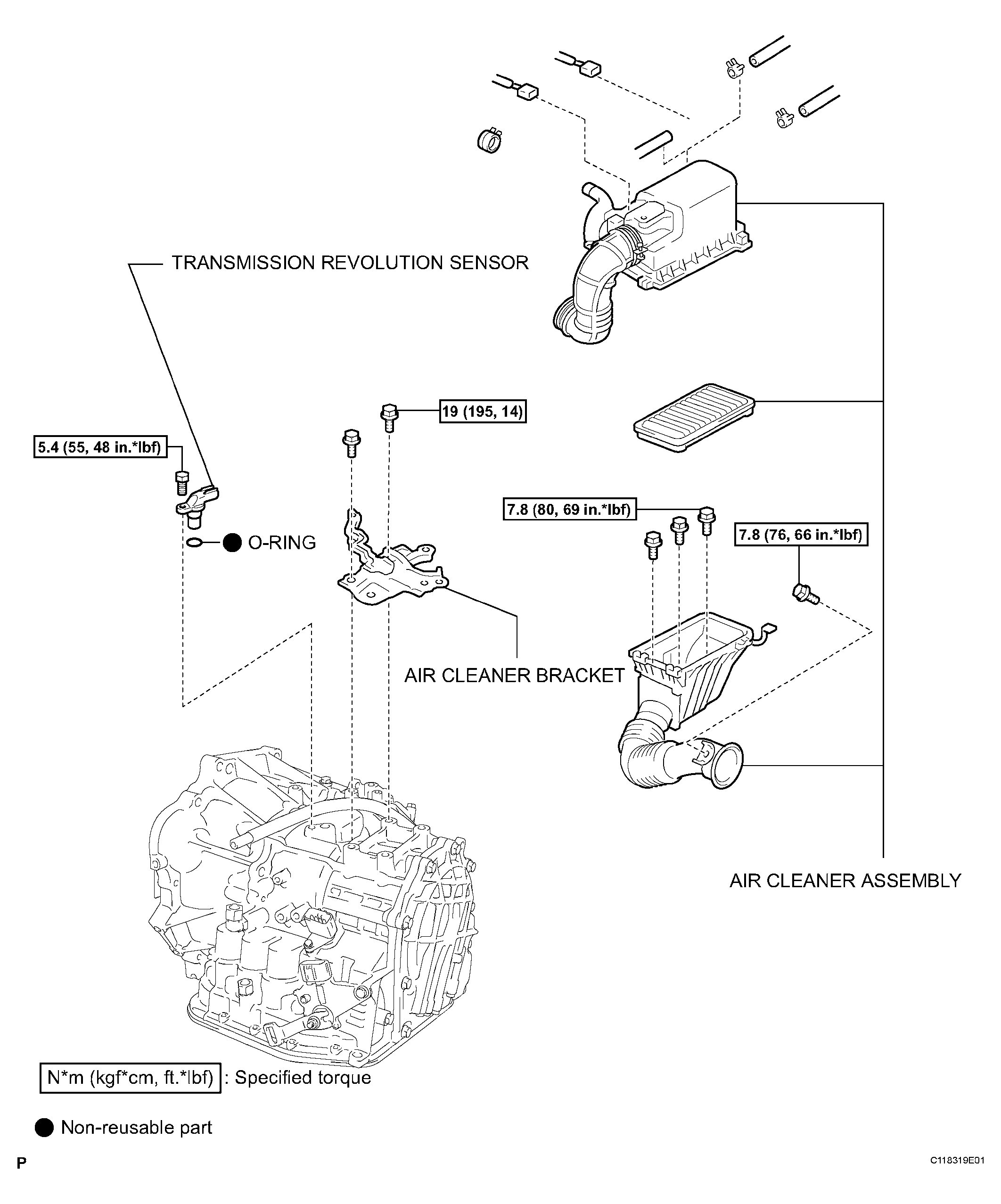

Fig 1: Identifying Transmission Revolution Sensor Components
G04153963Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
