Anti-Lock Brake System

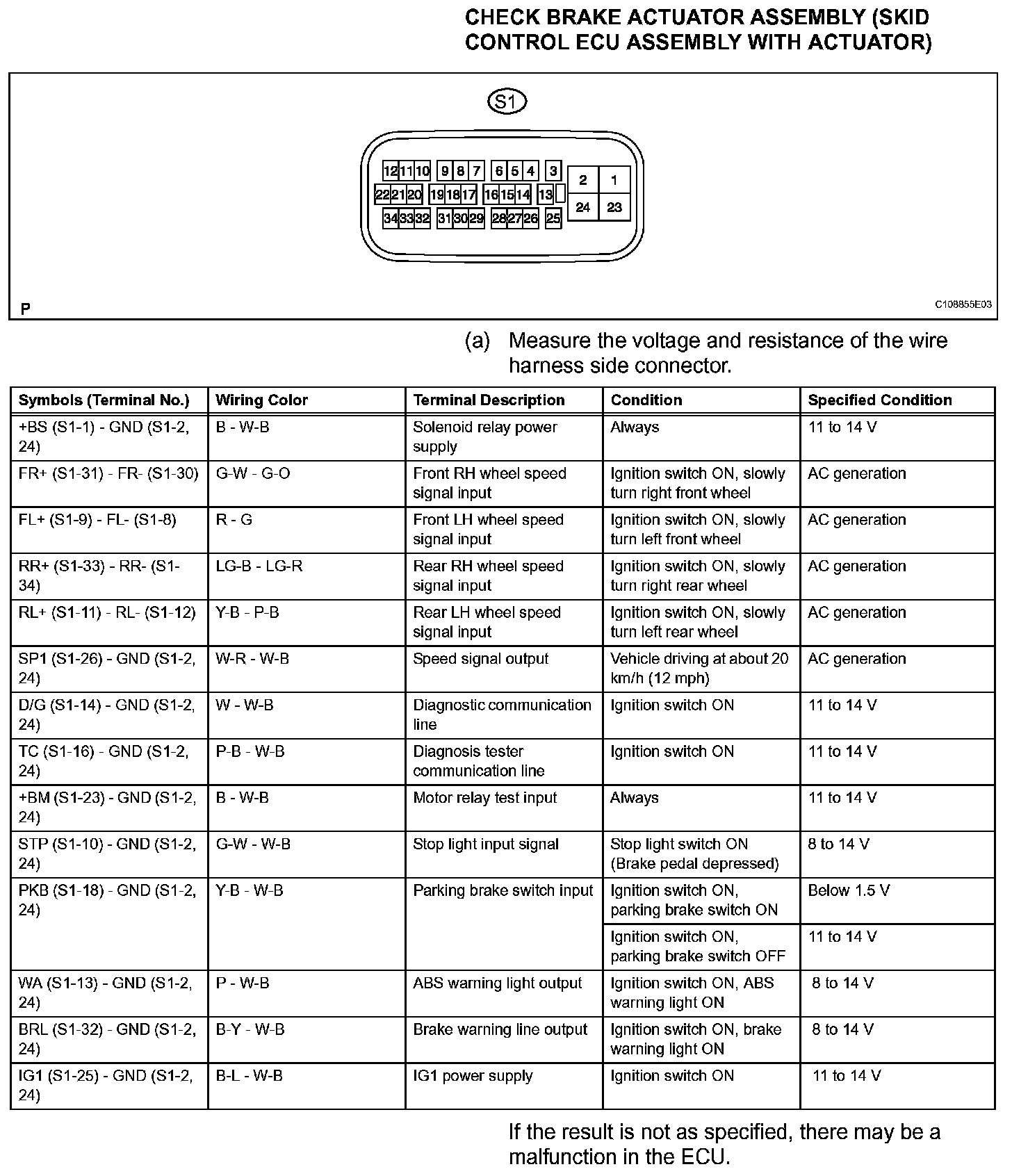

Terminals Of Control Module/Pinouts - Check Brake Actuator Assembly (Skid Control ECU Assembly With Actuator):
