Vehicle Stability Control System

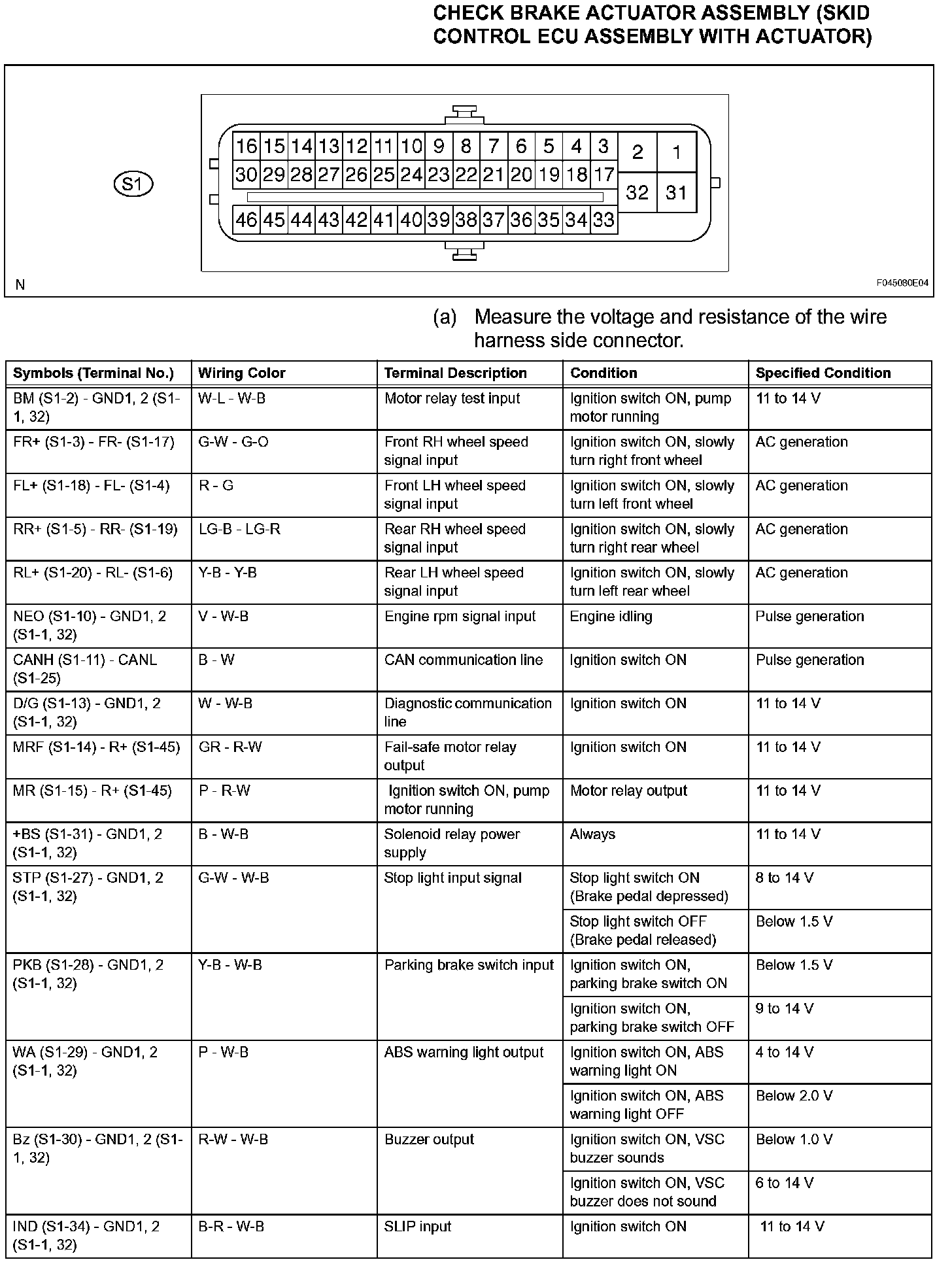

Terminals Of Control Module/Pinouts - Check Brake Actuator Assembly (Skid Control ECU Assembly With Actuator)(Part 1):

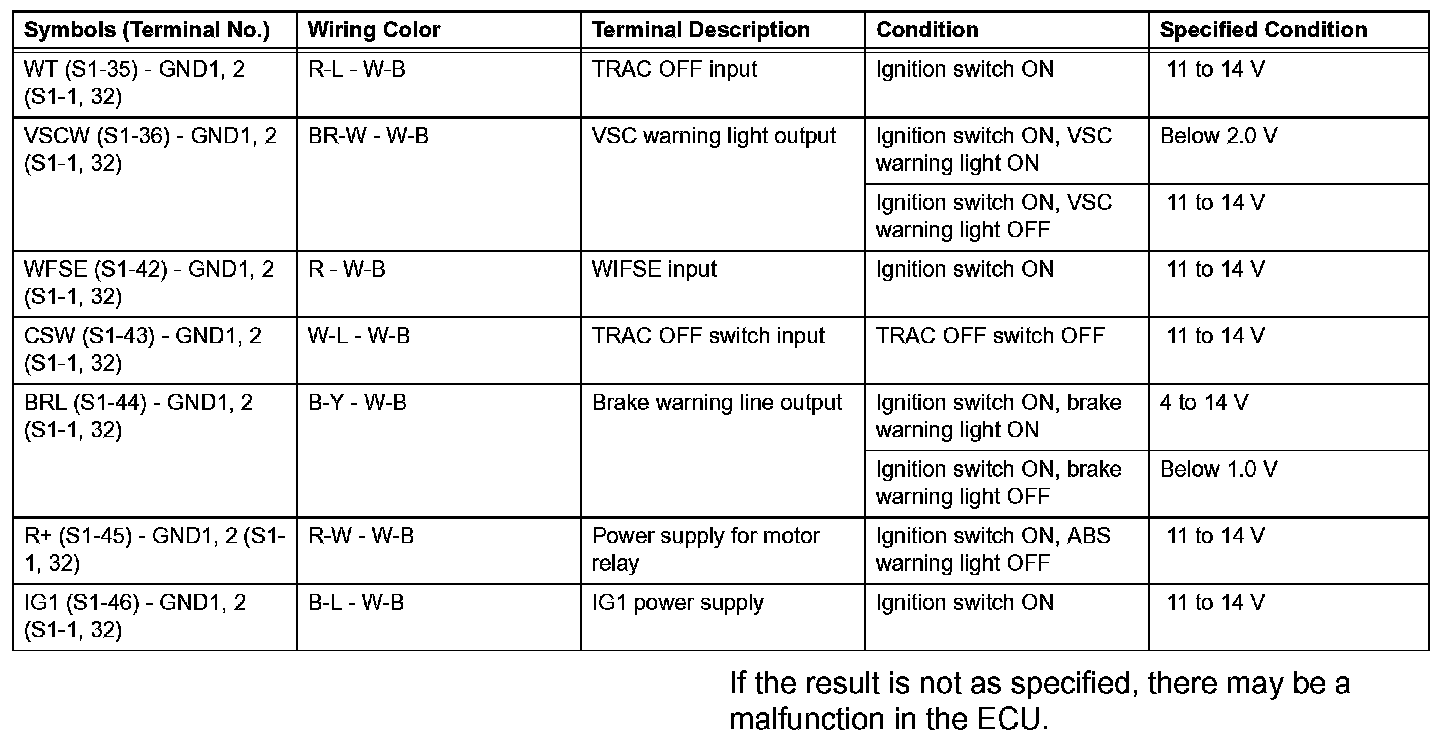

Terminals Of Control Module/Pinouts - Check Brake Actuator Assembly (Skid Control ECU Assembly With Actuator)(Part 2):
