Home >> Scion >> 2006 >> xA L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Coolant Temperature Sensor/Switch (For Computer) >> Locations
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

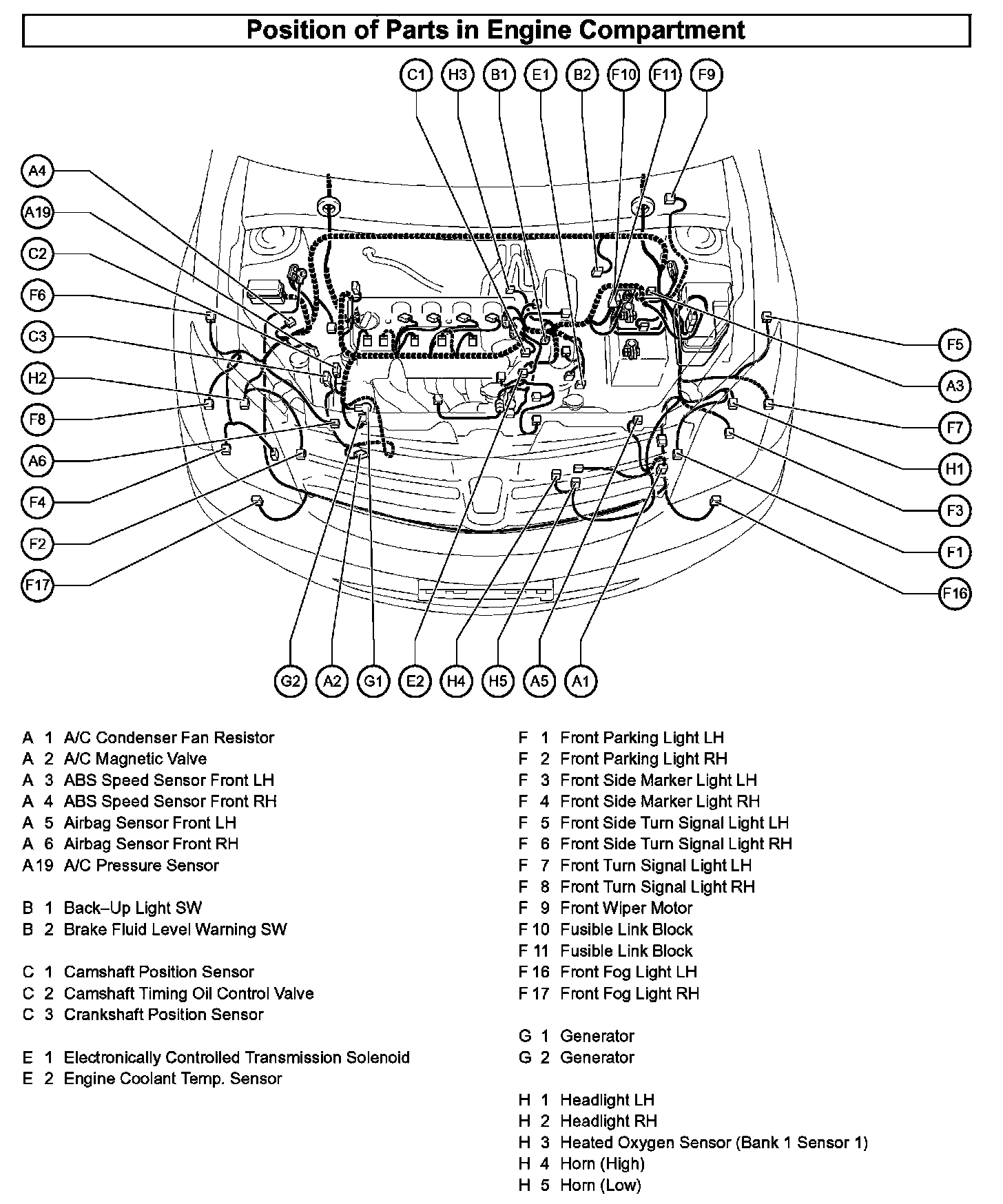

Coolant Temperature Sensor/Switch (For Computer): Locations

A/C - Ho:



Pe - Tw:
