Service Data

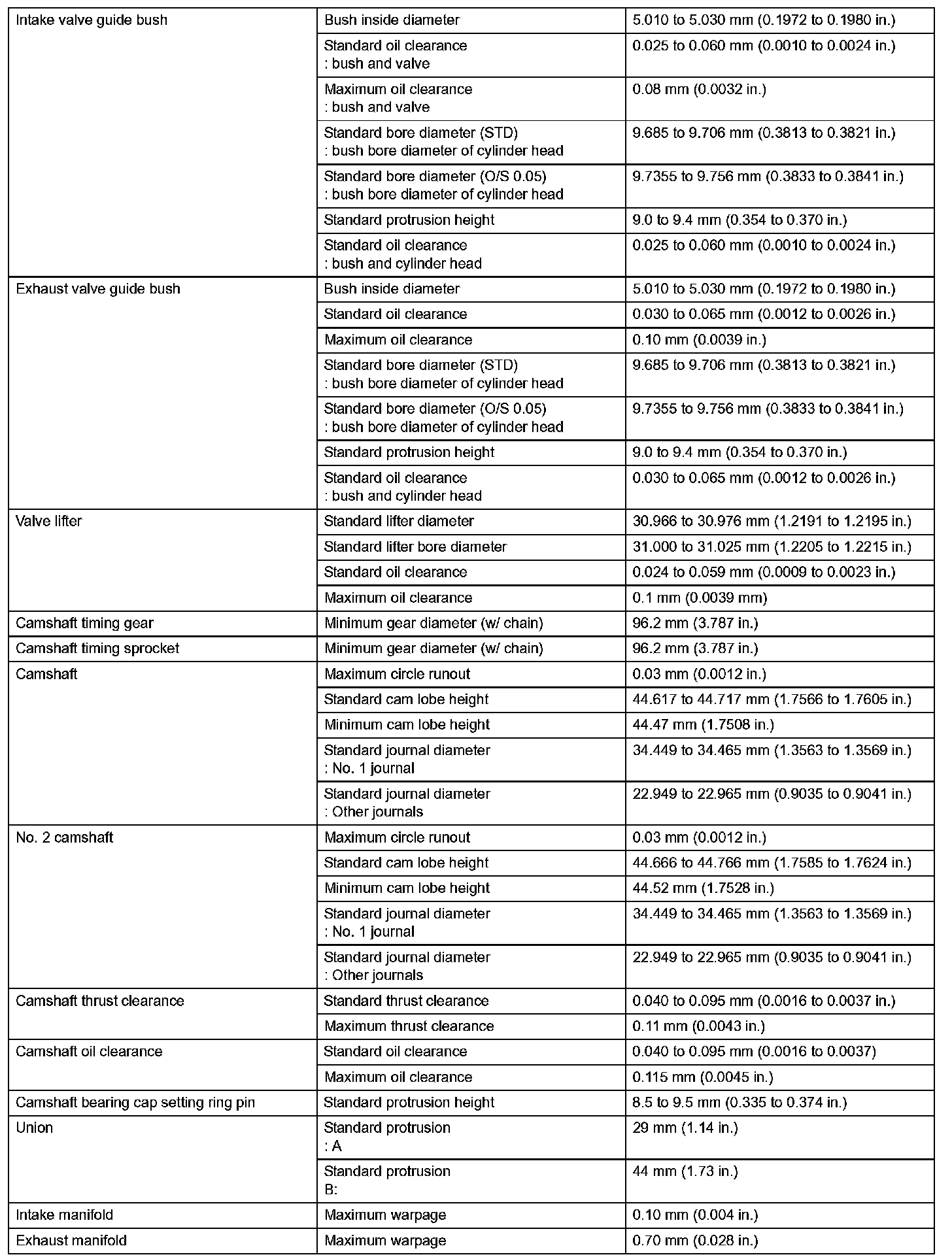

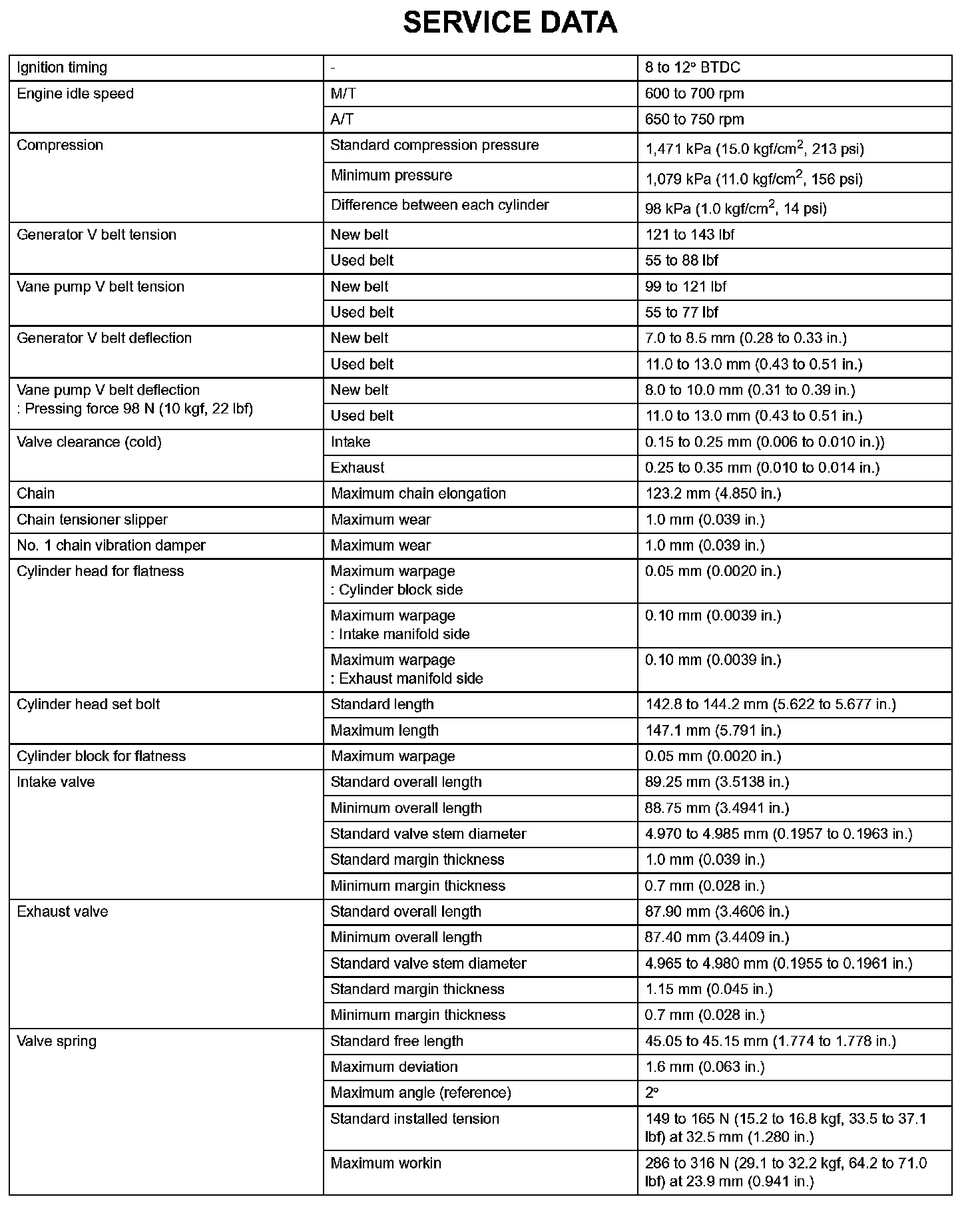

Engine Mechanical-Service Data (Part 1):

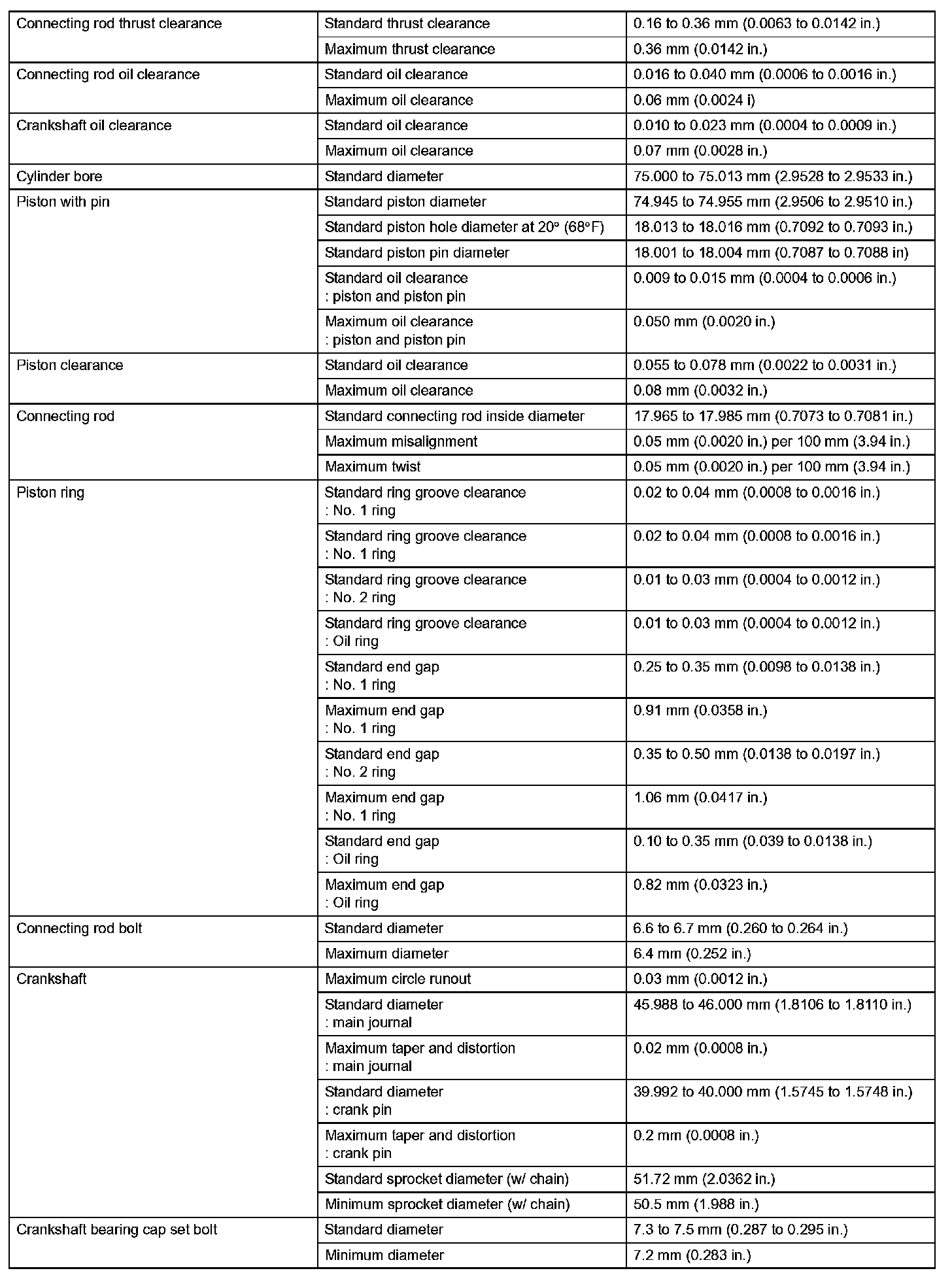

Engine Mechanical-Service Data (Part 2):



Engine Mechanical-Service Data (Part 3):
