Torque

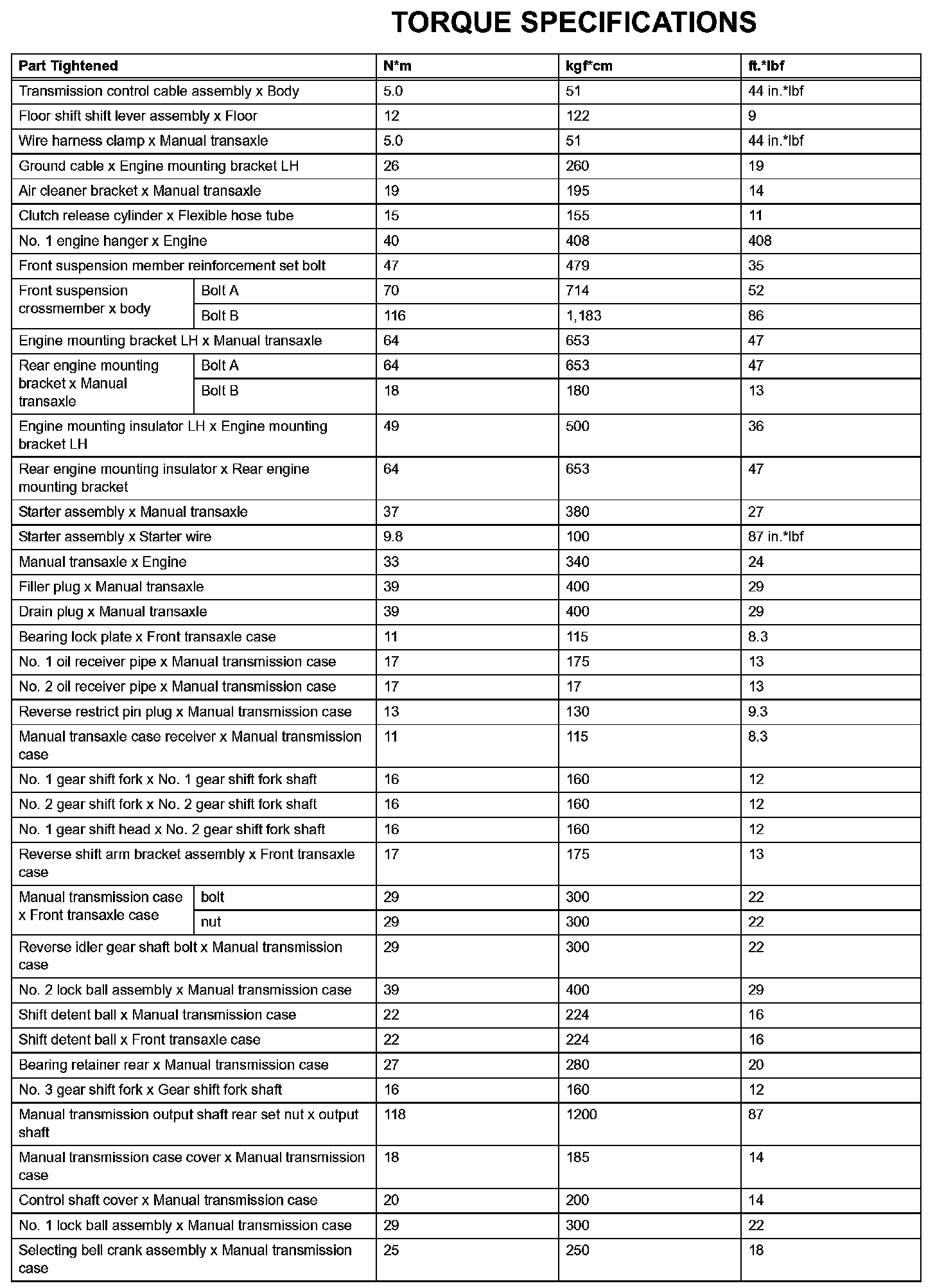

Manual Transmission-Torque Specifications (Part 1):
Manual Transmission-Torque Specifications (Part 2):
