Roof Headlining: Components

Fig 1: Identifying Roof Headlining Replacement Components (1 Of 6)
G04159355Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Roof Headlining Replacement Components (2 Of 6)
G04159356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

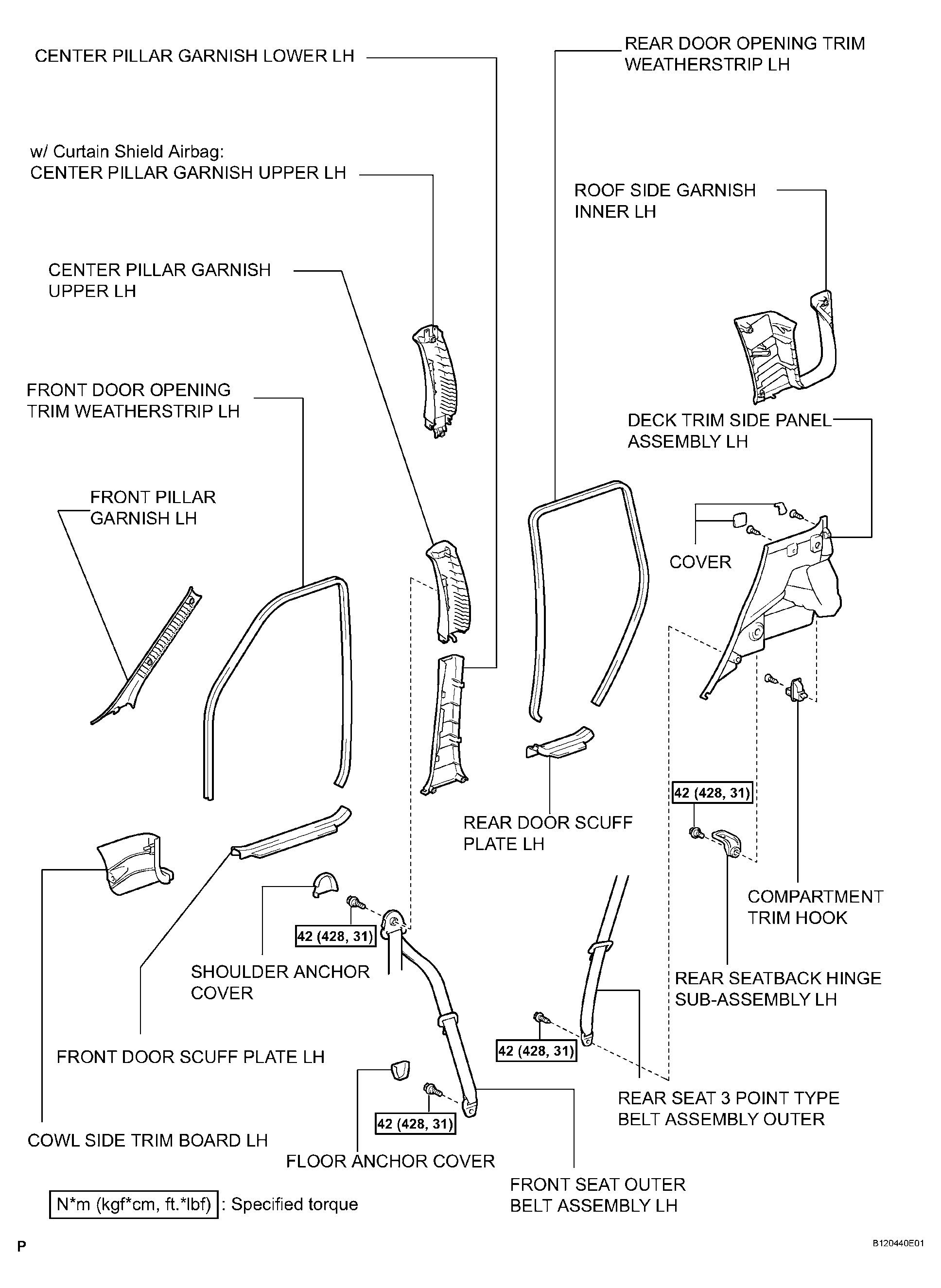

Fig 3: Identifying Roof Headlining Replacement Components (3 Of 6)
G04159357Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

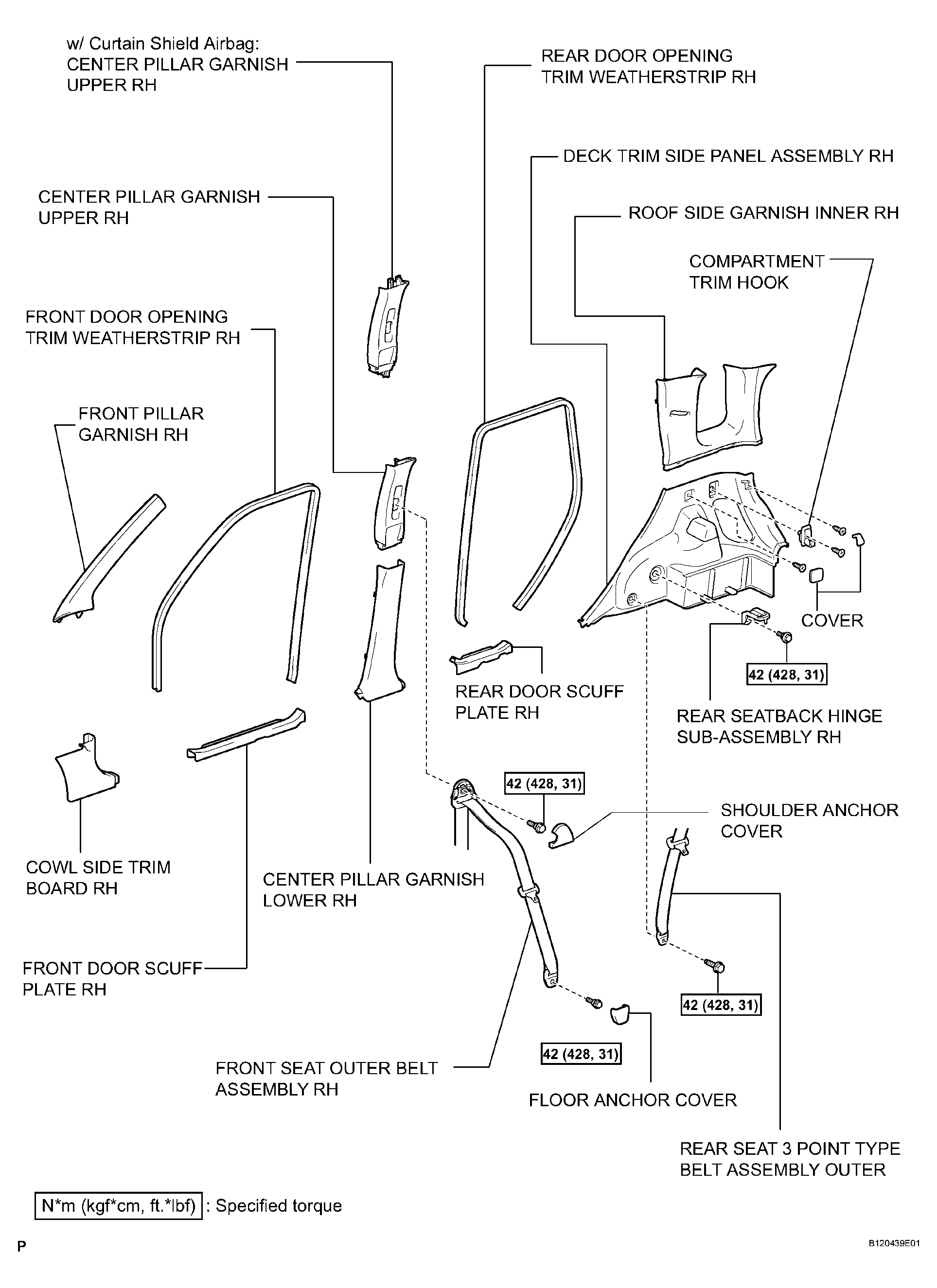

Fig 4: Identifying Roof Headlining Replacement Components (4 Of 6)
G04159358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

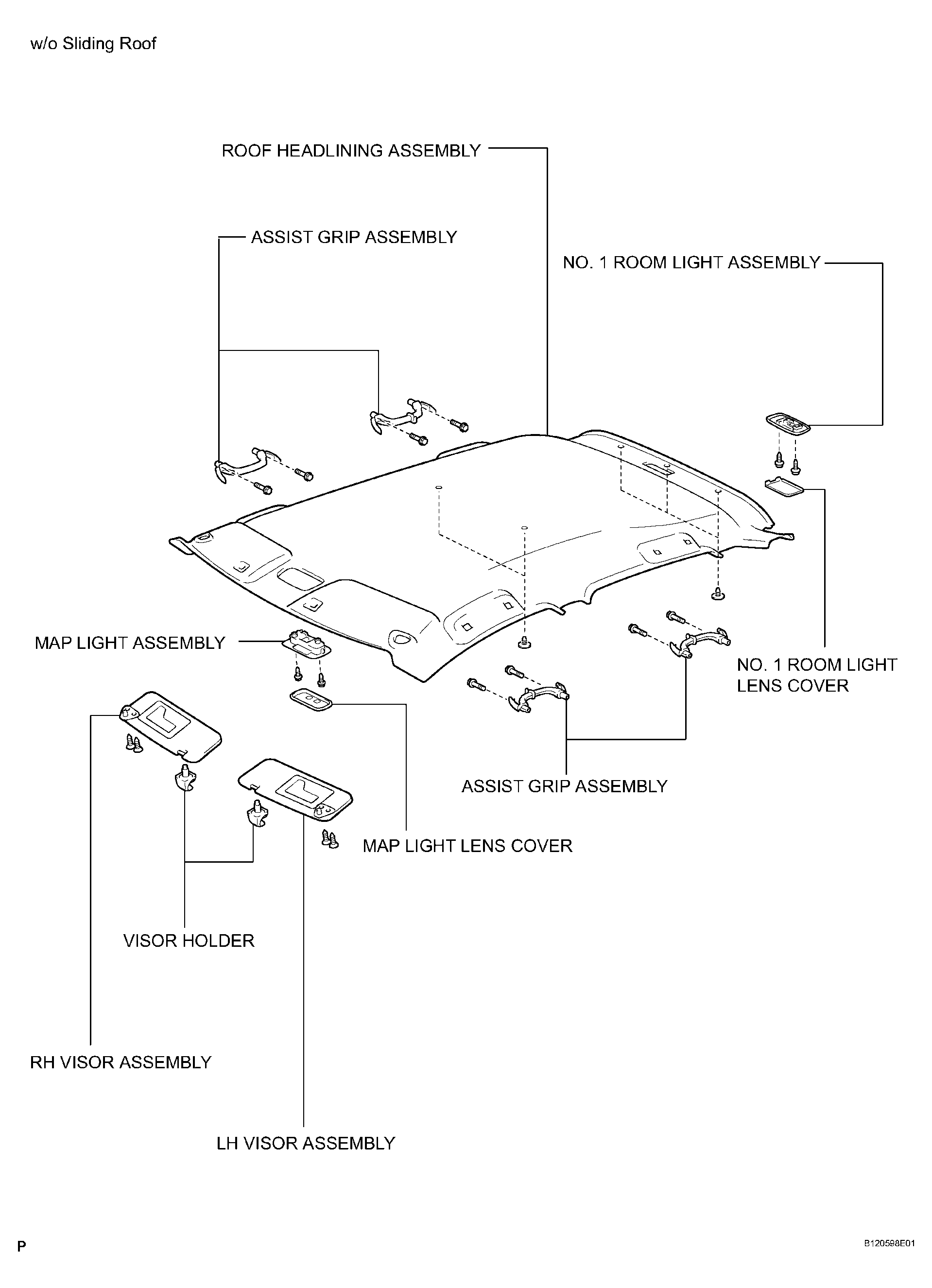

Fig 5: Identifying Roof Headlining Replacement Components (5 Of 6)
G04159359Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

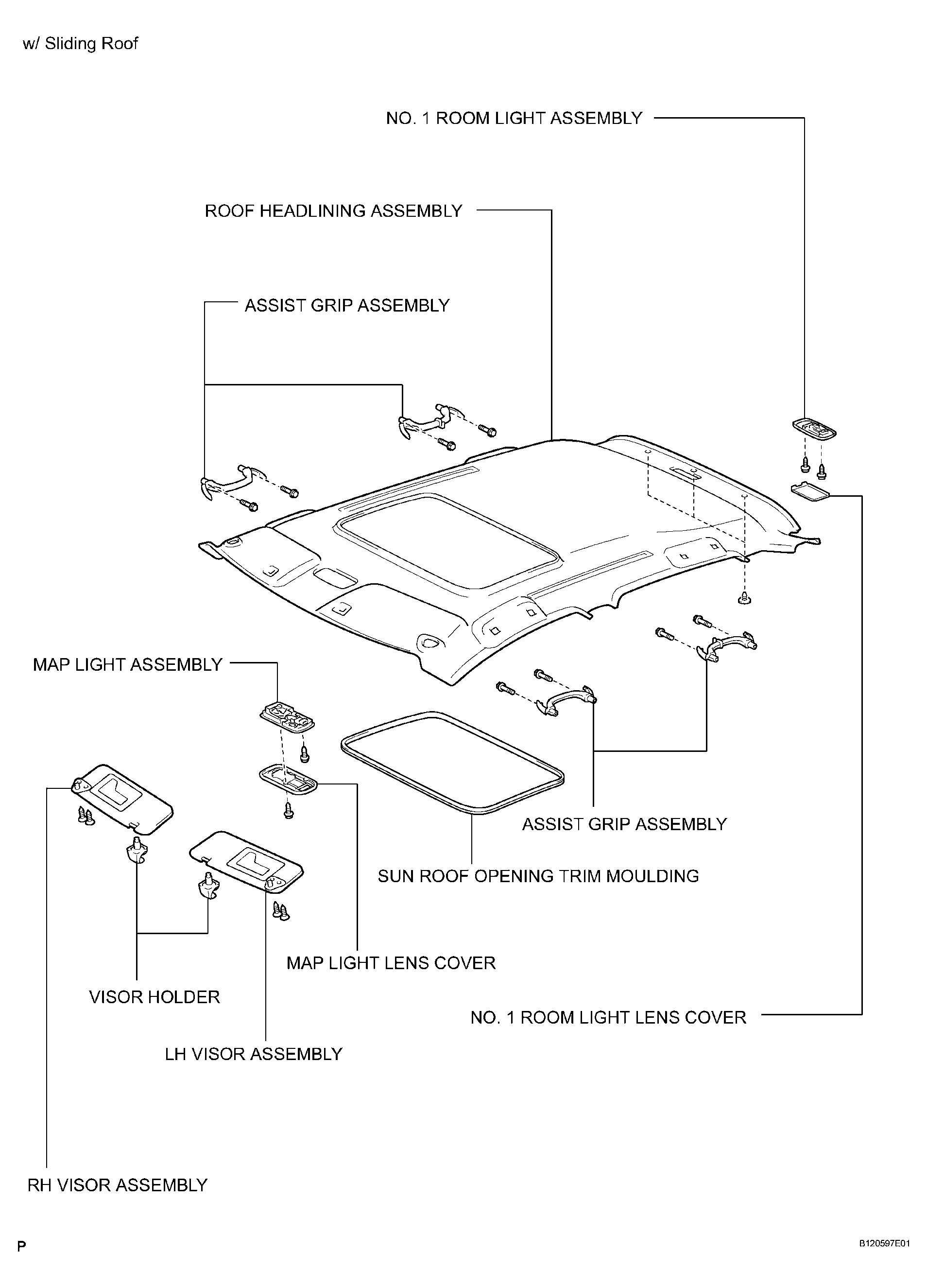

Fig 6: Identifying Roof Headlining Replacement Components (6 Of 6)
G04159360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
