Fuel Injector: Components

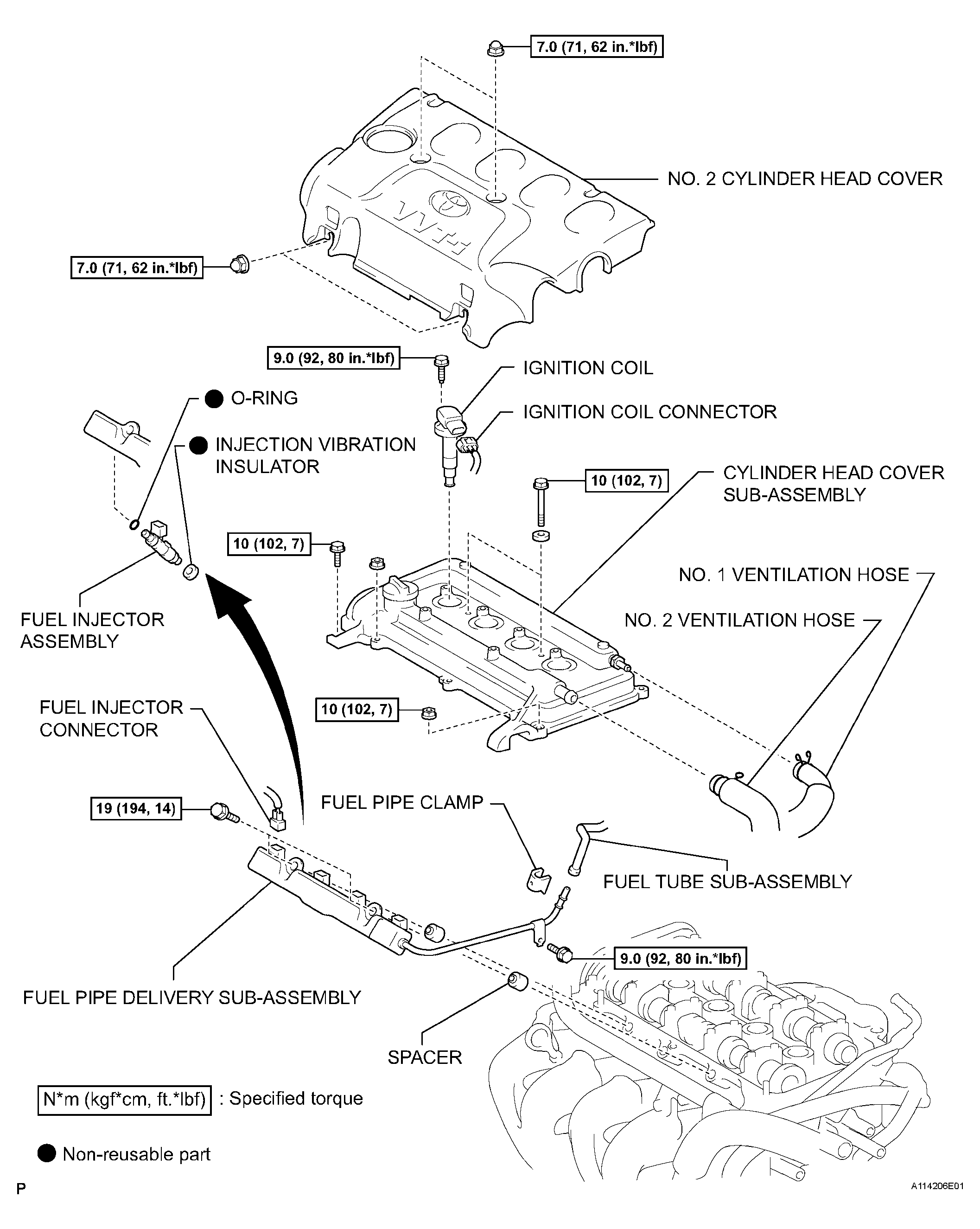

Fig 1: Identifying Fuel Injector Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
