Engine Control System (1NZ-FE): ECM: Components

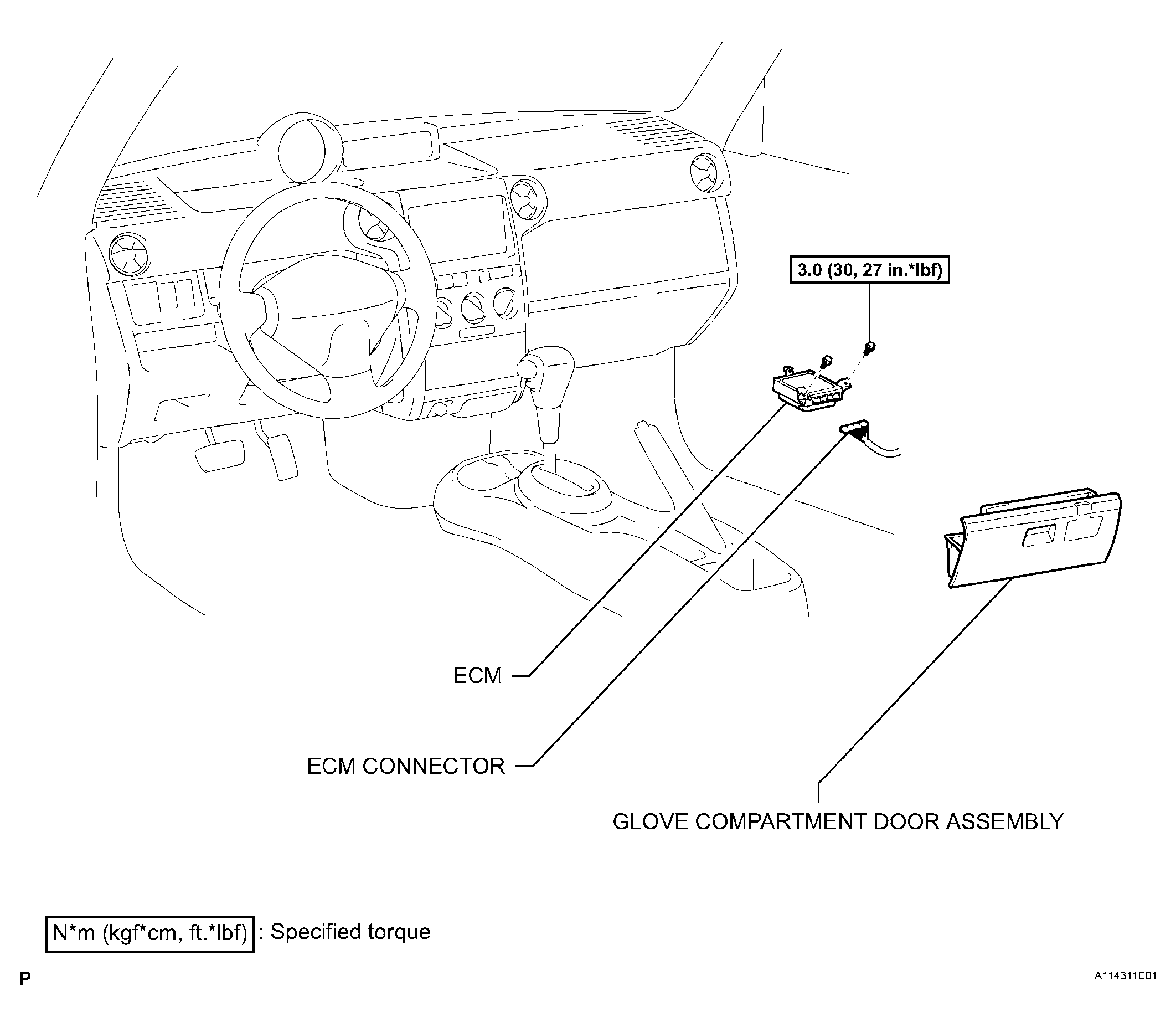

Fig 1: Identifying ECM Components
G04225774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
