Park / Neutral Position Switch: Components

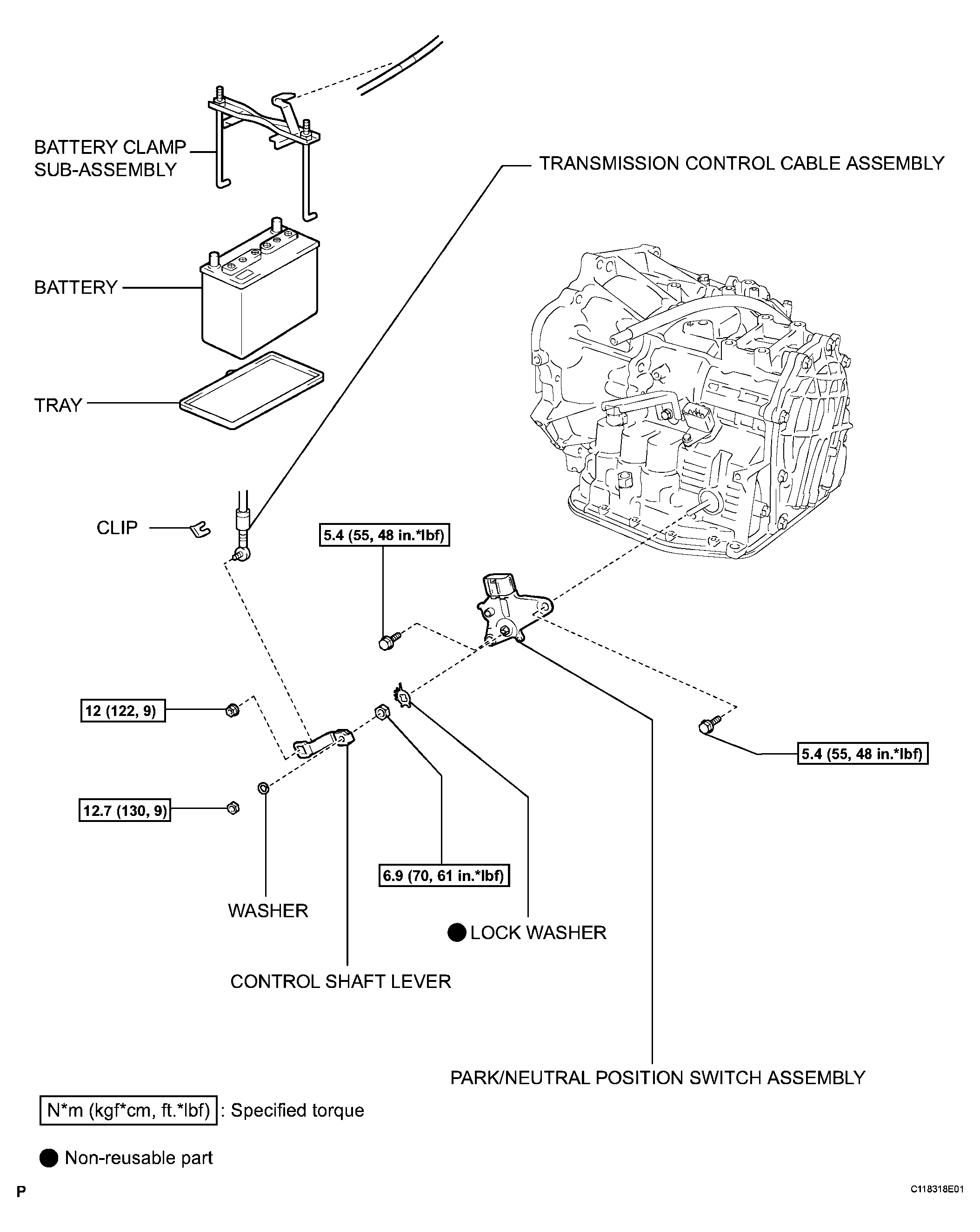

Fig 1: Identifying Park/Neutral Position Switch Components
G04227479Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
