Key Lock-In Prevention Function Does Not Work Properly

Key Lock-in Prevention Function does not Work Properly

DESCRIPTION
To prevent the key from being locked in the vehicle, the door control relay assembly prevents doors from being locked by monitoring 2 switches: 1) the unlock warning switch, which turns ON when the key is inserted into the ignition key cylinder; and 2) the front door courtesy light switch assembly (driver side), which turns ON when the driver side door is opened.

Wiring Diagram:

Step 1-2:

Step 3-4:

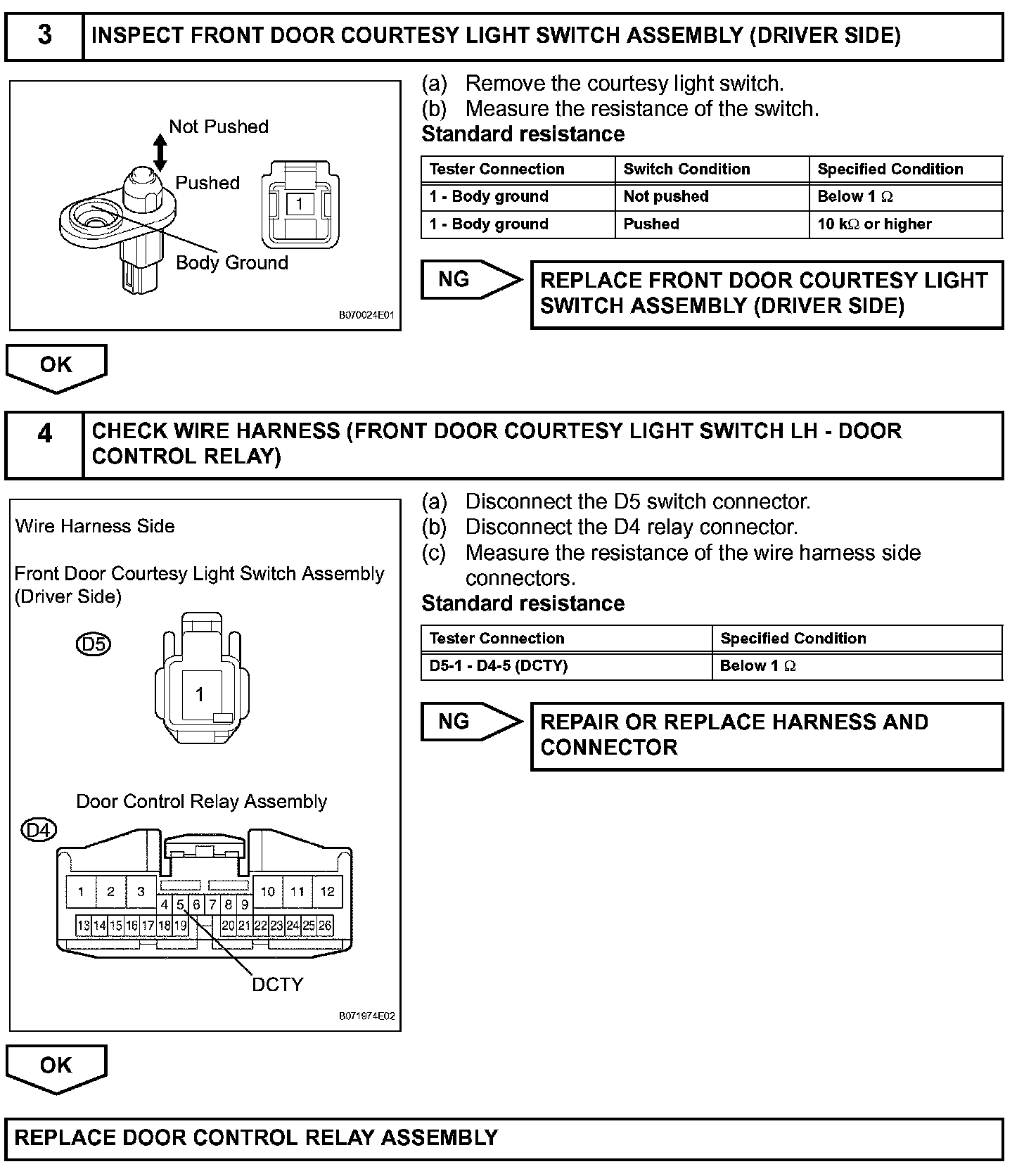

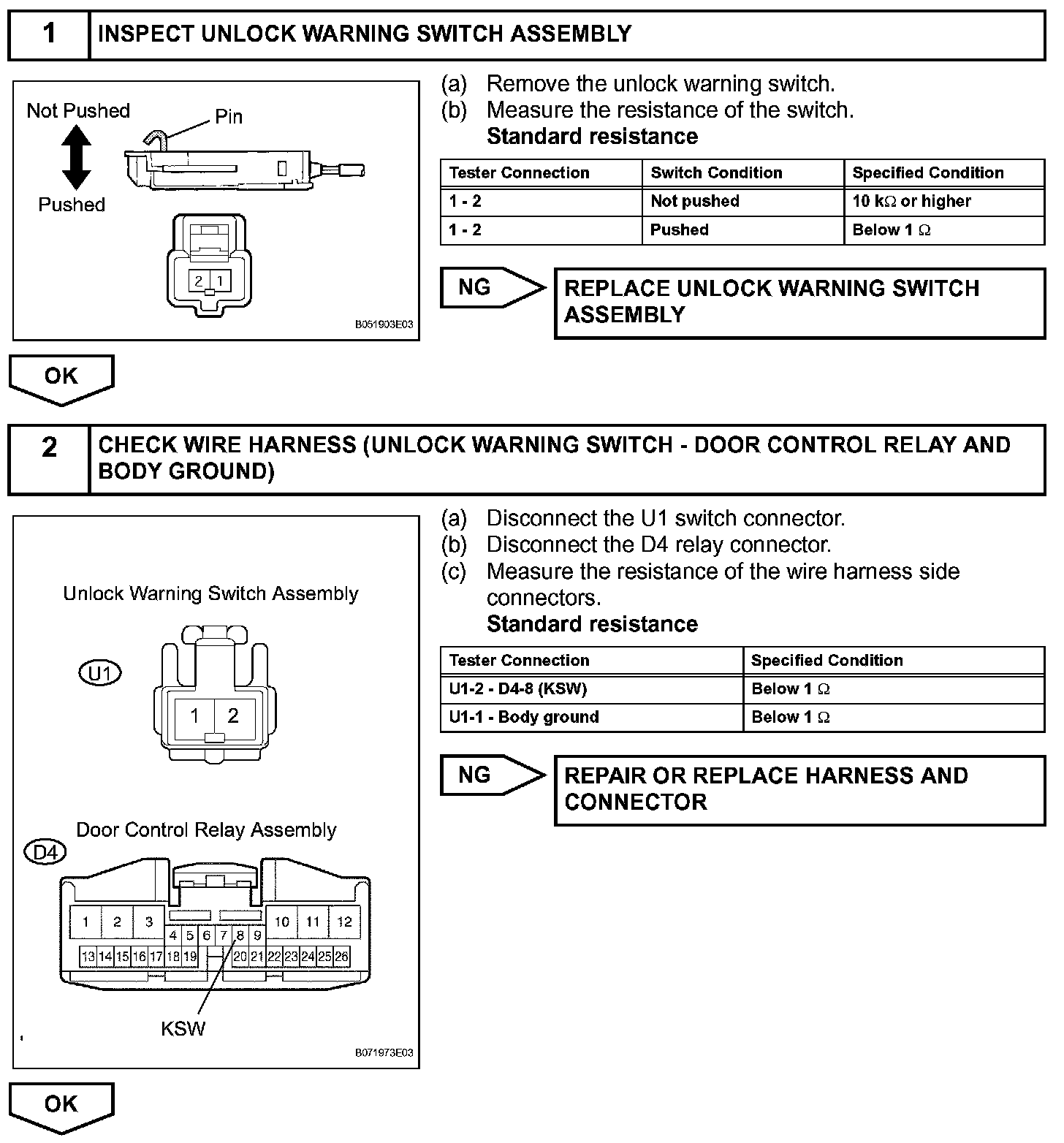

INSPECTION PROCEDURE
