Valve Body Assembly: Components

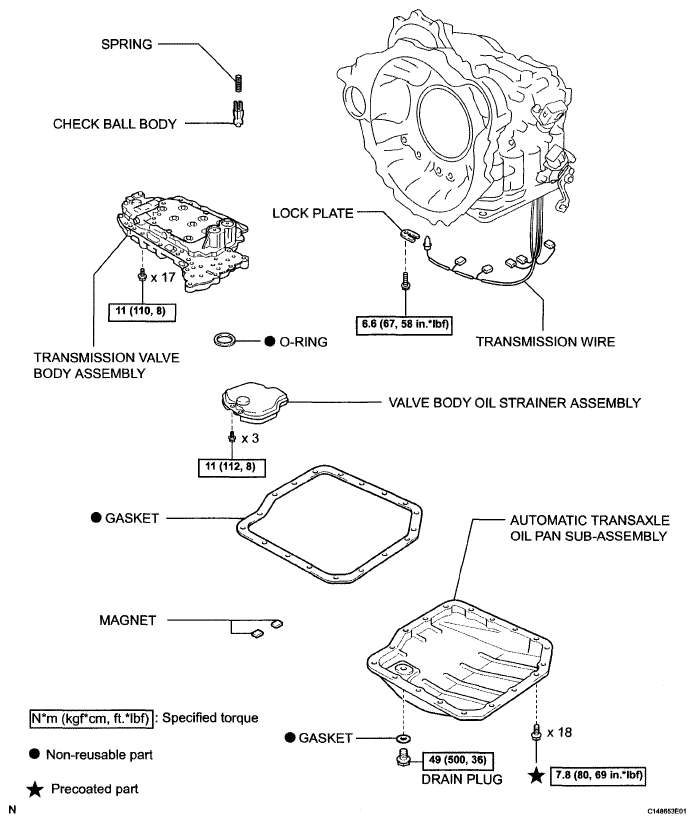

Fig 1: Identifying Valve Body Assembly Components With Specification (1 Of 2)
G04866158Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

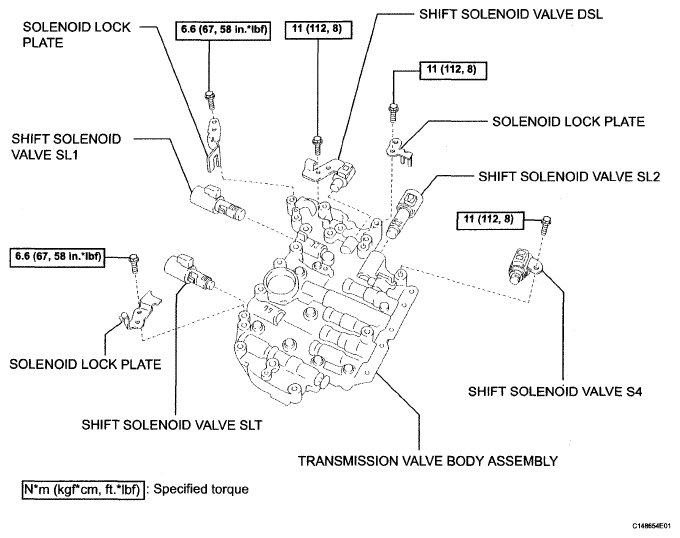

Fig 2: Identifying Valve Body Assembly Components With Specification (2 Of 2)
G04866159Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
