Light Reminder: Notes

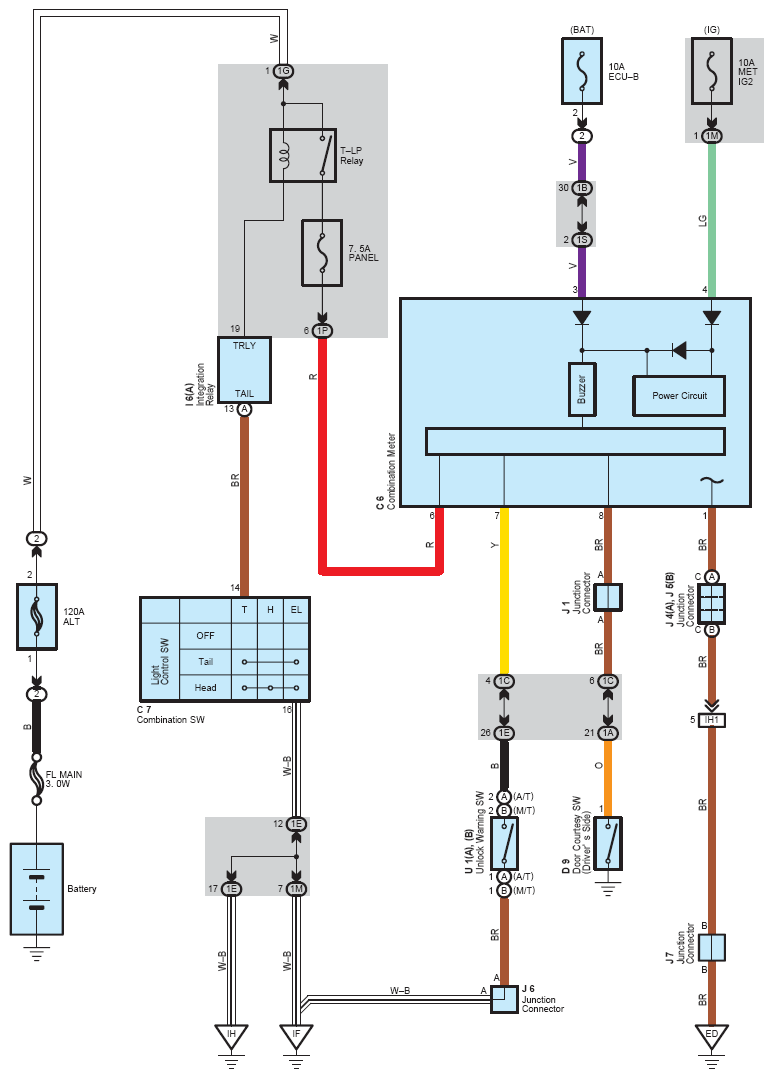

Fig 1: Light Reminder System Wiring Diagram
G08759429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
