Inspection Procedure

1. Choose the diagnosis method.
   DTC CHART



   Method	Proceed to
   Using intelligent tester	A
   Not using intelligent tester	B

B: Go to step   3

A: GO TO NEXT STEP

1. Connect the intelligent tester to the DLC3.
2. Turn the ignition switch to the ON position and turn the intelligent tester main switch on.
3. Select the item below in the "DATA LIST", and read the display on the intelligent tester.

   ECM (Cruise Control)

   DATA LIST



   Item	Measurement Item / Display (Range)	Normal Condition	Diagnostic Note
   CCS INDICATOR M	Cruise Indicator signal (Main CPU) ON or OFF	ON: "CRUISE" ON OFF: "CRUISE" OFF	-

   OK: When the cruise control main switch is operated, the display changes as shown above.

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

NG: GO TO NEXT STEP

1. Disconnect the E5 connector from the ECM.
2. Turn the ignition switch to the ON position.
3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   WIRE HARNESS STANDARD VOLTAGE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   E5-18(P1)-Body ground	Cruise main indicator light ON --> OFF (Cruise control main switch ON --> OFF)	Below 1 V --> 10 to 14 V

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

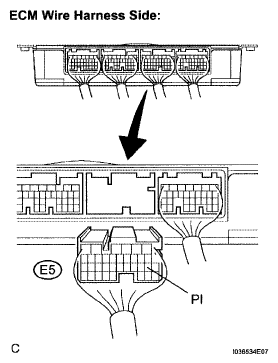

Fig 1: Identifying E5 Connector From ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: GO TO NEXT STEP

1. Disconnect the C6 combination meter connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   COMBINATION METER ASSEMBLY STANDARD VOLTAGE SPECIFCIATIONS



   Tester Connection	Condition	Specified Condition
   C6-4 - Body ground	Ignition switch OFF	Below 1 V
   C6-4 - Body ground	Ignition switch ON	10 to 14 V

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (COMBINATION METER-BATTERY)

Fig 2: Identifying C6 Combination Meter Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: GO TO NEXT STEP

1. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   WIRE HARNESS STANDARD RESISTANCE SPECIFICATIONS



   Tester Connection	Condition	Specified Condition
   C6-34 - E5-18 (PI)	Always	Below 1 Ω
   E5-18 (PI) - Body ground	Always	10 kΩ or higher
   C6-1 - Body ground	Always	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

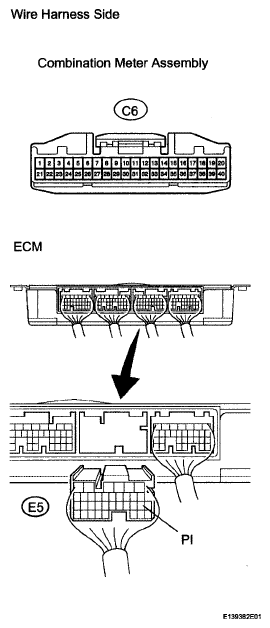

Fig 3: Identifying Combination Meter Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
