Front Door Lock: Components

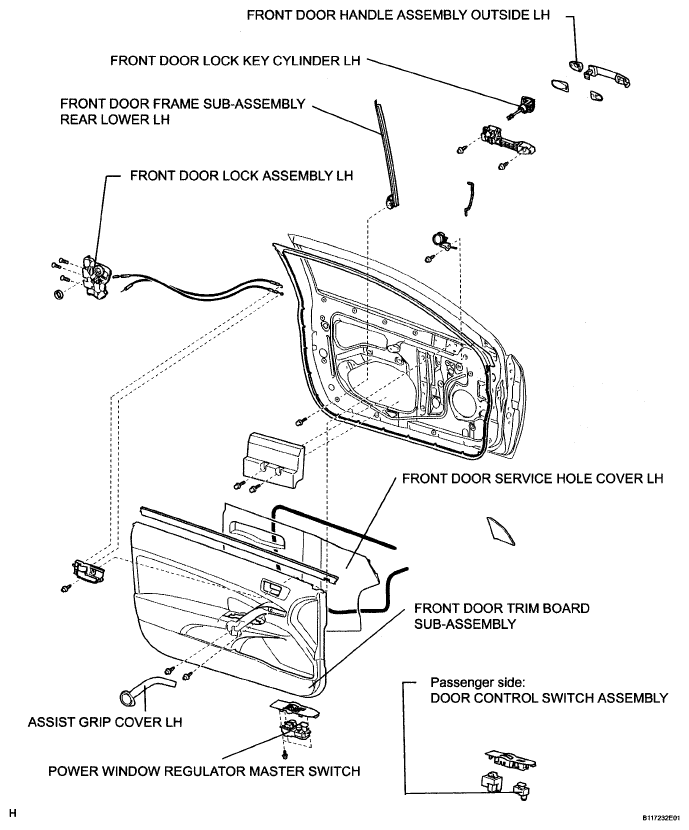

Fig 1: Identifying Front Door Lock Components

G04867214

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
