Brake Actuator Components: Components

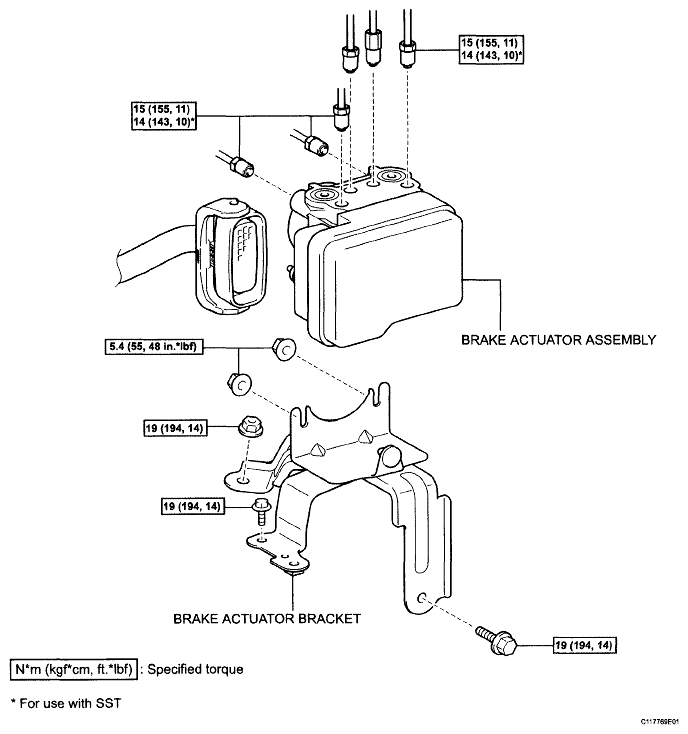

Fig 1: Identifying Brake Actuator Components With Specifications
G04868667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
