Rear Axle Hub Bolt: Components

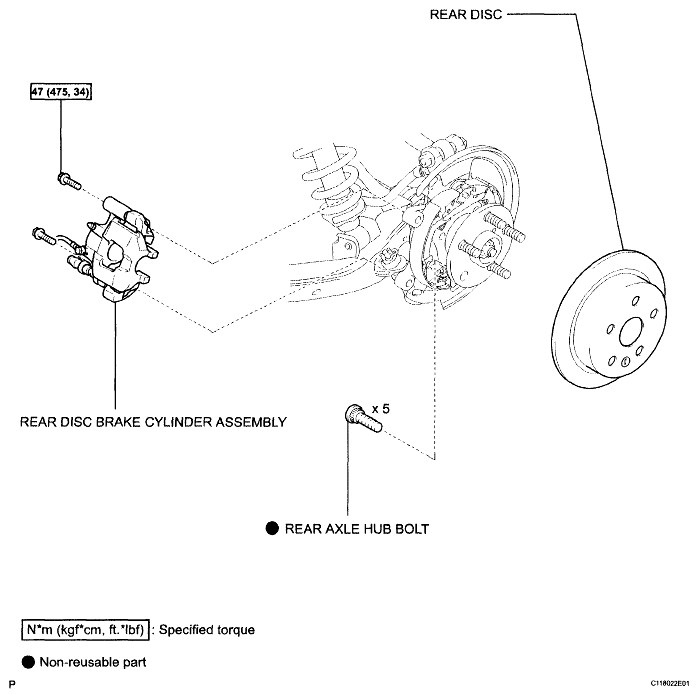

Fig 1: Identifying Rear Axle Hub Bolt Components With Specification
G04868352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
