Fuse Block

Engine Room R/B, J/B - Engine Compartment Left:

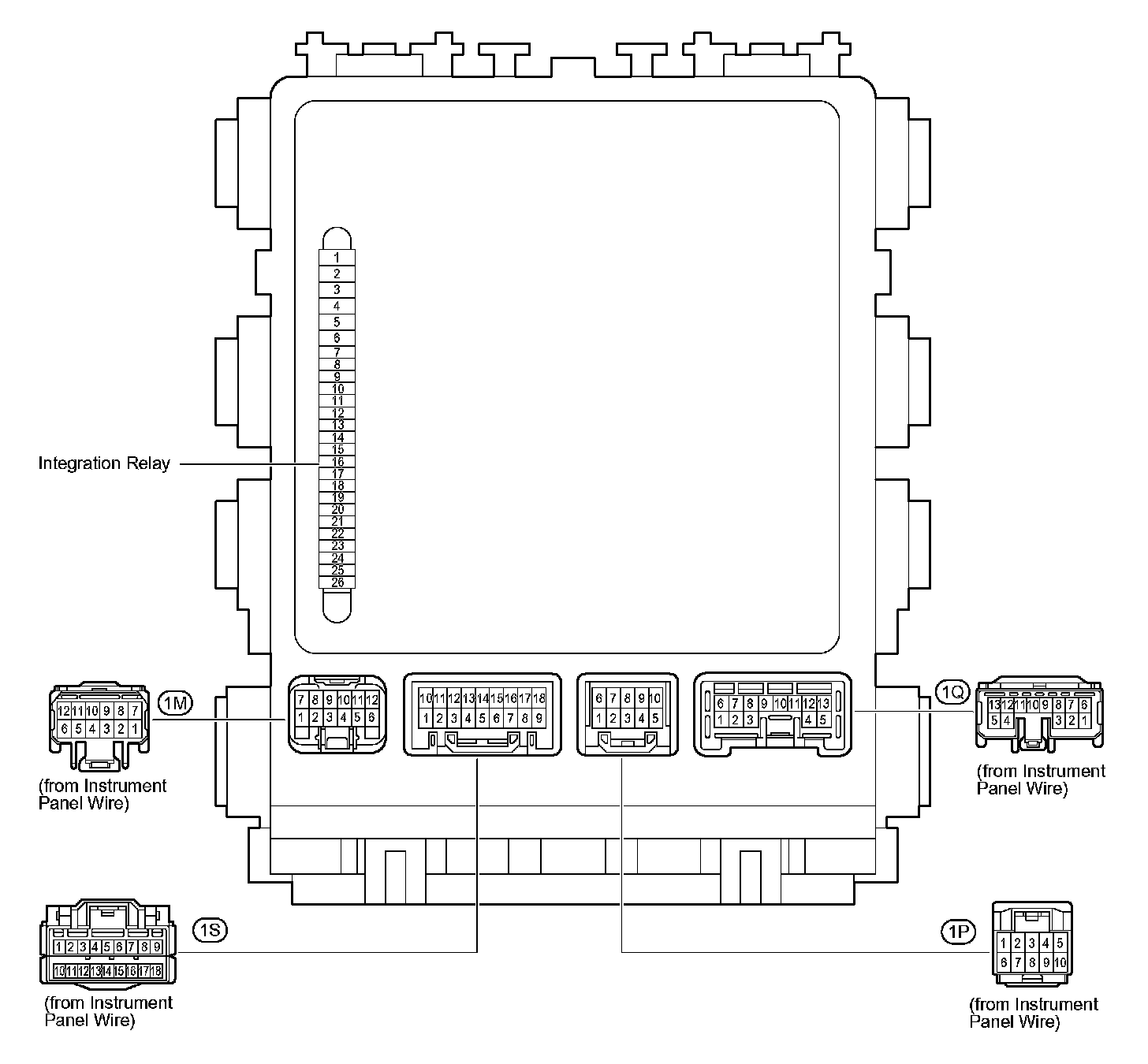

Instrument Panel J/B - Lower Finish Panel:



Instrument Panel J/B - Lower Finish Panel:



Junction Connector - Behind Of The Combination Meter:
