Scion
>>
2008
>>
tC Base, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
2AZ-FE Charging
>>
Charging System
>>
Parts Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parts Location

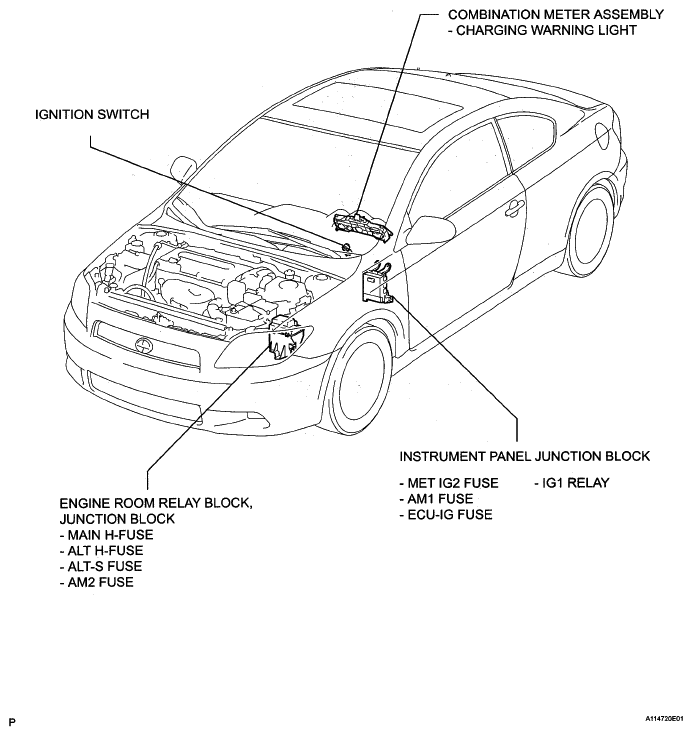

Fig 1: Identifying Charging System Parts Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

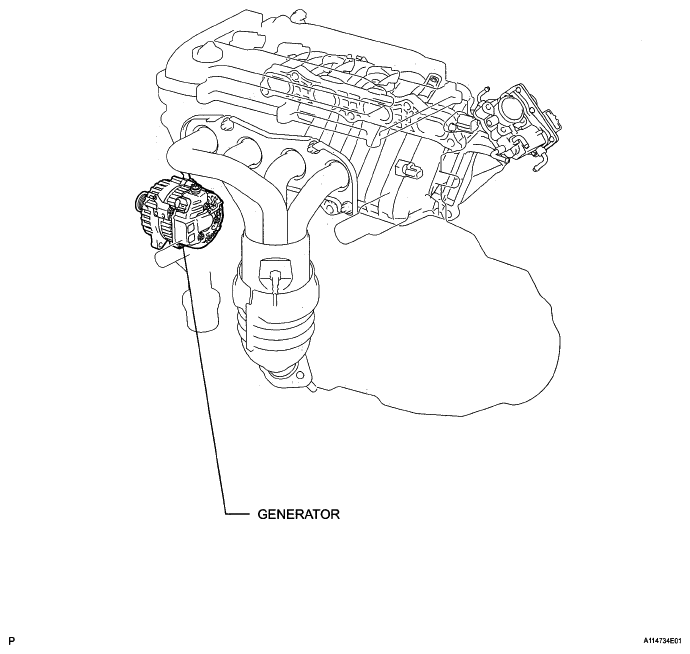

Fig 2: Identifying Charging System Parts Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
